BOM # Description
HERO 120H
(99400)
HERO 150H
(99401)
HERO 200H
(99402)
HERO 150H-EC
(463253)
HERO 250H-EC
(463254)
1 MOTOR 428469 428515 428516 428517 428518
2 CELL 414708 414709 414710 414709 414710
3 MERV1 (pack of 2) 428519 428520 428521 428520 428521
4 MERV8 (pack of 2) 428525 428526 428527 428526 428527
5 CAPACITOR 411222 410012 410012 N/A N/A
6 PC board 428252 428252 428252 428252 428252
7 Door Switch 410867 410867 410867 410867 410867
8 Transformer 411963 411963 411963 411963 411963
9 Speed switch 410213 410213 410213 410213 410213
10 Metal Collar 428674 414930 414930 414930 414930
11 Plastic collar with Damper 414746 414747 414747 414747 414747
12 Door 428541 428542 428542 428542 428542
13 damper 428543 428543 428543 428543 428543
Fuse, 8 AMP, 250 VAC 3AB 3AG 414736 414736 414736 414736 414736
Temp probe 40286 40286 40286 40286 40286
Damper Door, Defrost 428544 428544 428544 428544 428544
Kit,chain 404261 404261 404261 404261 404261
Kit, Wall Bracket 428545 428546 428546 428546 428546
Wiring Diagram 428481 428481 428481 428482 428482
Installation Manual 428486 428486 428486 428486 428486
Filter MERV13 (pack of 2) NA 428548 428549 428548 428549
Filter HEPA (pack of 2) NA 428551 428552 428551 428552

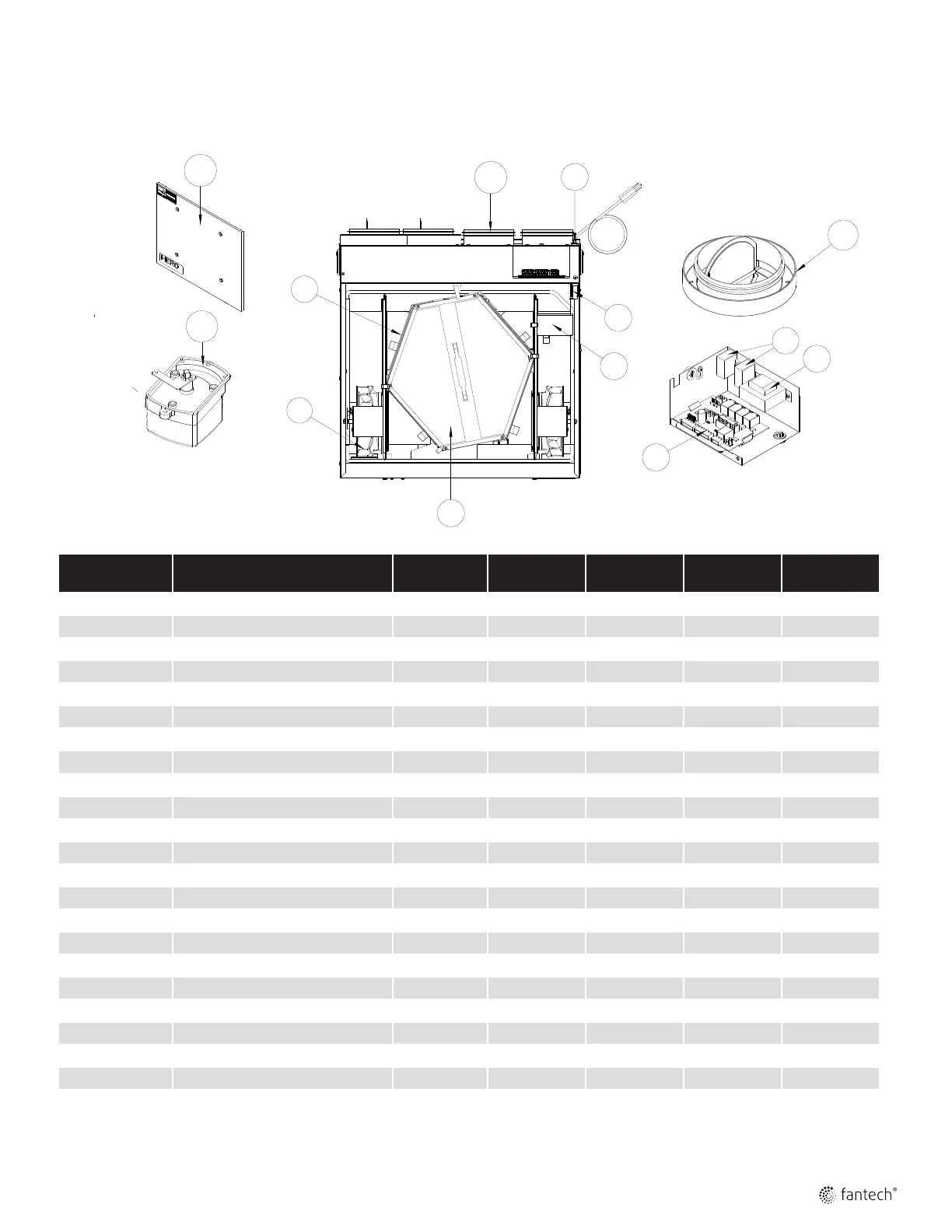

PARTS LIST
