MOUNTING OPTIONS
LOCATION
• Must be located in a conditioned
space where it will be possible to
conveniently service the unit.
• Typically located close to the
outside wall where the hoods will be
mounted.
• A utility room when basement is not
possible.
Attic installation must meet the
following conditions:
• Attic temperature must be above
freezing conditions at all times and
for best performance should be
12°C (54 °F).
• The attic is easily accessible
for equipment maintenance and
inspection.

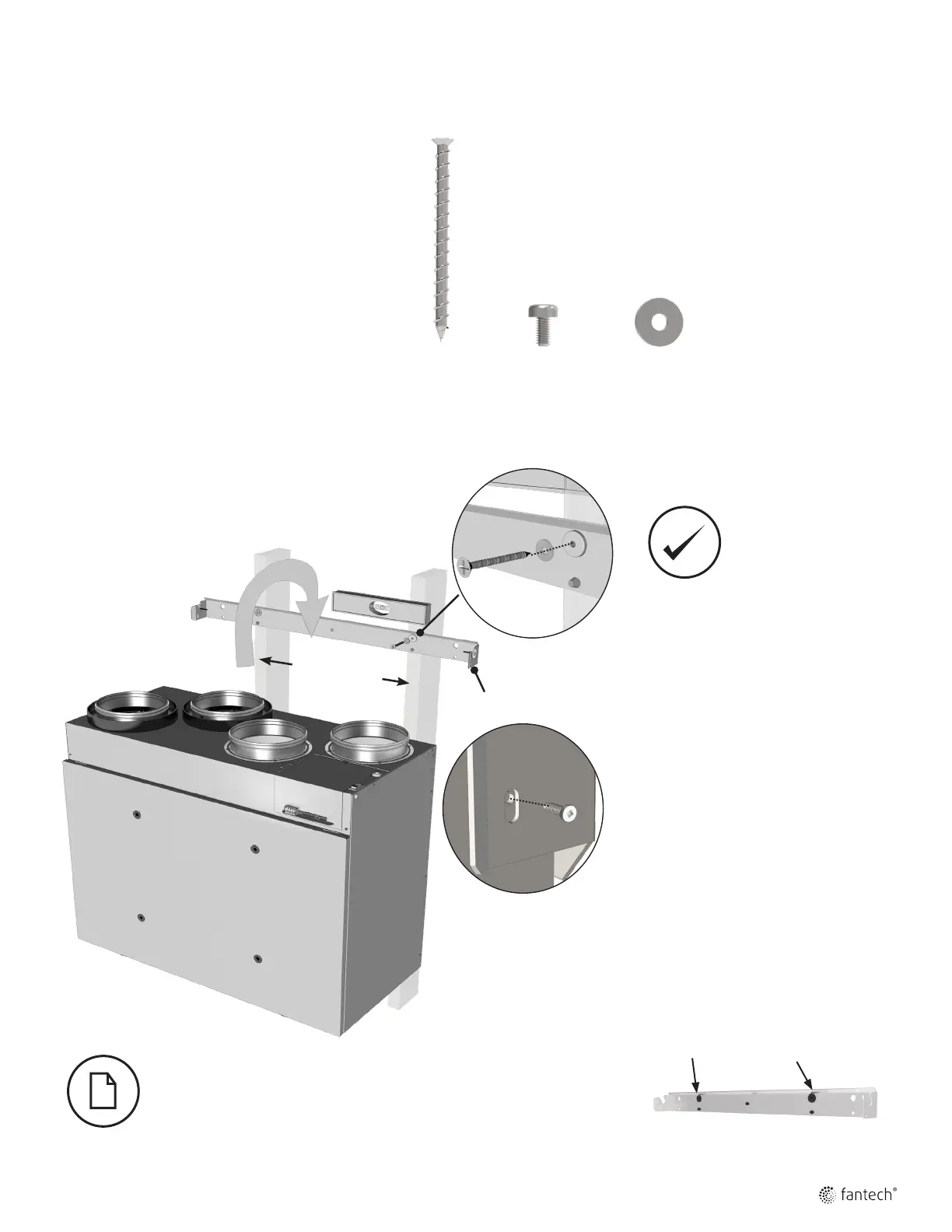

WALL MOUTING BRACKET INSTALLATION
Safety screws
(included)
16” (406mm)
INSTALLATION WALL
MOUNTING KIT INCLUDES:
A
X2
B
X2
C
X2
IIf using the 24" spacing available for the HERO 150, 200, 150-EC and 250-EC, move the vibration isolators.
