17.2.1 Name plate
TYPE:
CAPAC INS.CL.
WEIGHT 57 kg
F
816568
1,39 A
50 Hz
400 D V~
P2=0,37 kW
1360
IP54
MUB/T 042 400DV
33655
2011-02-11
min¹
/
/
MADE IN GERMANY
1
3
4
6
7
2
1 Type designation
2 Article number/ Production number / Manufac-turing date
3 Voltage / Frequency / Motor output
4 Current / Speed (max./min.) / Output
6 Registration Ukraine, Russia / Weight / Protec-tion class
7 Capacity / Insulation class, motor

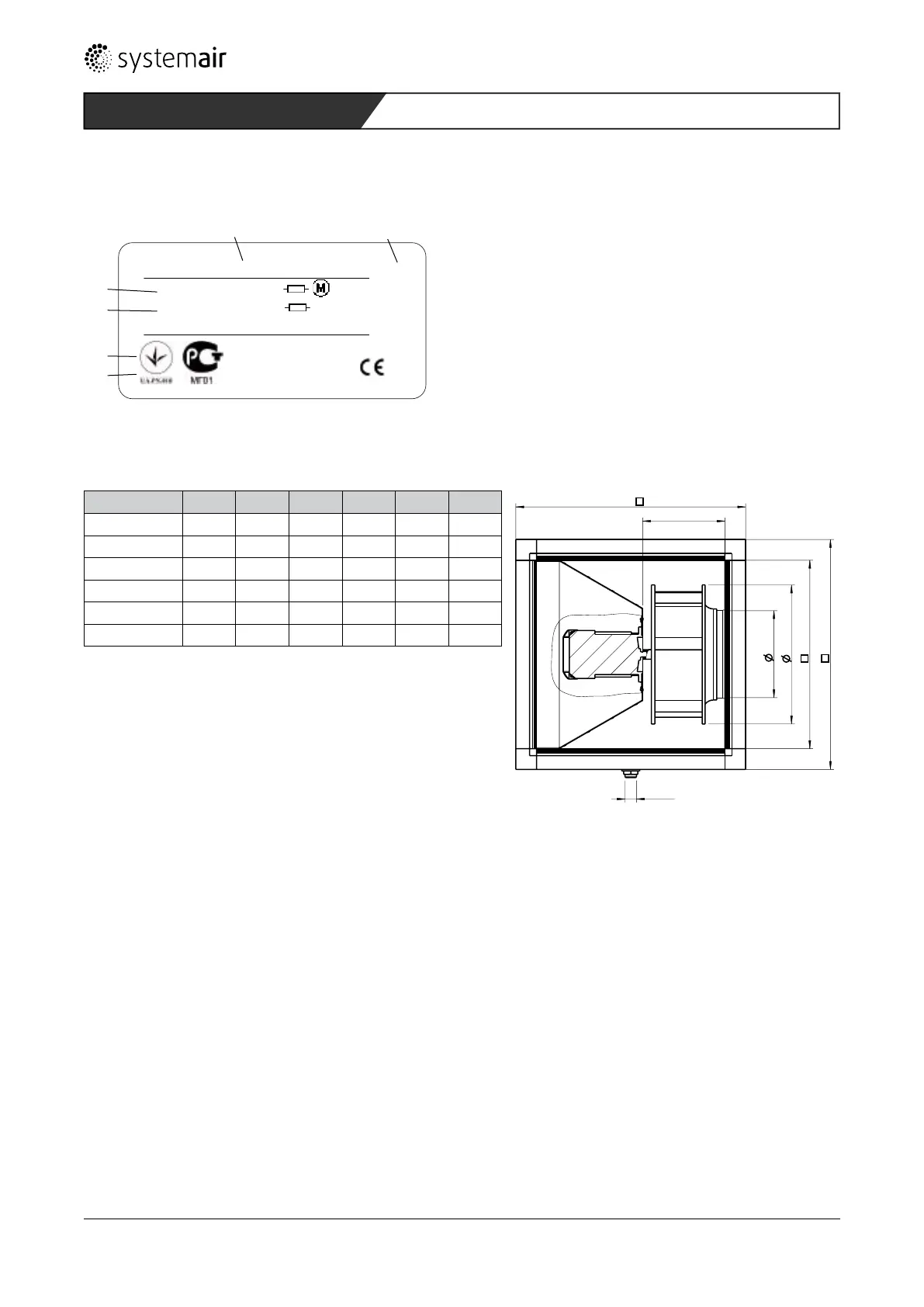

Fig. 5: Name plate MUB/T
17.2.2 Dimensions
BG A B C øD øE F
E
D
C
B
F
1 Zoll
042 400 670 670 548 404 253 300
042 450 670 670 548 454 286 300
062 500 800 800 548 504 321 300
062 560 800 800 718 570 361 321
062 630 800 800 718 635 407 321
100 630 1000 1000 918 635 389 378
Table 2: Dimensions of multiboxes MUB/T
