SystemAir MUB-EC Series

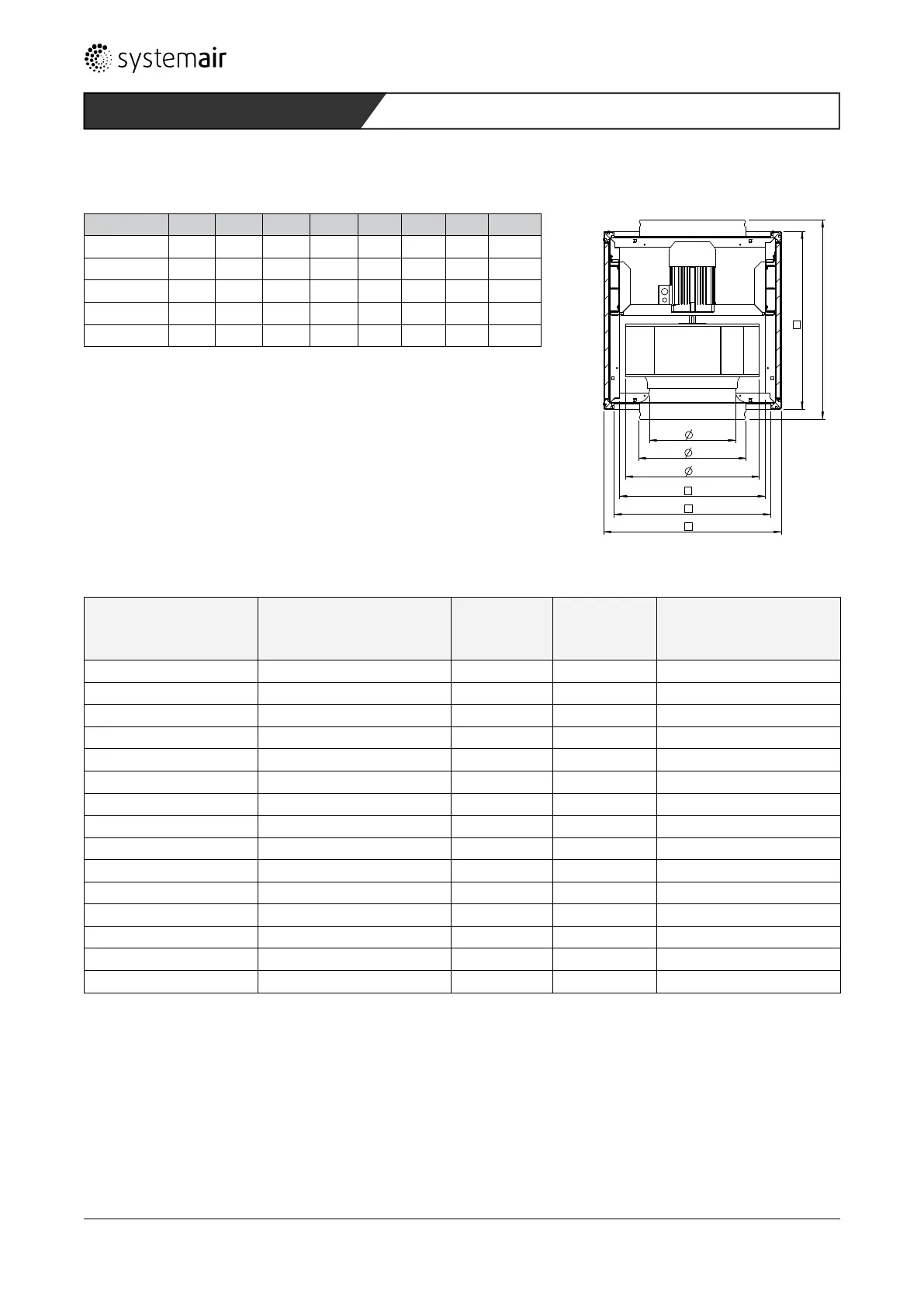

17.3.2 Dimensions
BG A B C D øE øH øI J max.
A
B
E
I
C
D
H
J
042 400 670 670 590 548 410 400 289 783
042 450 670 670 590 548 454 400 289 783
062 500 800 800 720 676 520 560 364 915
062 560 800 800 720 676 570 560 364 915
062 630 800 800 720 676 650 630 456 915
Table 3: Dimensions of multiboxes MUB/F
17.3.3 Erection conditions
Type designation Temperature-time
class to DIN EN
12101-3
Snow-load
class
Wind load Erection conditions
MUB/F 042 400 D4-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 400 D6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 400 D4-6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 450 D4-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 450 D6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 450 D4-6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 500 D4-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 500 D6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 500 D4-6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 560 D4-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 560 D6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 560 D4-6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 630 D4-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 630 D6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
MUB/F 042 630 D4-6-HT F400 (120) - - IB, AB, IF, VA, HA, LB
Table 4: Erection conditions for MUB/F multiboxes
Legend for the erection conditions in Table 4
IB Can be positioned in combustion area VA Suitable for vertical positioning
AB Can be positioned outside the combustion area HA Suitable for horizontal positioning
IF Can be positioned outdoors LB Suitable for fan operation
38
Description
Multibox MUB - V 1.0
