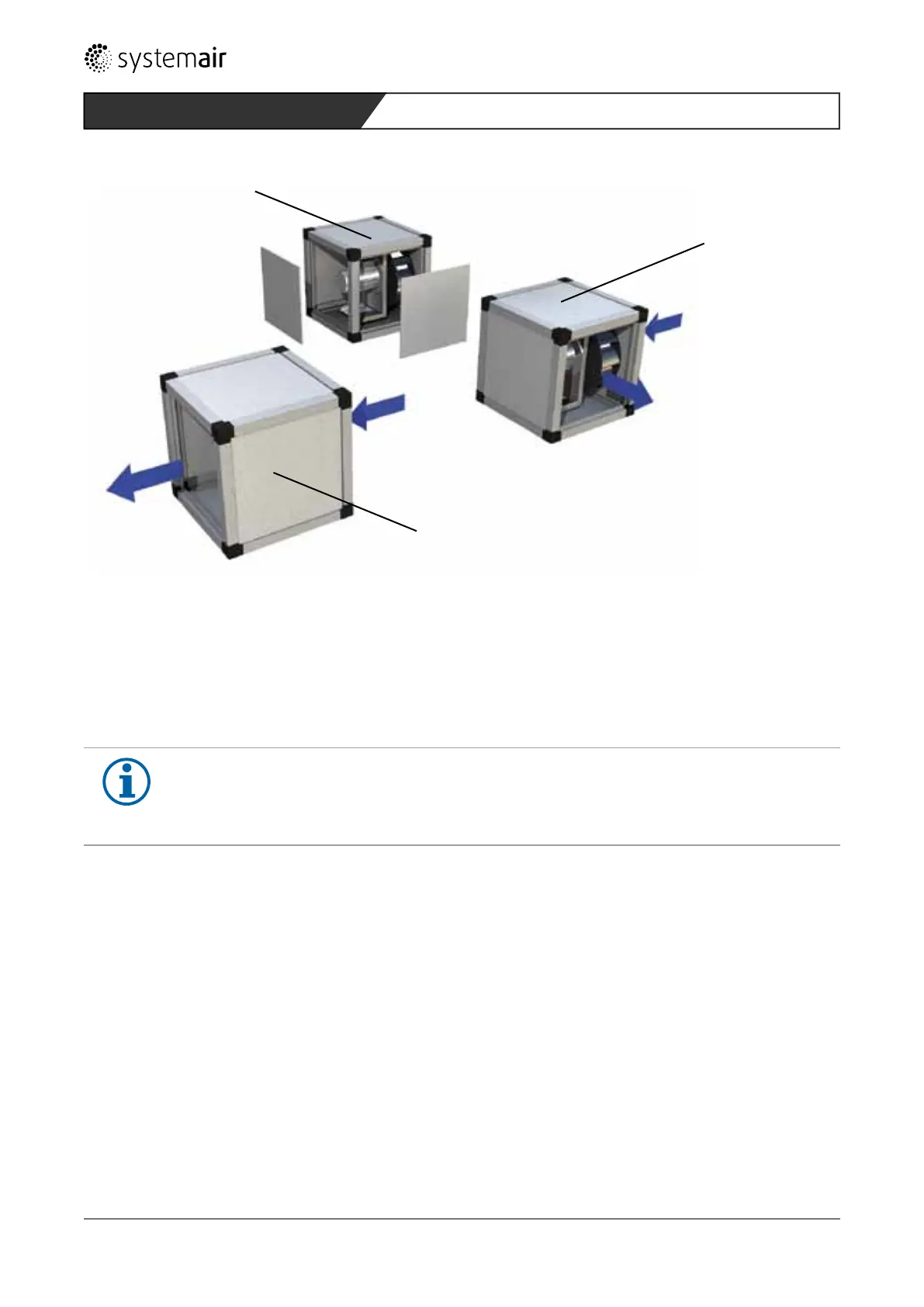

Fig. 10: MUB with various possibilities of blow-out
Legend
1 Multibox with straight air throughow (factory assembly)
2 Multibox with angled air throughow
3 Change of blow-out direction
NOTE
Speciality: MUB/T
The motor of the MUB/T multibox must not be in the air ow. For this reason, a straight air throughow is not
possible.
