6
| Installation
5.2 Where/how to install
SAVE VTC 300 are meant for indoor installation in a heated space. Mount the unit on a vertical flat surface. It’s impor-
tant that the unit is completely levelled before it is put into operation.
Place the unit preferably in a separate room (e.g. storage, laundry room or similar).
When choosing the location it should be kept in mind that the unit requires maintenance regularly and that the inspec-
tion door should be easily accessible. Leave free space for opening the door and for taking out the main components
(figure 1).
The outdoor air intake of the building should if possible be put in the northern or eastern side of the building and away
from other exhaust outlets like kitchen fan exhausts or laundry room outlets.
5.3 Installing the Unit
The unit must be installed in the following position (figure 3). It is important that the unit is completely vertical in order
for the condensation drainage to work properly.

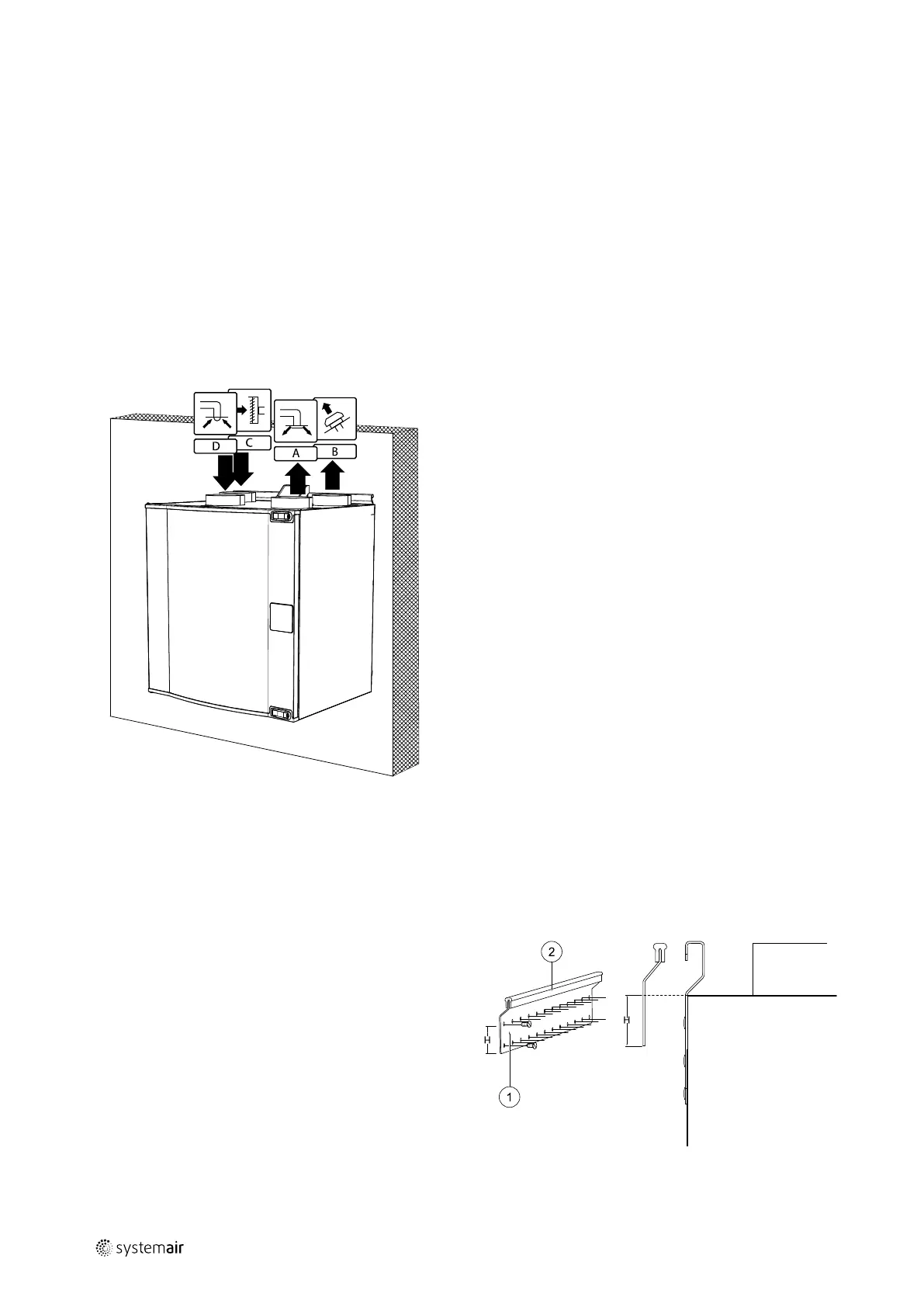

Fig. 3 Installation position (right hand unit)
5.3.1 Installation Procedure SAVE VTC 300
1 Prepare the surface where the unit is to be mounted.
Make sure that the surface is flat, levelled and that it
supports the weight of the unit. Perform the installa-
tion in accordance with local rules and regulations.
2 Fit the mounting bracket (pos. 1) with the anti vibra-
tion pad (pos. 2) to the wall with enclosed screws.
Use appropriate holes to screw the bracket firmly to
the wall. Bottom side of bracket should be 40 mm (H)
below top of unit position.
211464 | A001
