Mainboard

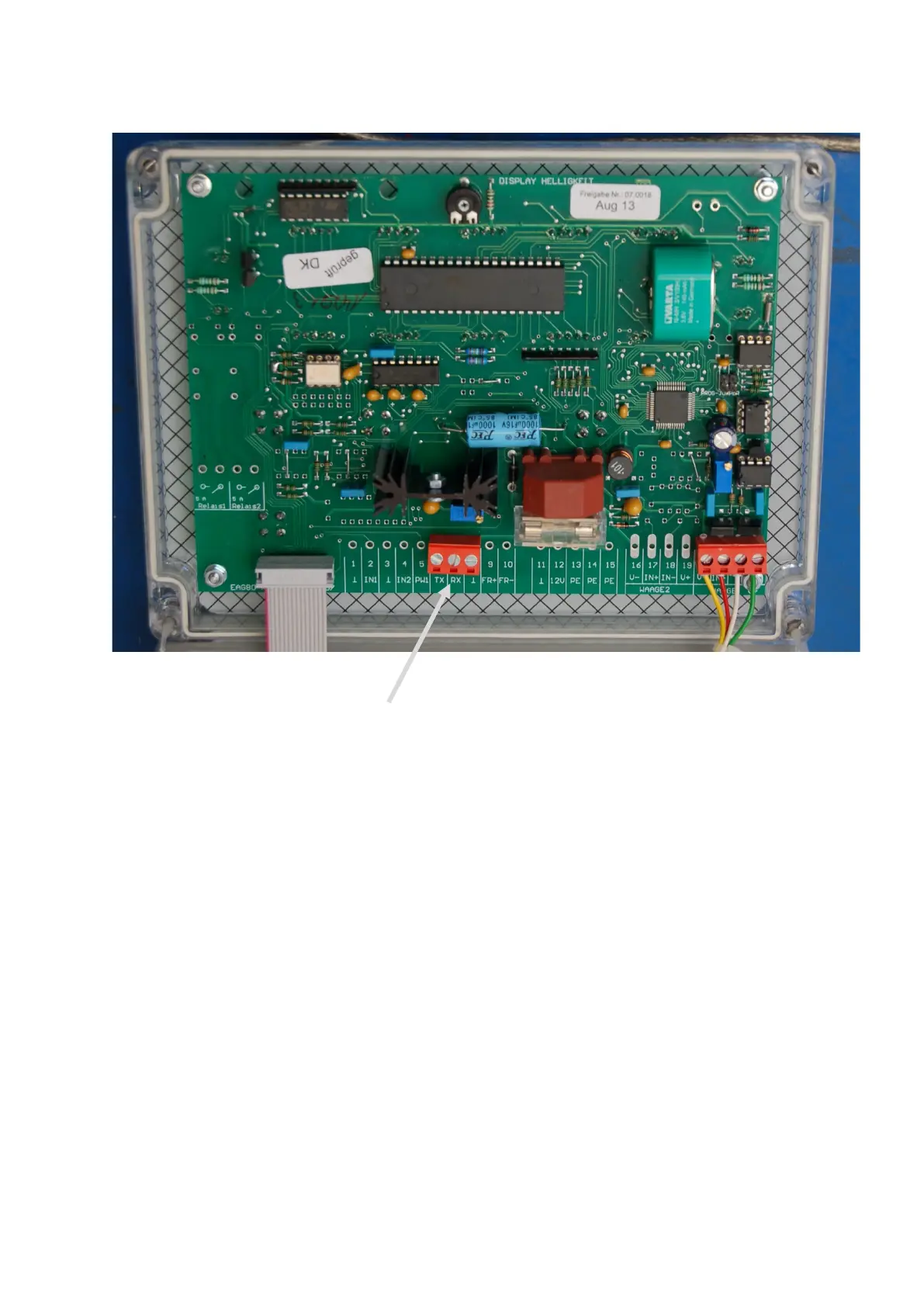

Serial interface
7.1.1 Serial Interface
Here you can connect e.g. a large-size display.
TX (terminal 6) = transmit line
RX (terminal 7) = receive line
Gnd (terminal 8) = ground line
