M503 Series Wheelchair Scales Technical Manual
- 7 -
Installation

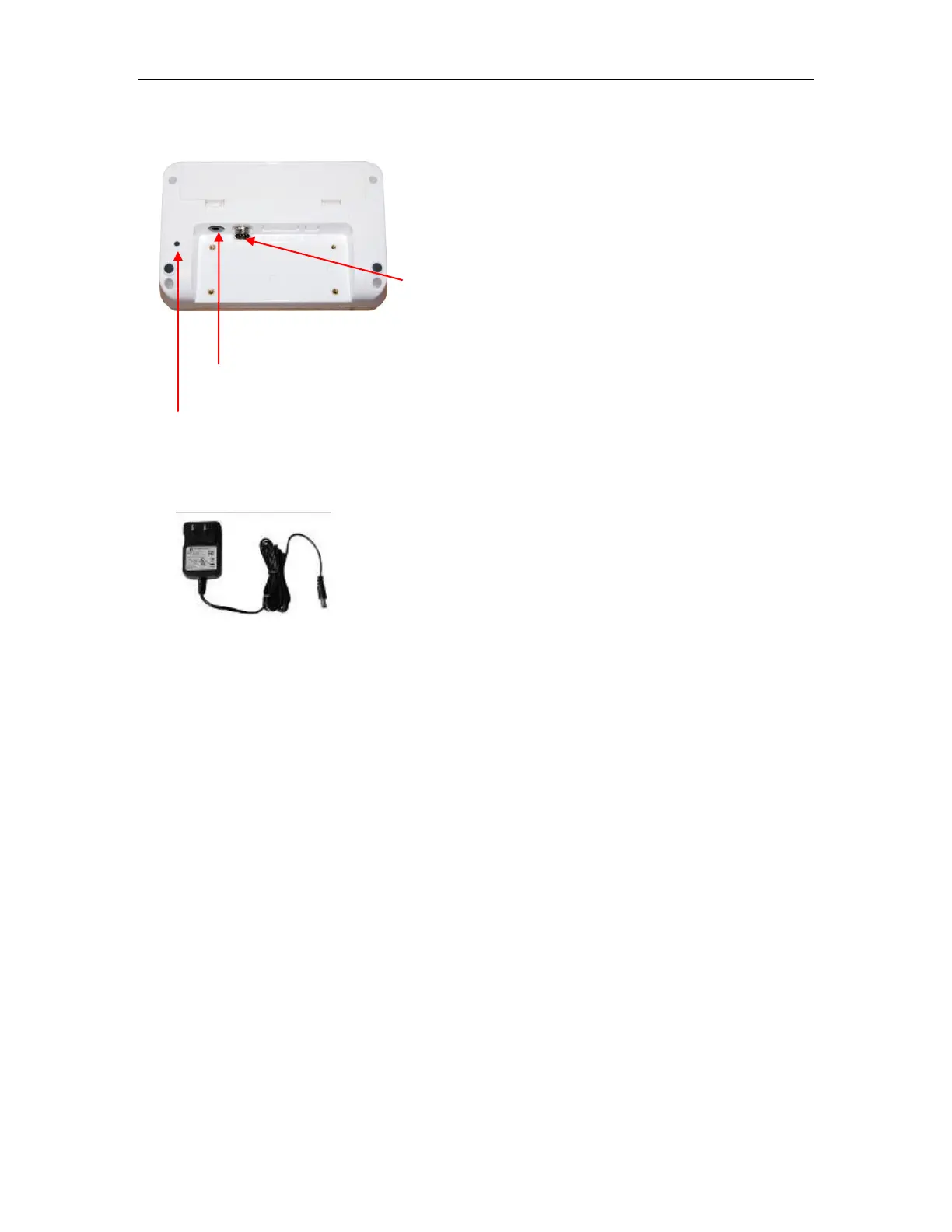

Load cell Connecter
Adaptor Jack
Calibration switch
 Place the scale on a table.
 Connect the adaptor pin in to the scale adaptor jack. Adaptor jack is
locating, rear side of the scale.
 Adaptor connects into your AC power socket.
Pluggable equipment must be installed near
an easily accessible socket outlet with a
protective ground/ earth contact.
 Display will be show the version number and will
be starting self checking.
 After self checking, display will be come to normal weighing mode.
 Warm-up time of 15 minutes stabilizes the measured values after
switching on.
 Calibrate with exact calibration weights, minimum 1/3 of the scale capacity
want to use for calibration. For calibration see details in parameter.
Then you can start your operation
