T-Verter E2-201-*1 Series User Manual

25

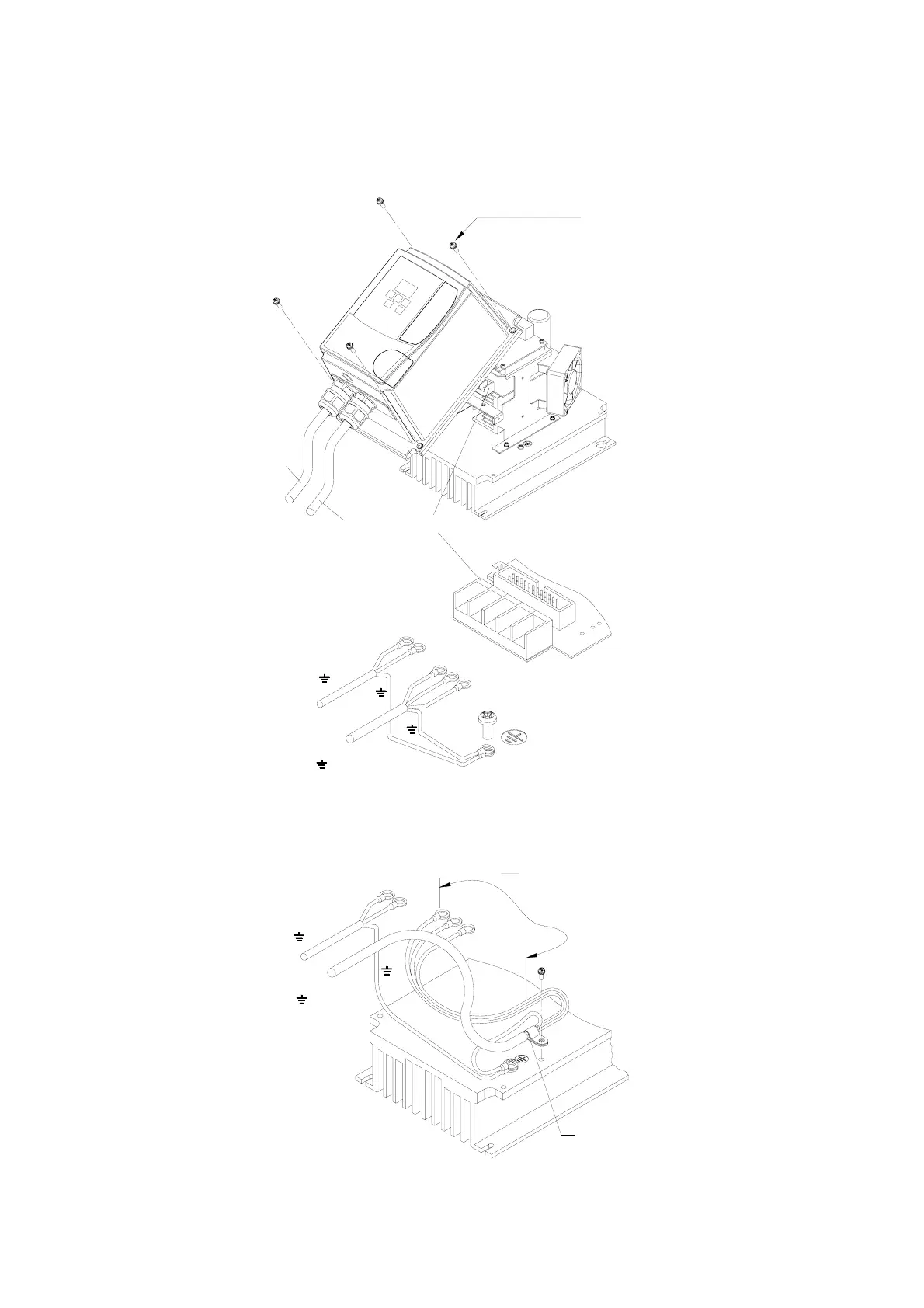

E2-2P2/2P5/201- -N4 (WITHOUT SWITCH TYPE ) CONNECTIONS & EMC MOUNTING:
T1
L2
L1
T2
T3
Motor cable
,T1,T2,T3
L1,L2,
Power supply
cable
200mm
Cutting Length
of cable shield
Cable shielding
connected to
ground clamp
EMC MOUNTIING
Length: Max 2M
Note:
TM2 Remote control
cable should be connect
to ground screw
T3
L1
L2
T2
T1
L1
L2
T1
T2
T3
4 x Outer cover screw
CONNECTIONS
,T1,T2,T3
Motor cable
TM1 terminals
Power supply
cable
L1,L2,
Motor cable
Power
supply
cable
T1
L2
L1
T2
T3
Motor cable
,T1,T2,T3
L1,L2,
Power supply
cable
200mm
Cutting Length
of cable shield
Cable shielding
connected to
ground clamp
EMC MOUNTIING
Length: Max 2M
Note:
TM2 Remote control
cable should be connect
to ground screw
