32

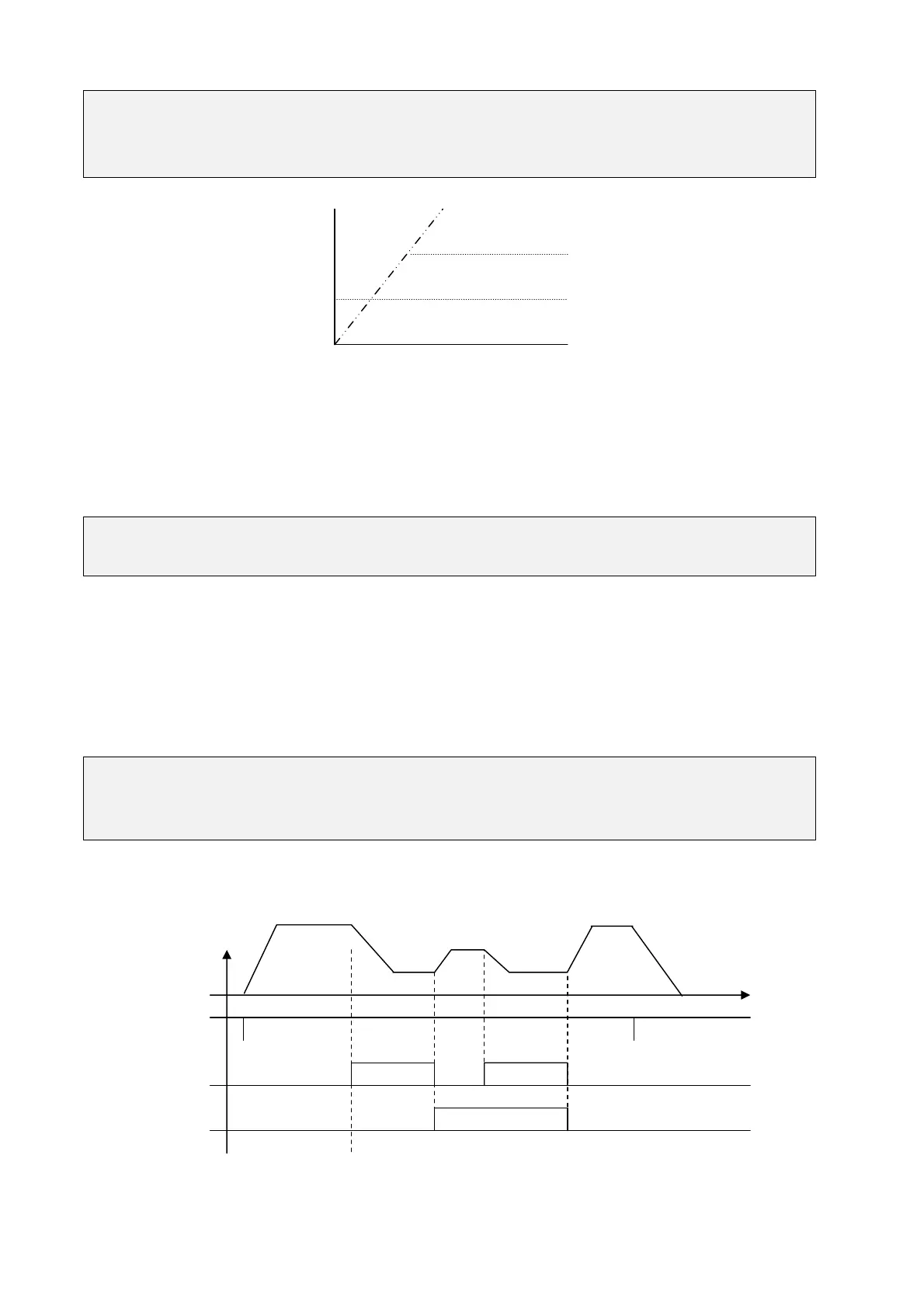

F_06: frequency upper limit range=1~120Hz
F_07: frequency lower limit range=1~120Hz
(1~200Hz with CPU versionv1.9 and above)
F_06: Factory setting refers to F_25.
NOTE:
If F_07 = 0 Hz, The frequency instruction is equal to 0Hz, the inverter will
stop at 0 speed.
If F_07 > 0 Hz, The frequency instruction F_07, the inverter will
output a minimum speed according to the setting in F_07
F_08: SP1 frequency = 1 ~ 120Hz(1~200Hz:CPU version v1.9 and above)
F_09: JOG frequency = 1 ~ 120Hz(1~200Hz:CPU version v1.9 and above)
1. When F_19 or F_20 = 2 and the multifunction input terminal is ON, the inverter operates at sp1
frequency (F_08)
2. When F_19 or F_20 = 1 and the multifunction input terminal is ON, the inverter operate at jog
frequency (F_09)
3. The priority of reading frequency setting is: Jog→ Sp1→Keypad setting or external frequency
signal using a speed pot.
F_10: Start / Stop Control
= 0: Keypad
= 1: Terminal (TM2)
NOTE: When F_10=1 (Terminal Control), emergency stop on the Keypad is enabled.
When F_10=1, please refer to the descriptions of F_23/24, in order to avoid the damage to the
human and the machine.
Internal
frequency
signal
(NOTE)
Frequency setting signal
F_06 (freq. Upper limit)
F_07 (freq. Lower limit)
Time
Hz
F_10=1
or =0
F_09=10Hz
F_19=1
F_08=30Hz
F_20=2
ON OFF
OFF
ON OFF
ON
OFF
OFF ON
OFF
To Next Page
