Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 14
• DMA 850 & Q800 DMA Air Chiller Panel (P/N 986400.901)
• Consists of filter/dryer/regulator assembly and a U-shaped flow indicator.
• Compatible with DMA 850 and Q800 DMA models.
• Supports an optional upgrade kit that allows the panel to be used with the Discovery Hybrid Rhe-
ometers (DHR).
• Rev A: Filter/dryer assembly is black in color.
• Rev B: Filter/dryer assembly is silver/gray in color.

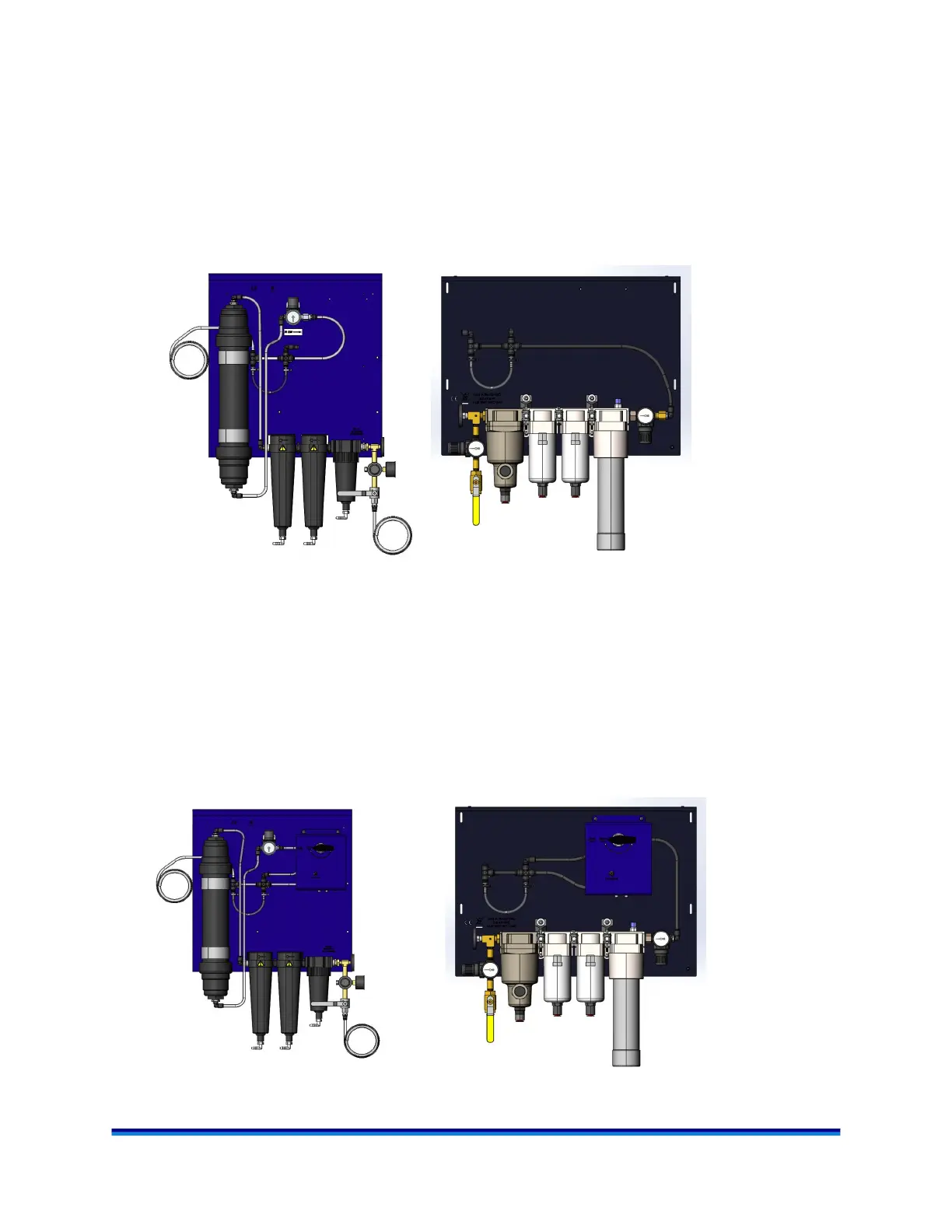

Figure 4 DMA 850 & Q800 DMA Air Chiller Panel (P/N 986400.901). Left: Rev A. Right: Rev B.
• DHR ETC and DMA 850 & Q800 Combined Air Chiller Panel (P/N 405400.901)
• Consists of filter/dryer/regulator assembly and a U-shaped flow indicator.
• Compatible with DMA 850 and Q800 DMA models.
• Supports an optional upgrade kit that allows the panel to be used with Discovery Hybrid Rheome-
ters (DHR).
• Rev A: Filter/dryer assembly is black in color.
• Rev B: Filter/dryer assembly is silver/gray in color.
Figure 5 Combined Air Chiller Panel (P/N 405400.901). Left: Rev A. Right: Rev B.
