TA Instruments DMA 850 User Manual

Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 28
Installing the Rev A Air Chiller Panel or Q800 Air Chiller Panel

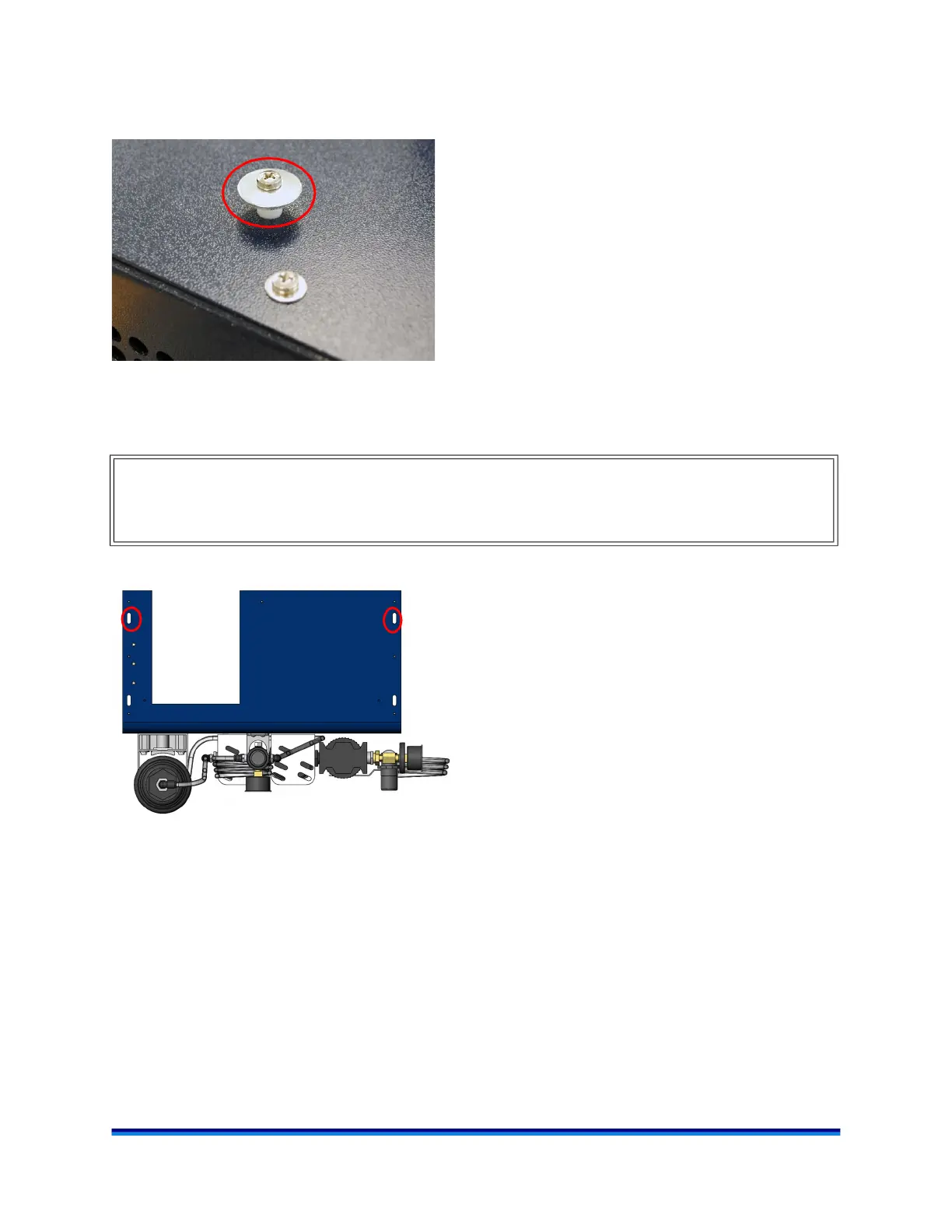

1 Unscrew and remove the two (2) standoffs located on top of the Air Chiller.
Figure 18 Standoff.
2 Place the Chiller Panel on top of the Chiller, aligning the slots on the panel with the standoff holes.
.
Figure 19 Attach the Chiller Panel to the top of the ACS using the two standoffs.
3 Replace the standoffs so that the Chiller Panel is secured to the Air Chiller.
WARNING: The Chiller Panel is too heavy for one person to install safely.
AVERTISSEMENT: Le panneau de refroidissement est trop lourd pour une personne à installer
en toute sécurité.
