Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 29

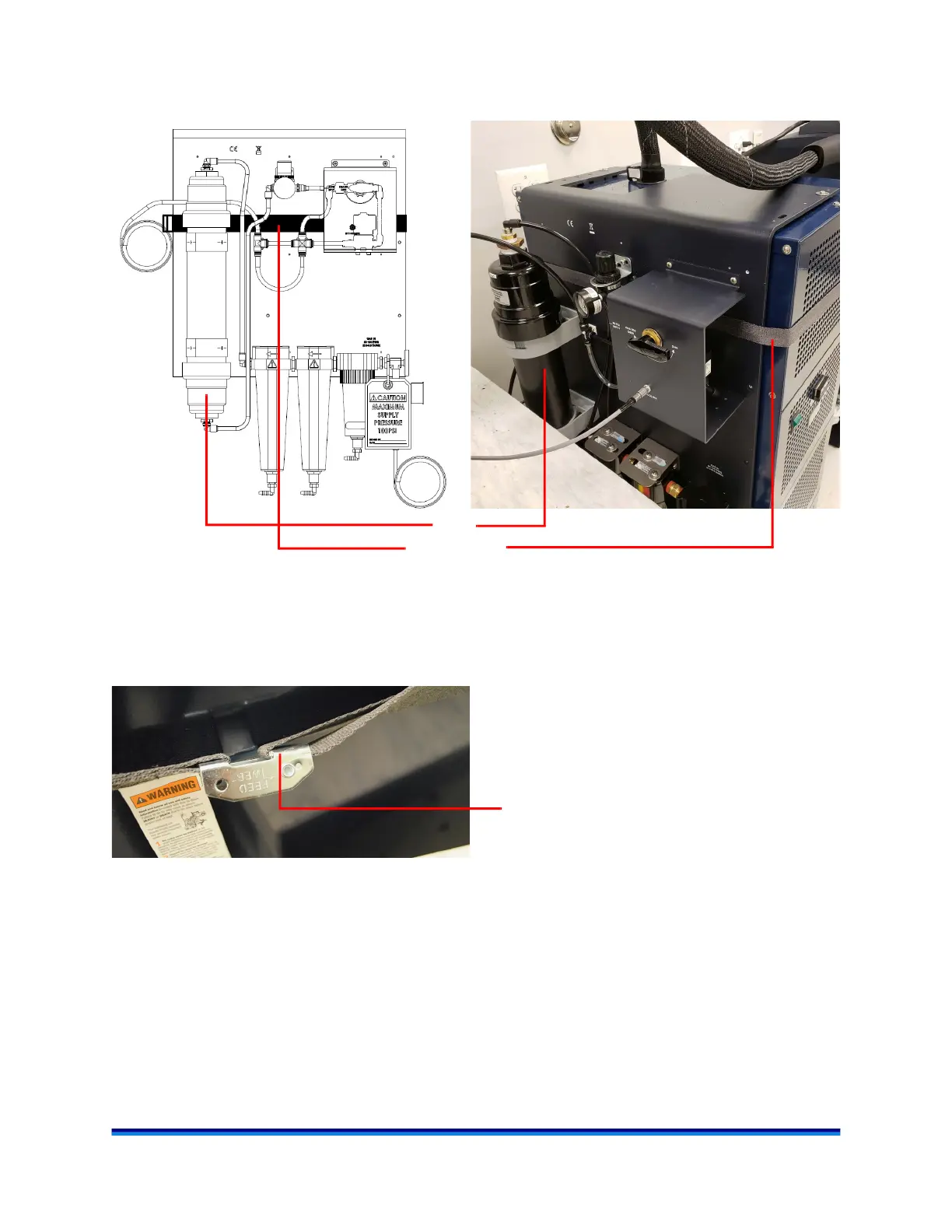

4 Fit the cinching wrap around the Chiller. Thread the strap under the dryer and pressure line tubing as
shown in the figure below. Make sure that the strap is not twisted and that it lies flat against the panel.
Figure 20 Cinching strap.
5 Insert the loose end of the strap into the opening on the underside of the buckle by holding the clamp
open and feeding the strap through. See the figure below. Pull the cinching strap taut to secure the Chiller
Panel.
Figure 21 Cinching strap buckle.
Cinching strap
Dryer
Insert the loose end of the strap here, through
the bottom of the device, and pull the strap
tight to secure.
