Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 30

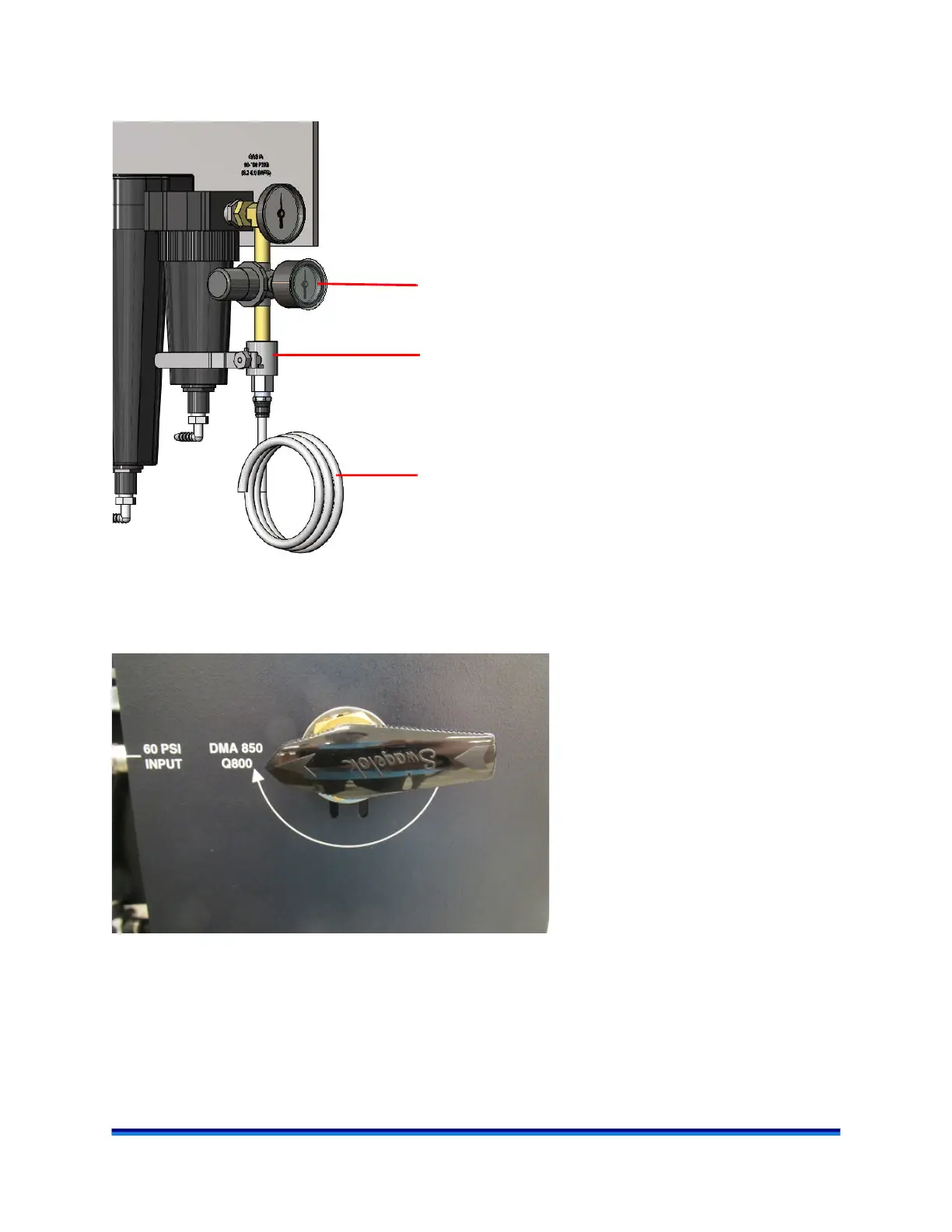

6 Connect the 8 mm Gas IN tube from the Chiller Panel to the air source. An additional 8 mm fitting is
provided with the Chiller Panel, if needed. Ensure that the Quarter-Turn Valve is on the OFF position.
Figure 22
7 Combined DHR/DMA Air Chiller Panel only: Turn the instrument selection knob clockwise until the
knob arrow points to the DMA 850/Q800 label.
Figure 23 Instrument selection knob pointing to DMA850/Q800.
Inlet pressure regulator
Quarter-Turn Valve (in OFF position)
8 mm Gas IN tube - connect to air source
To Next Page
