Air Chiller System (ACS) and Chiller Panel Getting Started Guide for the DMA 850 Page 39

5 Install the Valve and Solenoid Upgrade Assembly onto the ACS using the hardware provided. Then

switch the elbow fitting from the left side of the flow indicator to the right side of the flow indicator.

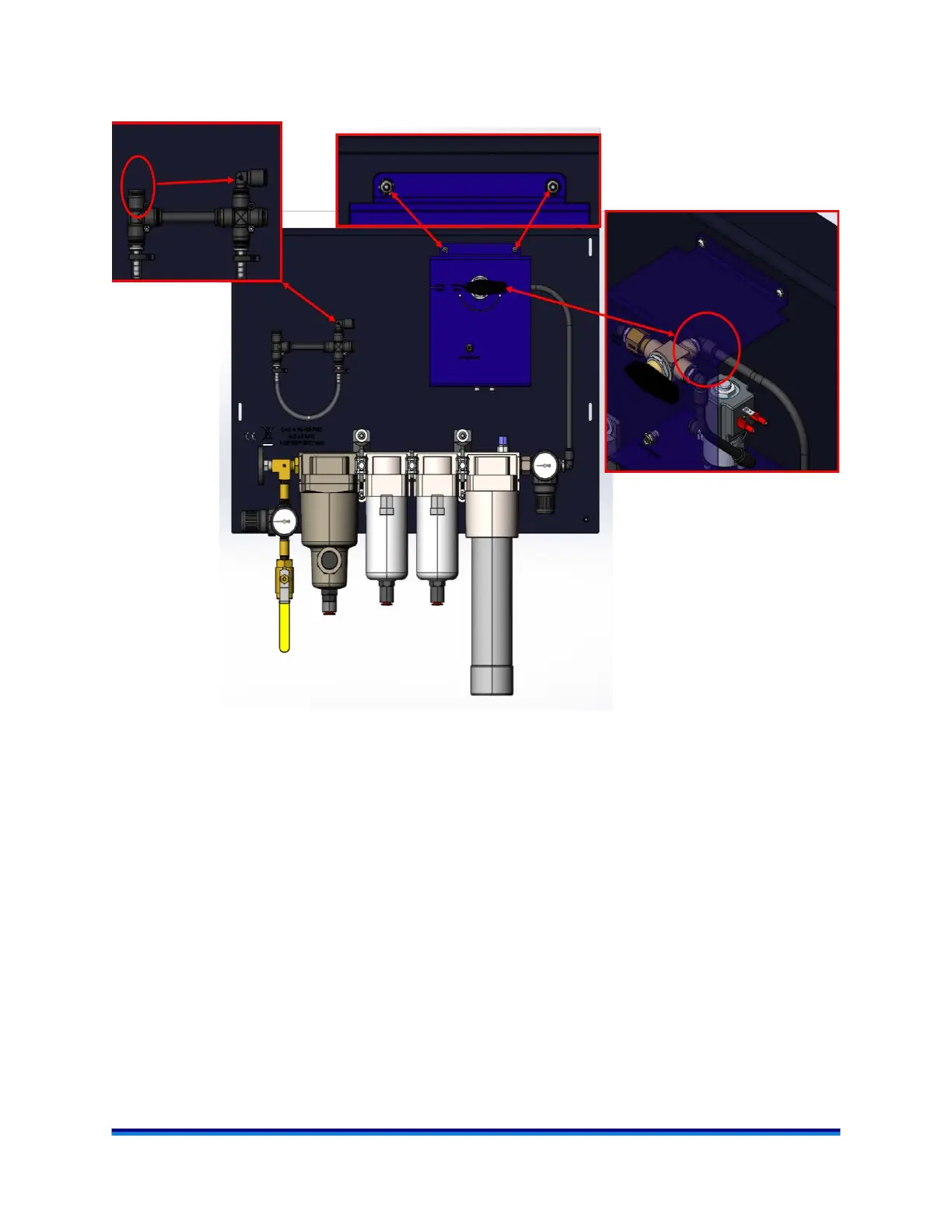

Figure 35 Valve and Solenoid Upgrade Assembly installed.
