Discovery TGA™ Getting Started Guide Page 41
up inside the sample side hole in the cooling plate, being sure not to bend the baffles.

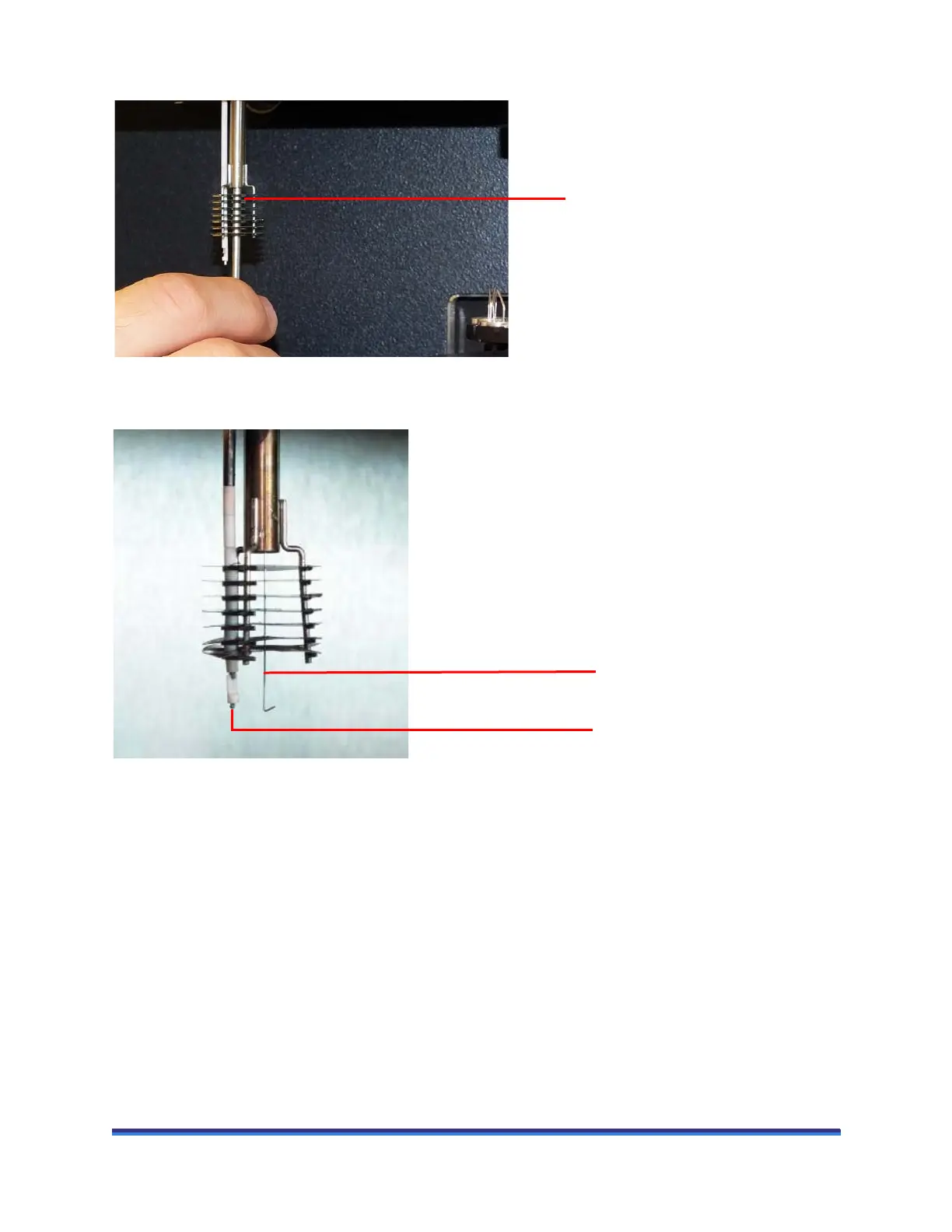

Figure 22 Installing the upper reflective assembly.
5 With the upper reflective assembly in place, carefully install the DTA thermocouple.
Figure 23 Thermocouple installed.
6 Proceed to install the sample hang-down wire as instructed in the following steps. Please note that you
will not need to adjust the length of the upper reflective assembly tube until the sample hang-down wire
has been fully installed.
CAUTION: During installation, take care not to bend the hang-down wires or damage the hang-
down loops.
MISE EN GARDE: Pendant l'installation, prenez soin de ne plier les fils suspendus et de ne pas
endommager les boucles suspendues.
7 Placing a finger under the upper reflective assembly, push the tube up slowly until it stops moving; be
careful not to bend the baffles.
8 Locate the sample hang-down wire and the sample hang-down installation tool (shown below), which
Be careful not to bend these
baffles
Sample hang-down wire
Thermocouple
