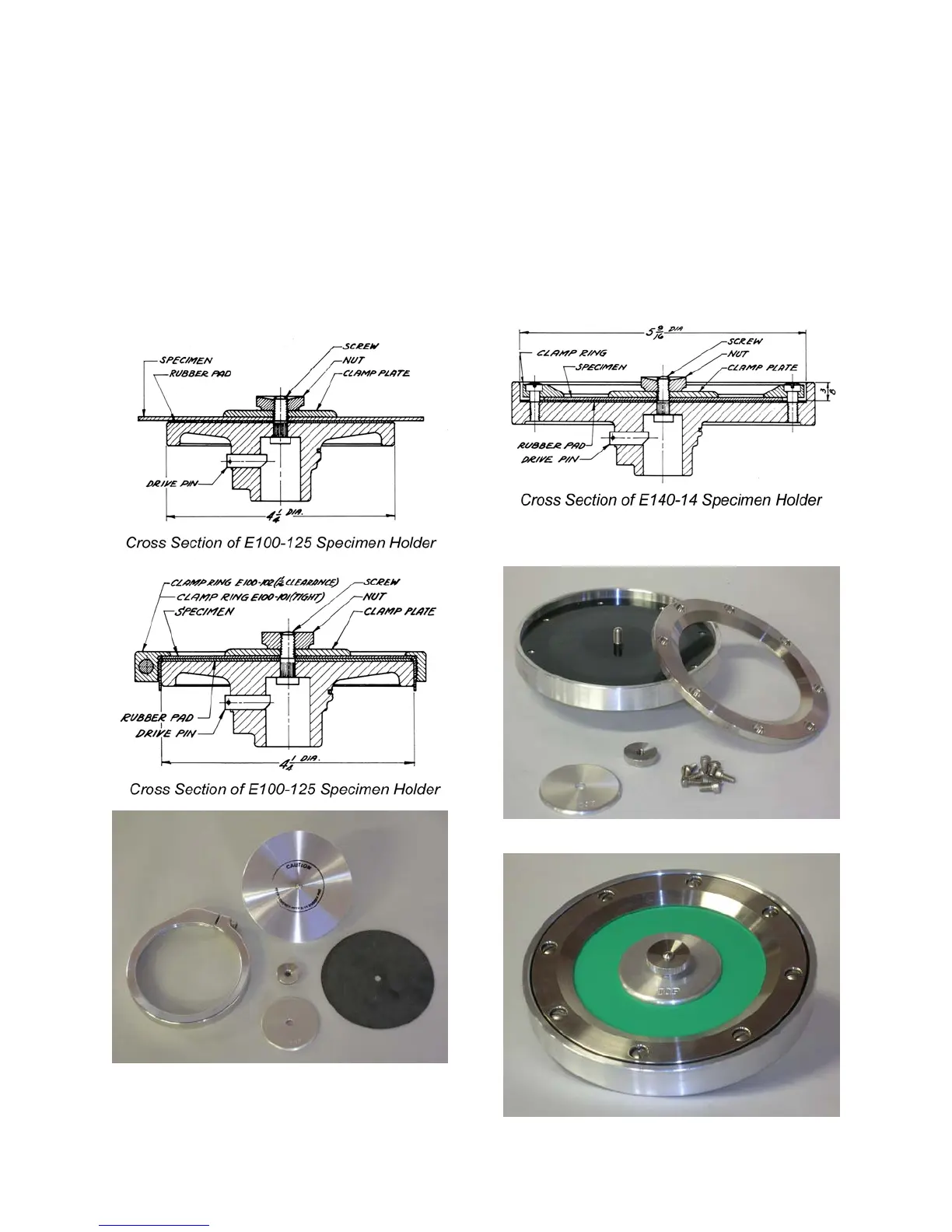

Specimen Holder (E100-125)
The specimen table equipped with the Abraser
(E100-125) has been designed to accommodate
most materials less than 6.35 mm
(0.25 inch)
thick. Unless optional accessories are utilized, a
6.35 mm (0.25 inch) center hole must be punched
or drilled in the specimen so it can be securely
fastened to the threaded center post.
To secure rigid materials, use the clamp plate
and nut. For flexible materials, also use the
supplied E100-101 specimen clamp ring. A 108
mm
(4.25 inch) diameter rubber pad (S-19) is
provided to ensure a non-slip surface.
Figure 19
Specimen Holder with Ring Clamp
(E140-14)
Rigid specimens that are slightly warped and
less than 6.35 mm
(0.25 inch) in thickness can be
either dry or wet tested using the E140-14 Ring
Clamp Holder. Eight (8) screws are spaced
evenly on the clamp plate, and when tightened,
will correct for slightly warped conditions. This
holder can be furnished with (E140-14-S) or
without (E-140-14-NS) a center clamping screw.
Specimens should be 137 mm
(5.375 inch) in
diameter with a 6.35 mm
(0.25 inch) center hole.
Figure 21
Figure 22
13 5135 / 5155 Operating Instructions ver 1.1
