9. ELECTRICAL CONNECTIONS
Connection of the pump must comply with local electrical codes and be carried out by qualied personnel.
When connecting the pump, the following must be considered:
• Liquid tight power connection required to maintain the Totally Enclosed, IP44 enclosure rating.
Use the supplied thread adapter for exible or armored cable installations.
• Local or national electrical code requirements supersede Taco’s specication.
• Install an electrical disconnect to comply with national electrical code.
• Connection of the power supply electrical cable must be done in a manner that ensures it does not
contact the motor housing and volute of the device, due to potential high temperatures of both.
The pump has built-in over current fuse protection, temperature protection, and basic overvoltage protection. It does
not require additional overload protection devices unless required by local electrical codes. Power supply cabling should
be capable of carrying rated power and be properly fused. Grounding connection is essential for safety and should be
connected rst. Grounding is only meant for pump safety. System piping should be grounded separately.

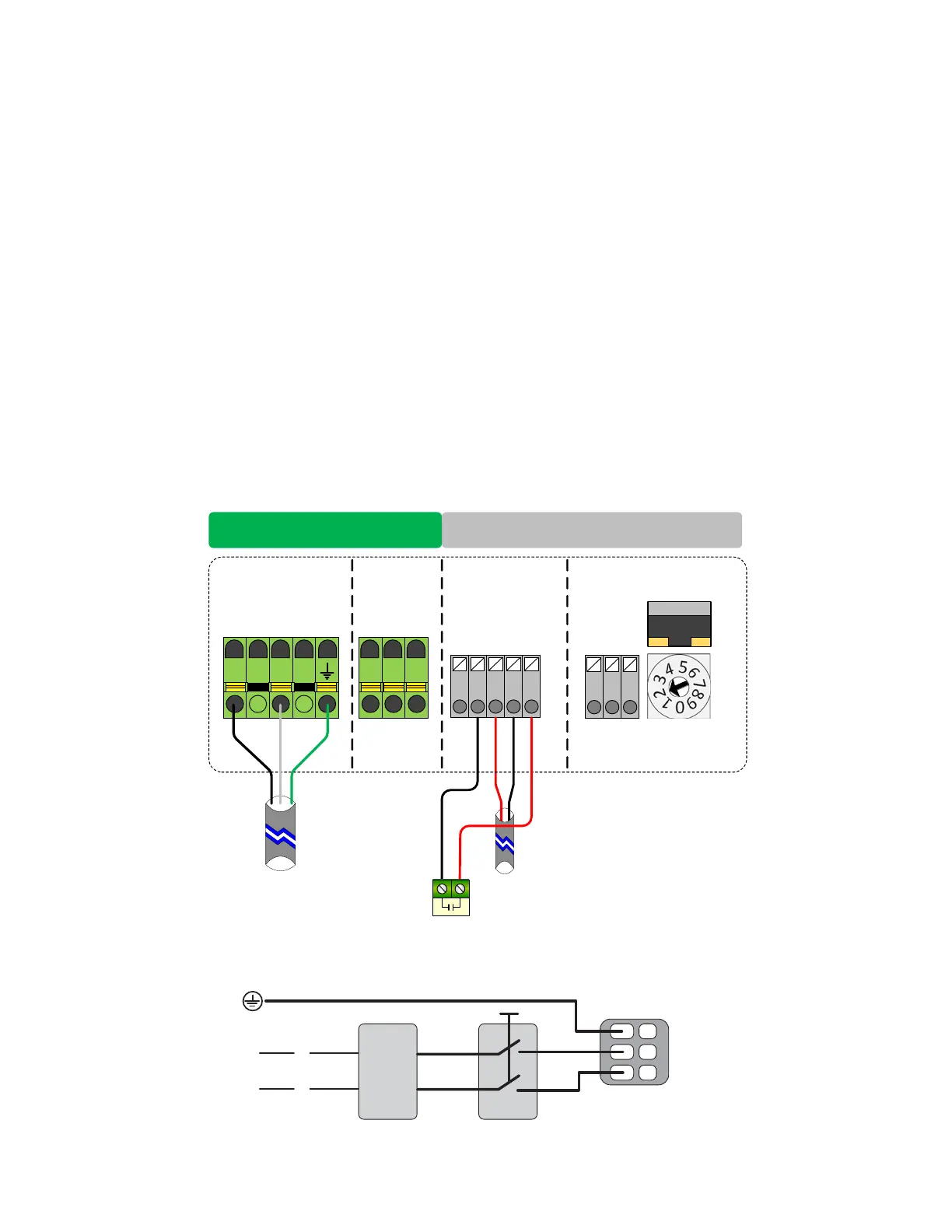

Wiring Instruction:
The Taco VR Series is rated for use in single phase applications. It is essential wiring is completed by a qualied
technician, in accordance with all local codes and regulations. Input voltage ranges as follows:
• 110 to 240 Volt specic to VR15 and VR20, Low and Medium head models
• 200 to 240 Volt specic to VR15 and VR20 High Head models and all VRF 25 and 30 models
LL
1
NL
2
200-240V 115V
Ground
Line
Neutral
CB
Circuit
Breaker
+24 V SET3 / FB SET2 / MAX COM / ØV SET1 / RUN
+
-
0-10 vdc
Low voltage wiring terminals
COM / ØV B/D - A/D +
NO C NC
GROUND
NEUTRAL
LINE
LINE
VOLTAGE
Line voltage wiring terminals
MODE
RS 485ANALOGRELAY
ETHERNET
LED1 LED2
L N
Run Relay
by Others
