10. SETUP AND OPERATION:

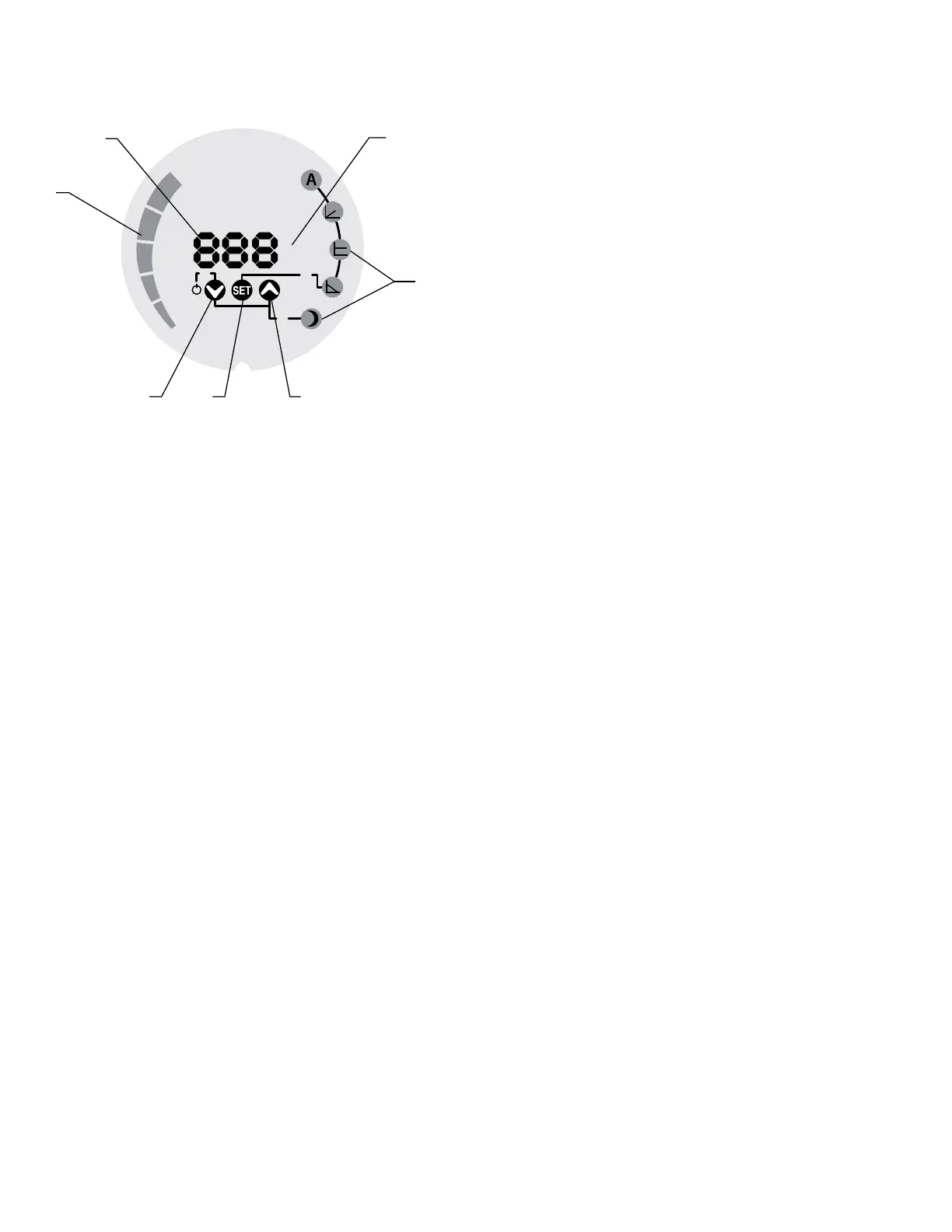

10.1 Control Panel Layout
1. Bar Graph of Values
2. Numerical Display of Values
3. Unit Display of the Currently Selected
(Watts, Head Setting, Flow, or Speed)
4. Selected Mode
(Automatic, Proportional Pressure, Constant Pressure,
Constant Speed and Night Setback)
5. [ + ] Button
6. [
3 ] Button
7. [ – ] Button
10.2 Switching the Pump On and O
When the pump is powered for the rst time, it operates with the factory default settings in automatic mode.
To switch the pump o, press and hold the [ – ] key for 5 seconds, until OFF is shown on the display. When the pump
is switched o, the numerical display shows OFF.
To turn the pump on, press the [ – ] key briey.
10.3 Pump Functions
[–] Key
Short press:
•
Scrolling through parameters downwards, not changing parameter values.
• Scrolling through modes downwards when mode selection is selected.
• Changing parameters downwards when setting parameter values.
Long press:
• 3 seconds together with [ + ] key to select night setback mode.
• 5 seconds to switch o the pump.
• 5 seconds together with [ 3 ] and [ + ] keys to restore pump to factory default settings.
[ 3 ] Key
Short press:
• To conrm currently selected values of both mode and parameter.
Long press:
• 3 seconds to enable mode selection.
• 5 seconds together with long press on [ + ] and [ – ] keys to restore pump to factory default settings.
3s
3s
5s
ECM HIGH-EFFICIENCY CIRCULATOR
00
e
series
®
W
FT
GPM
xRPM
1
32
4
7 6 5
