TA-U1...U280
Instruction and Operating Manual
Misprints and technical changes reserved
13
3.3 Printed Circuit boards & modules

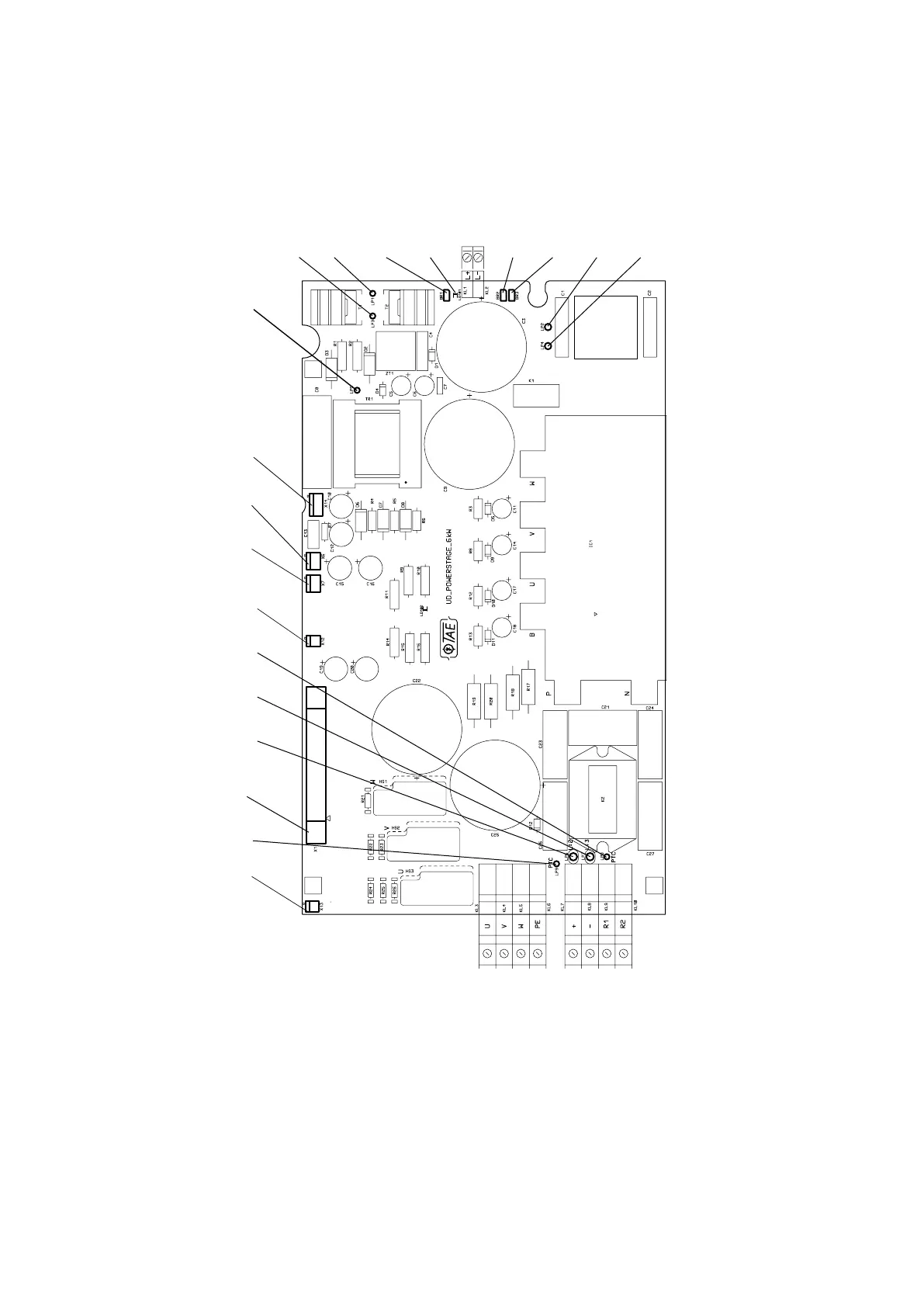

3.3.1 Powerstage TA-U1..U6
X1 Connection to controlboard
X6 +/-24V
X7 +/-24V
X12 PT100
X13 Thermal switch
X14 Buss voltage
BR1 Mains voltage 200-250V
BR2 Indication Safe Stop bridged
BR3 Safe Stop bridged
LD101 Buss voltage „Red“ back side
LD102 Power supply active „Green“ back side
LP3
LP5
LP1 BR1 LD101 BR2 BR3 LP2 LP4
X14
X6
X7
X12
LP8
LP7
LP6
X1
LP9
X13
