CHAPTER 3
Preparation to Install
3.1 Space and room requirement
3.1.1 Floor requirement
Using this machine requires solid and well-structured floor and its good level.
Note:
1. For adjusting level, please refer to the chapter 6.
2. Adjusting level is needed before usin
g
this machine. The level ad
j
ustin
g
tolerance
must be within 1 mm/m.

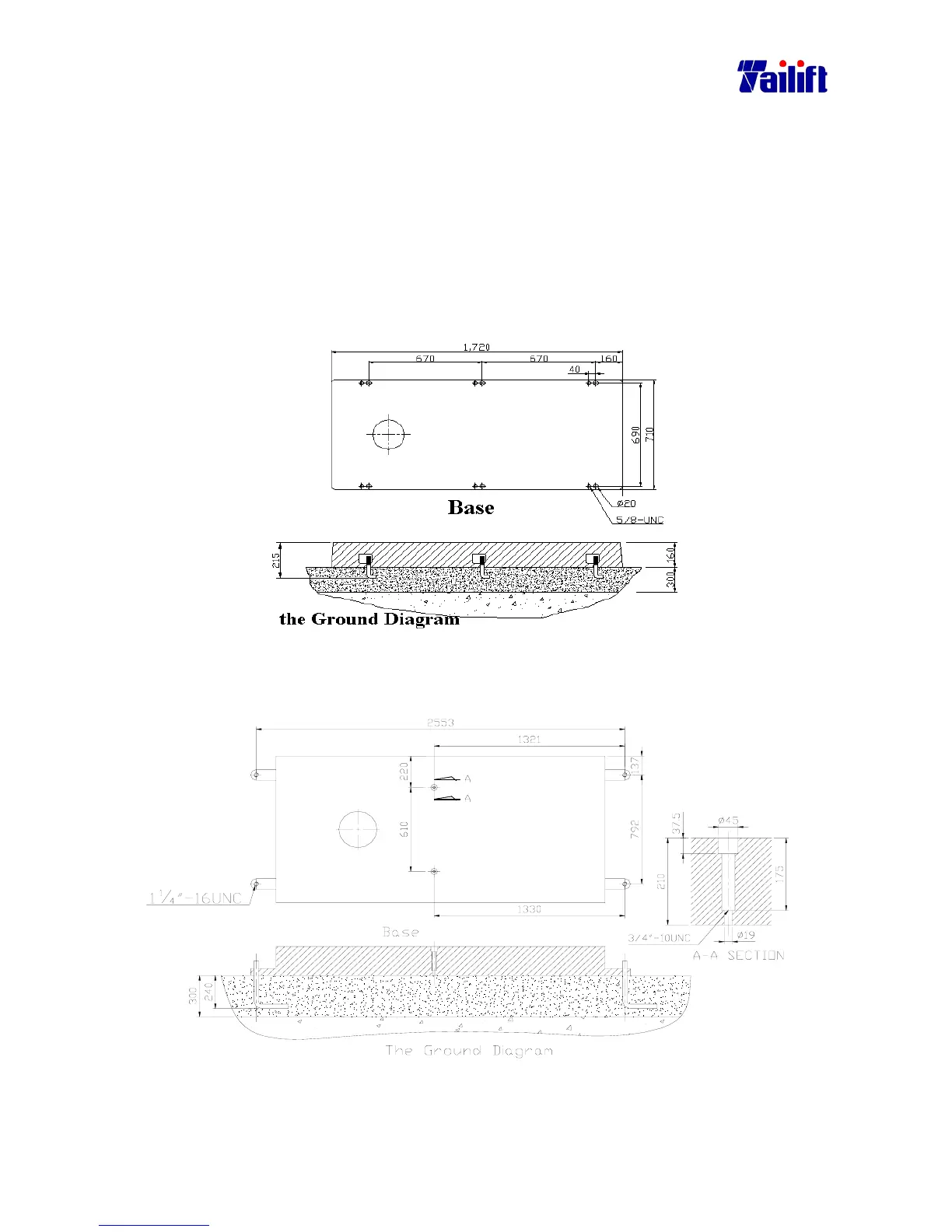

TPR-1230H & TPR 1230 floor diagrams. (Unit : mm)
The above diagrams are for the bases and ground bolts, as well as its relative positions of
TPR-1230H & TPR 1230.
TPR-1600H floor diagrams. (Unit : mm)
The above diagrams are for the bases and ground bolts, as well as its relative positions of
TPR-1600H.
