Tailift TPR1230 - Diagram for Hydraulic System (Only for TPR-1230 H;TPR-1600 H; TPR-2000 H)

9-28
9.16

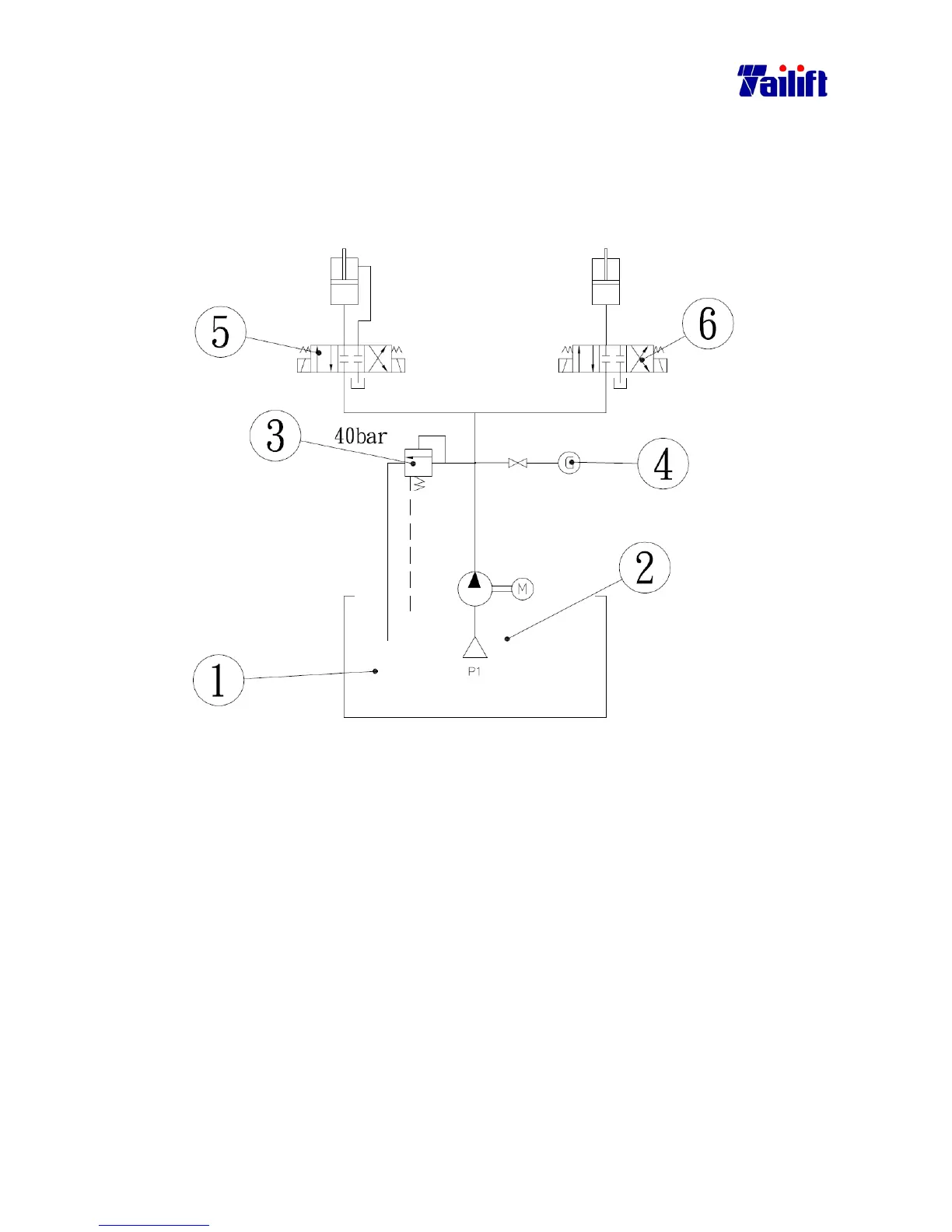

Diagram for hydraulic system (only for TPR-1230H/TPR-1600H/
TPR-2000H)
P1:The pressure set to 38 bar.
Hydraulic of unload equipment
The operated pressure requires 38bar. When the pressure s
y
stem can be
maintained to 38bar. But pipe has clo
g
, furthermore h
y
draulic of pressure
continue to rise. To further ensure safet
y
, the unloadin
g
valve(part 3.) is
employed to unload the motion if the pressure is over the setting of 40bar.
