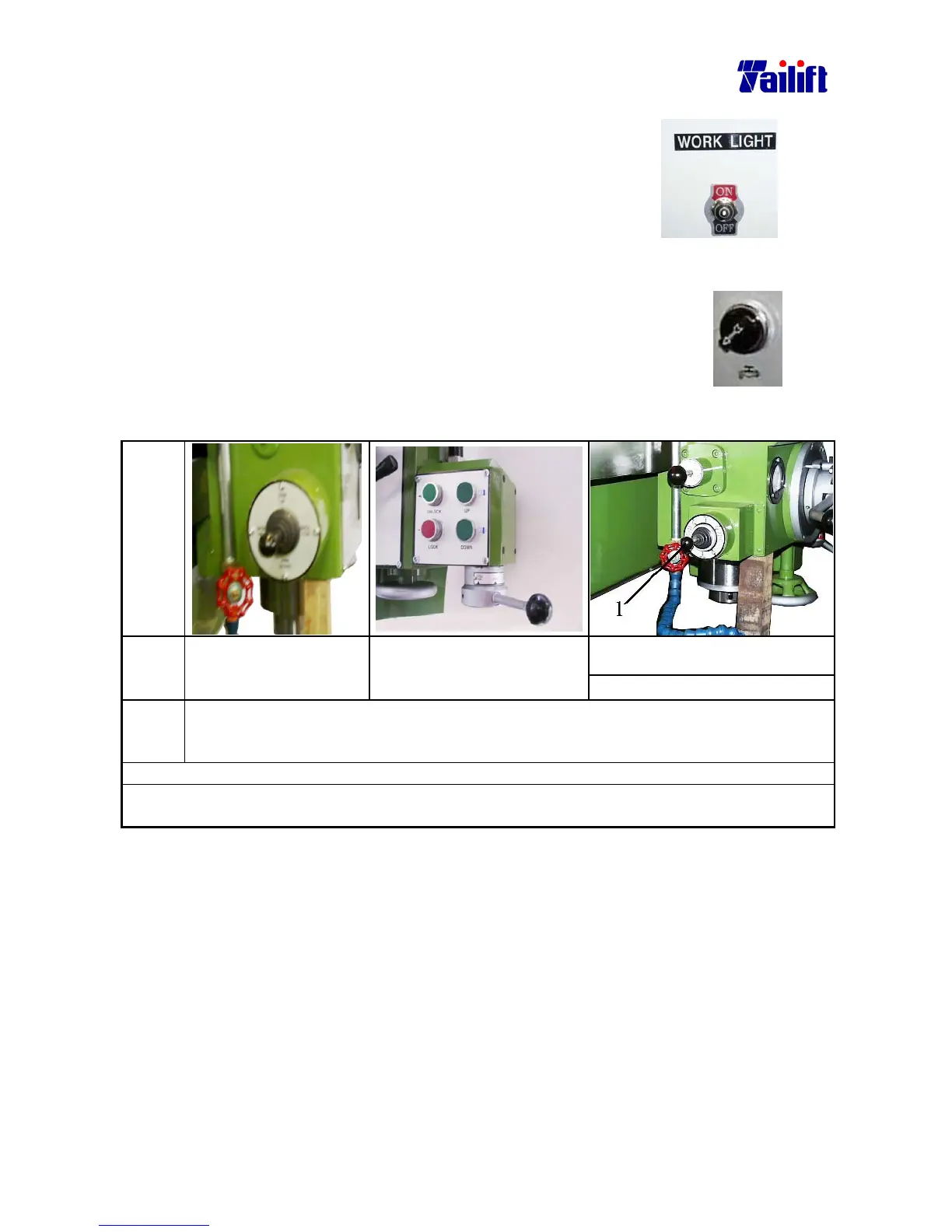

5.6 Work light
Turn on the work light. Switch the work light to ”ON”
position.
Turn off the work light. Switch the work light to ”OFF”
position.
5.7 Cutting fluids
Turn on the cutting fluids. Switch the cutting fluids to ”ON” position.
Turn off the cutting
fluids.
Switch the cutting fluids to ”OFF” position.
5.8 Elevating the arm .
Diagra
ms
1
Cross Switch.
Descrip
tion
For
TPR-1230,TPR-1230H
(Type I)
For TPR-1230,TPR-1230H
(Type II)
For TPR-1600H, TPR-2000H
Steps Turn the cross switch to “ARM UP” if
y
ou want to elevate it up, Turn the cross switch
to “ARM DOWN” if you want to elevate it down. Turn the cross switch to the middle
after the Arm reaches the required position.
Precaution
When the Arm is elevating, the clamping device will release itself automatically. When the
cross switch is turned to the middle, the clamping device will tighten itself automatically.
