Installation
2 Terminate the free end of the cable with the BNC
crimp plug supplied, as shown in Figure 7:
• Fit the crimp sleeve over the cable sheath.
• Trim the outer sheath from the cable to 15mm (see
Figure 7 below).
• Trim the braid to 8.5mm.
• Trim the dielectric to 11mm. (Take extreme care not to
‘nick’ the centre conductor with the trimming device.)
• Fit the male pin onto the centre conductor with the
shoulder pressed against the end of the dielectric.
• Crimp the male pin onto the centre conductor.
• Press the assembly firmly into the rear of the plug.
(Ensure that no braid gets trapped between the
dielectric and the inside of the plug.)
• Slide the crimp sleeve over the braid and press
against the shoulder of the plug.
• Crimp the crimp sleeve onto the braid and plug body.

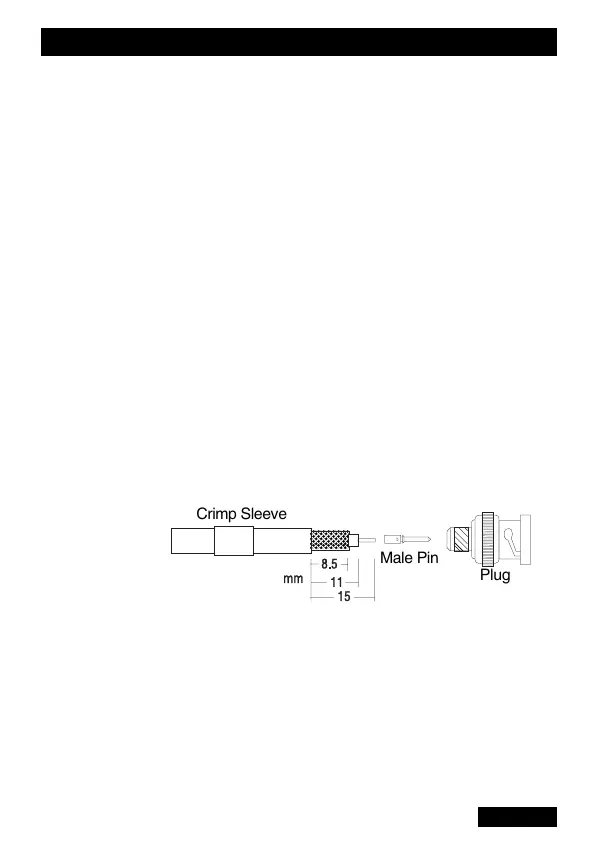

Figure 7: Antenna Connector Assembly
aaaaaaaa
a
aaaaaa
a
a
aaaaaa
a
aaaaaaaa
bbbbbbbb
b
bbbbbb
b
b
bbbbbb
b
bbbbbbbb
Male Pin
Crimp Sleeve
Plug
