TB9300 Installation and Operation Manual Replacing Modules 123
© Tait International Limited April 2024
1. Before fitting the front panel, ensure that all cables are secured and
positioned correctly so they are clear of the fan ducts (refer to
“Appendix B Inter-Module Connections” on page 125). Otherwise
the panel may not fit properly, or you may damage the cables.
Base stations manufactured after May 2015 no longer have an airflow
separator.
2. In 50W base stations, check that the airflow separator is fitted
correctly.

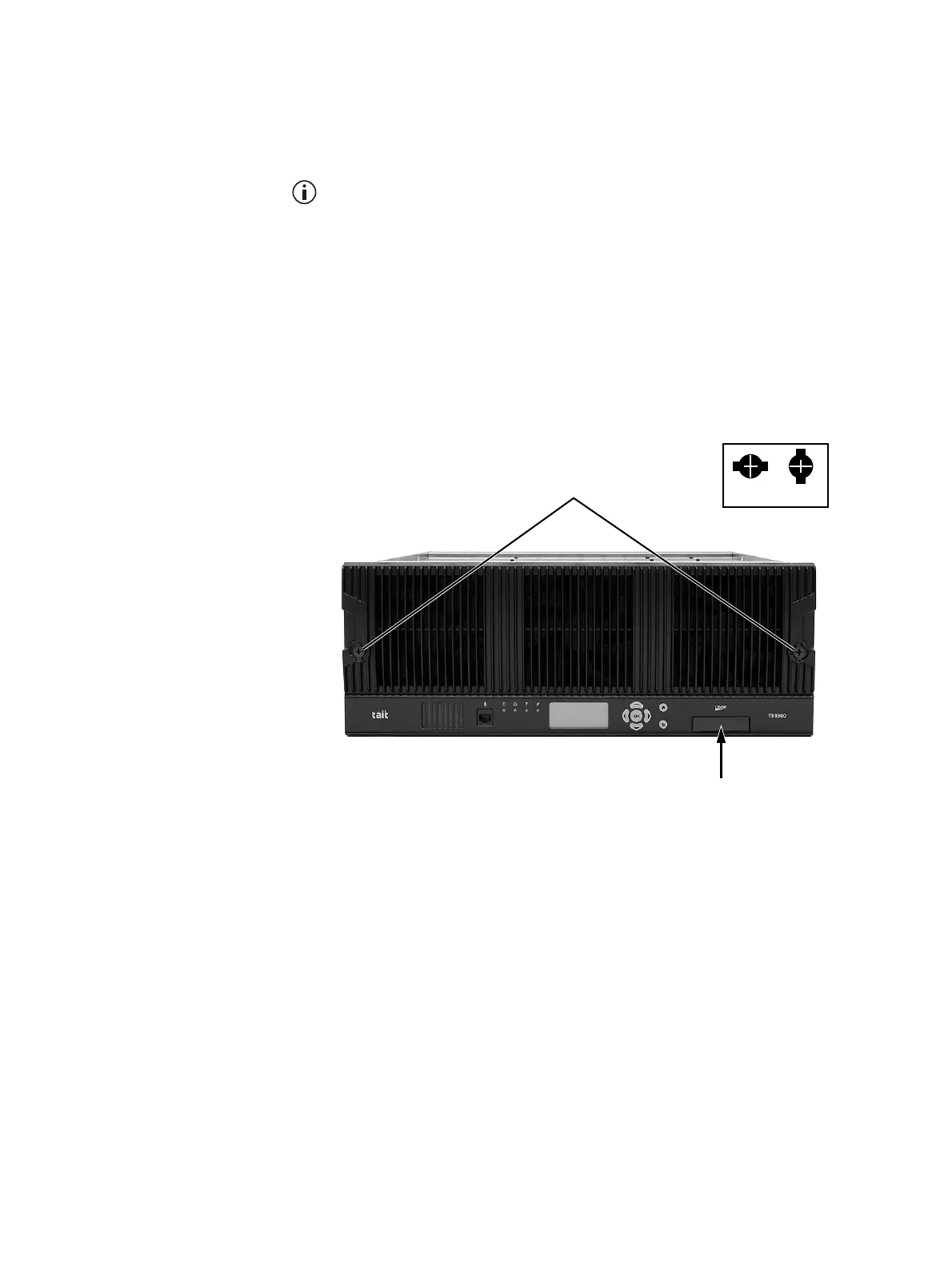

3. Refit the Front Panel
a. Ensure that the fasteners
b are in the unlocked position.
b. Fit the front panel onto the locating pegs on the subrack.
c. Secure each fastener with a quarter turn clockwise.
d. Push the self-aligning D-range connector
c fully in.
4. Before powering up the base station, check that all power, RF and
system cables are connected correctly and securely at the rear of the
base station.
When refitting modules, make sure they are fitted correctly into the subrack
and all retaining clamps are securely tightened. The recommended torque
for the retaining clamp screws is 17lbf·in (1.9N·m). As well as holding the
modules in place, the retaining clamps push the modules hard against the
rear rail of the subrack to ensure a good ground connection between the
modules and the subrack.
lockedunlocked
b
c
