3.2 Module Indicator LEDs and Switches
Additional status information is displayed by LEDs present in individual
modules. The PMU also has switches that let you turn the AC and DC
modules off.
3.2.1 Reciter
Front View The indicator LEDs on the front of the reciter are visible through a slot in
its front panel.
These LEDs provide the following information about the state of the
reciter:
■ Steady green - the reciter is powered up
■ Flashing red - one or more alarms are present in offline or online mode;
refer to the WebUI for more details about the alarms
■ Steady red - the reciter is offline

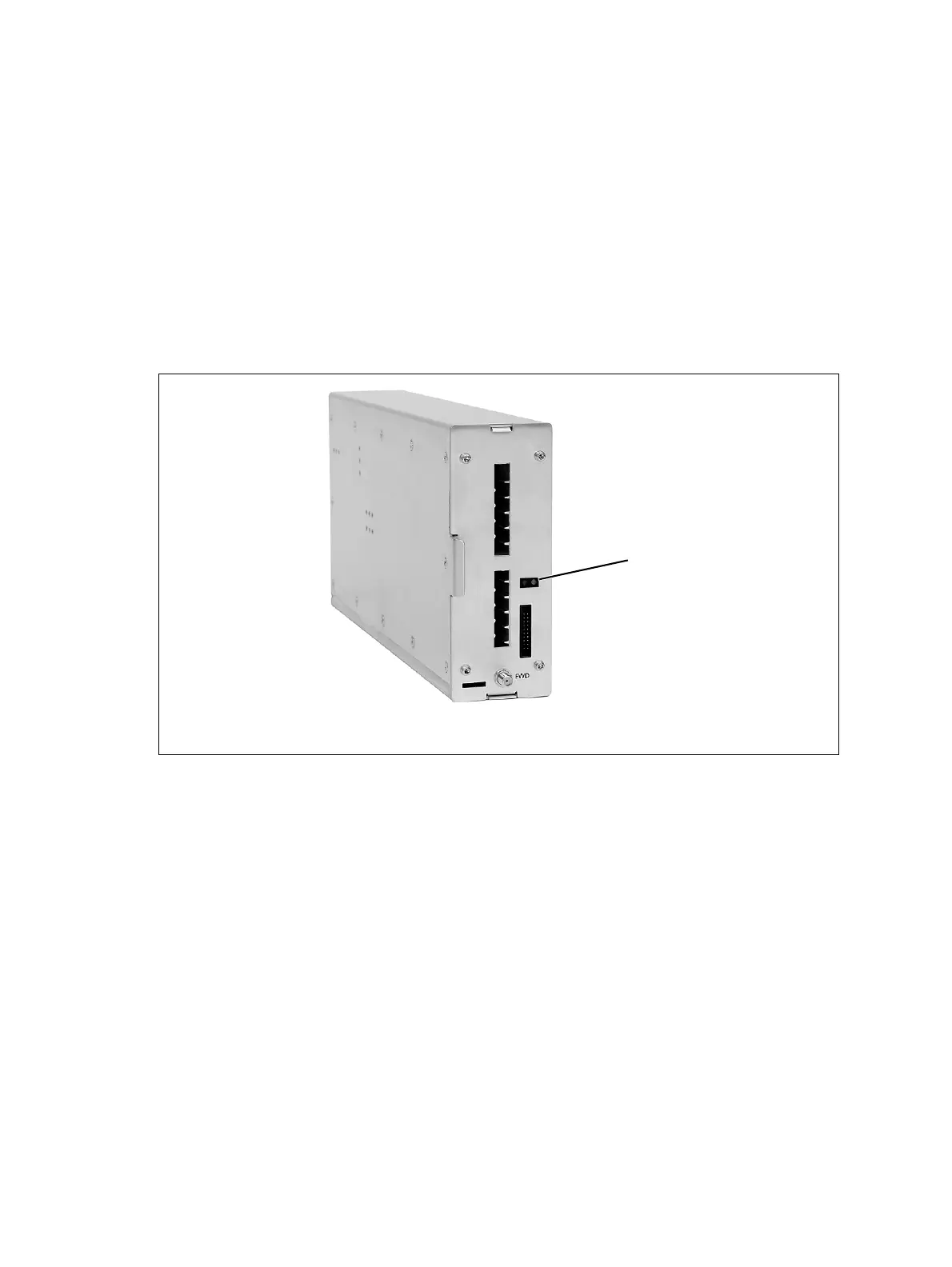

Figure 3.2 Indicator LEDs on the front of the reciter
b
indicator LEDs
b
