TB9300 Installation and Operation Manual Description 17
© Tait International Limited April 2024

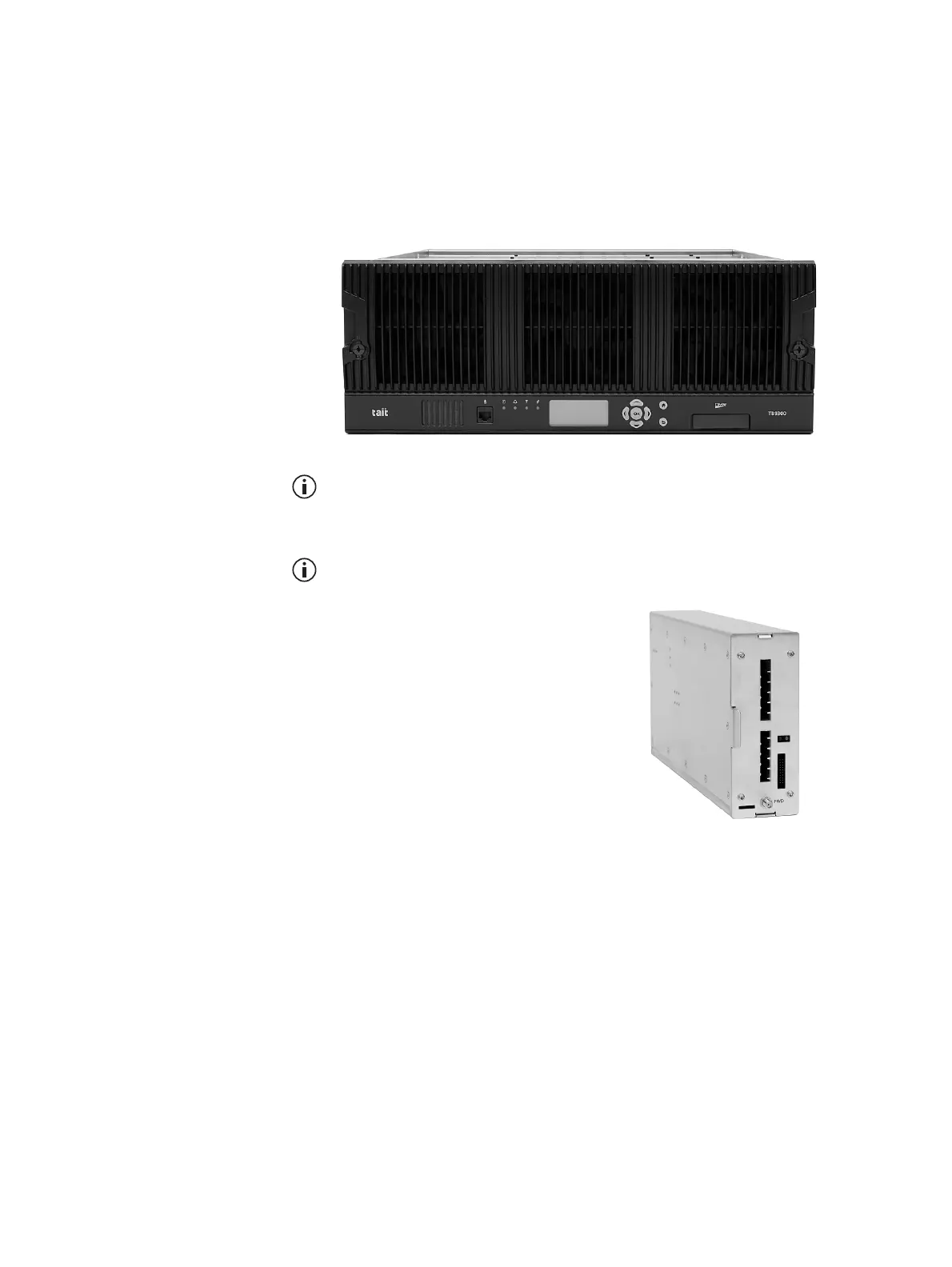

Front Panel
The front panel is mounted onto the subrack with two quick-release
fasteners. It incorporates the indicator LEDs, four-line LCD display, user
controls, an ambient temperature sensor, and cooling fans.
The indicator LEDS allow some monitoring of the operational status of the
base station. The user controls and display allow the technician to
configure the IP address of each module. Refer to “Front Panel” on page 45
for more information.
The base stations have different front panel ducting arrangements
depending on PA type and power. Front panels may not be interchange-
able.
The microphone input and speaker are not currently used.
Reciter The reciter module comprises the
receiver, exciter and digital control
circuitry. The reciter provides the
Ethernet interface and system inputs
and outputs.
