TB9300 Installation and Operation Manual Operation 53
© Tait International Limited April 2024
Indicator LEDs These LEDs provide the following information about the state of the PMU:
Steady green - the PMU is powered up
Flashing green - the PMU has no application firmware loaded or
activated; use the WebUI to download or activate the firmware
Flashing red - one or more alarms have been generated; use the WebUI
to find more details about the alarms
Flashing red and green - the PMU is in battery protection mode; check
that the battery voltage is above the configured minimum startup
voltage; also check that the minimum startup voltage is configured
correctly
The alarm LED will flash whenever an alarm is generated, even if the
alarm has been disabled via the WebUI.

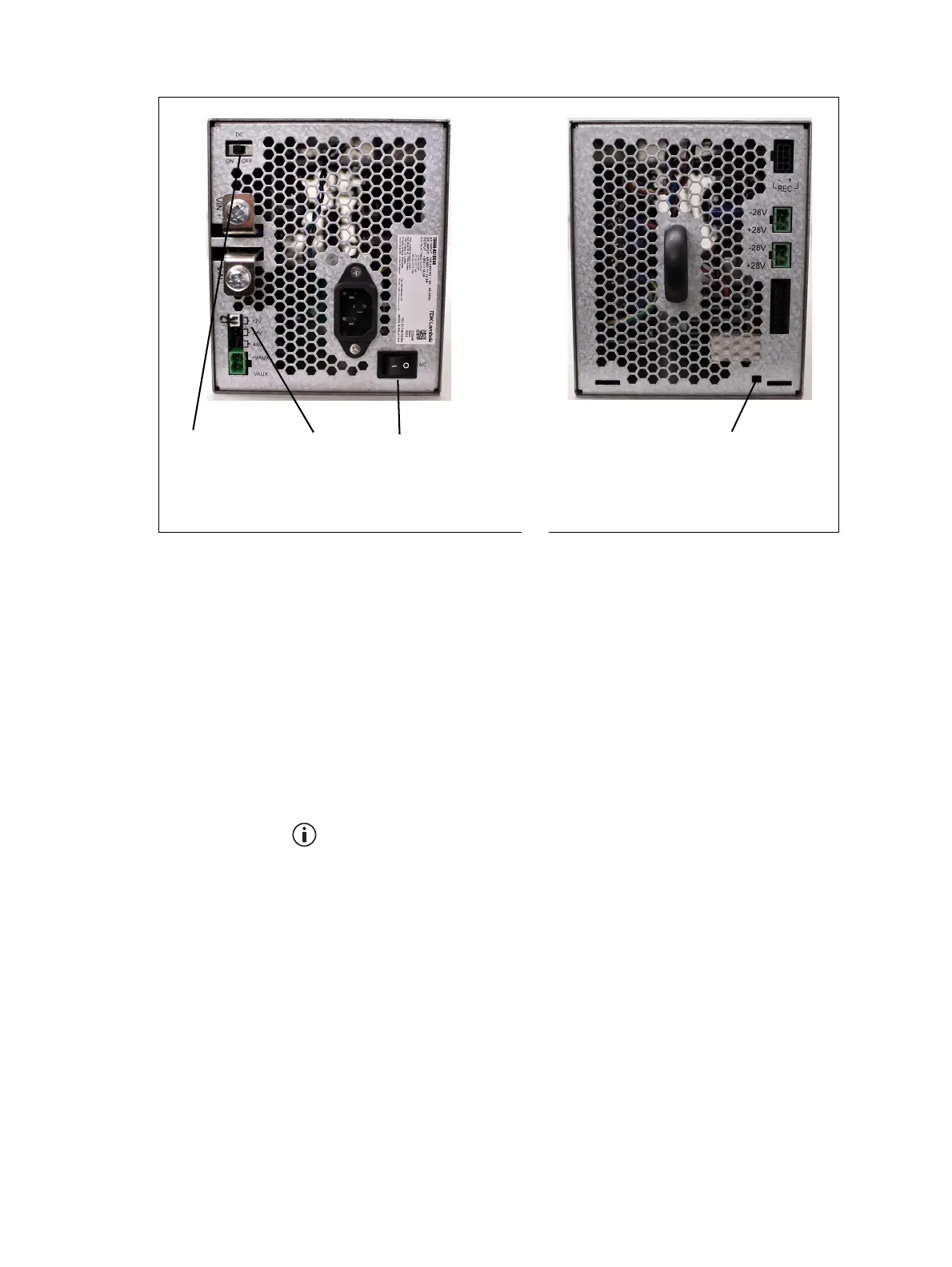

Figure 3.6 Operating controls on the PMU H/W version 4
b
DC module on/off switch
d
AC module on/off switch
c
User selectable voltage
e
Indicator LEDs
b
c
rear view
d
front view
e
