182 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

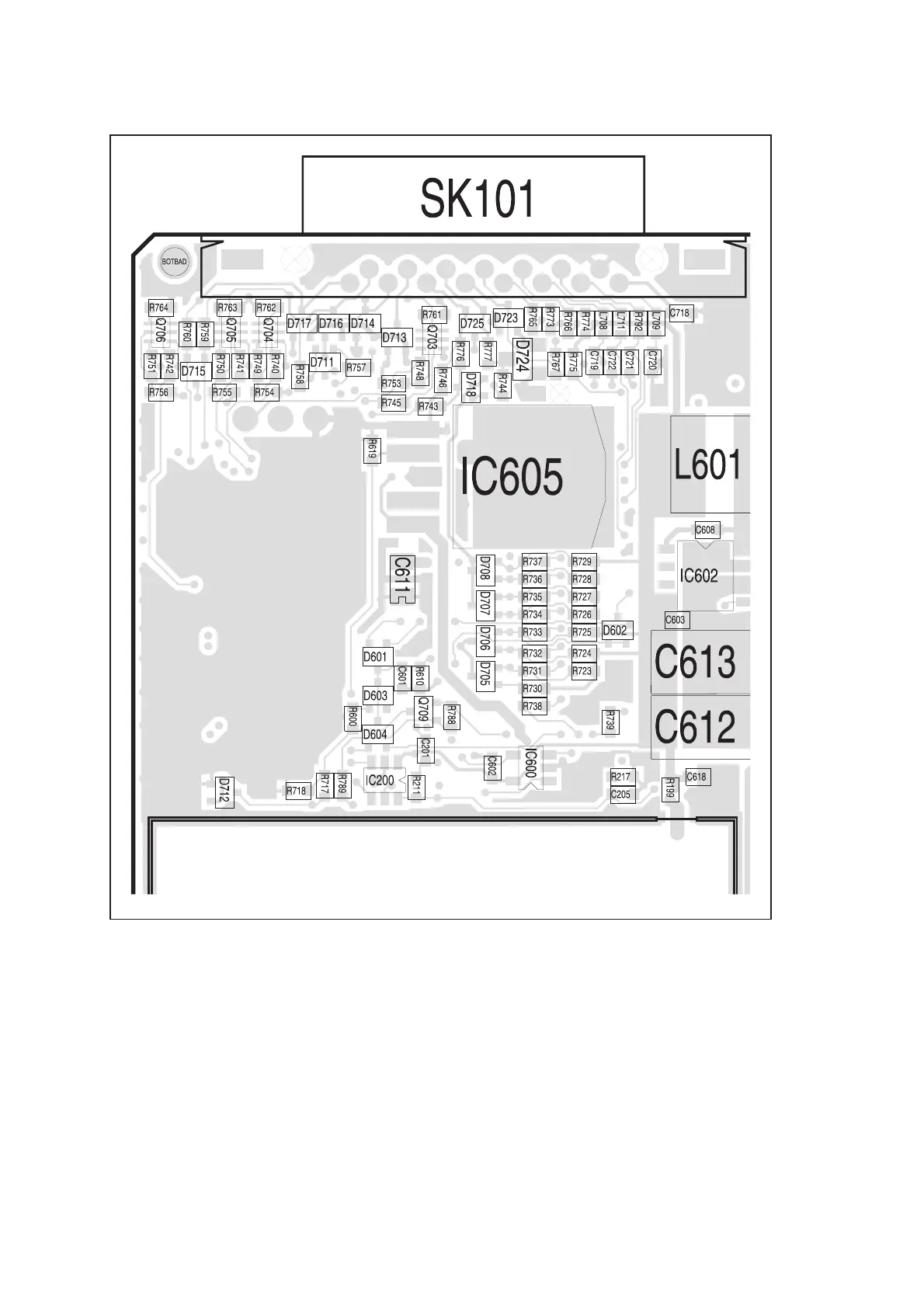

Figure 9.7 Components of the interface circuitry on the bottom-side of the main board
CAN FOR DIGITAL BOARD
