Tait TM8000 Series User Manual

226 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

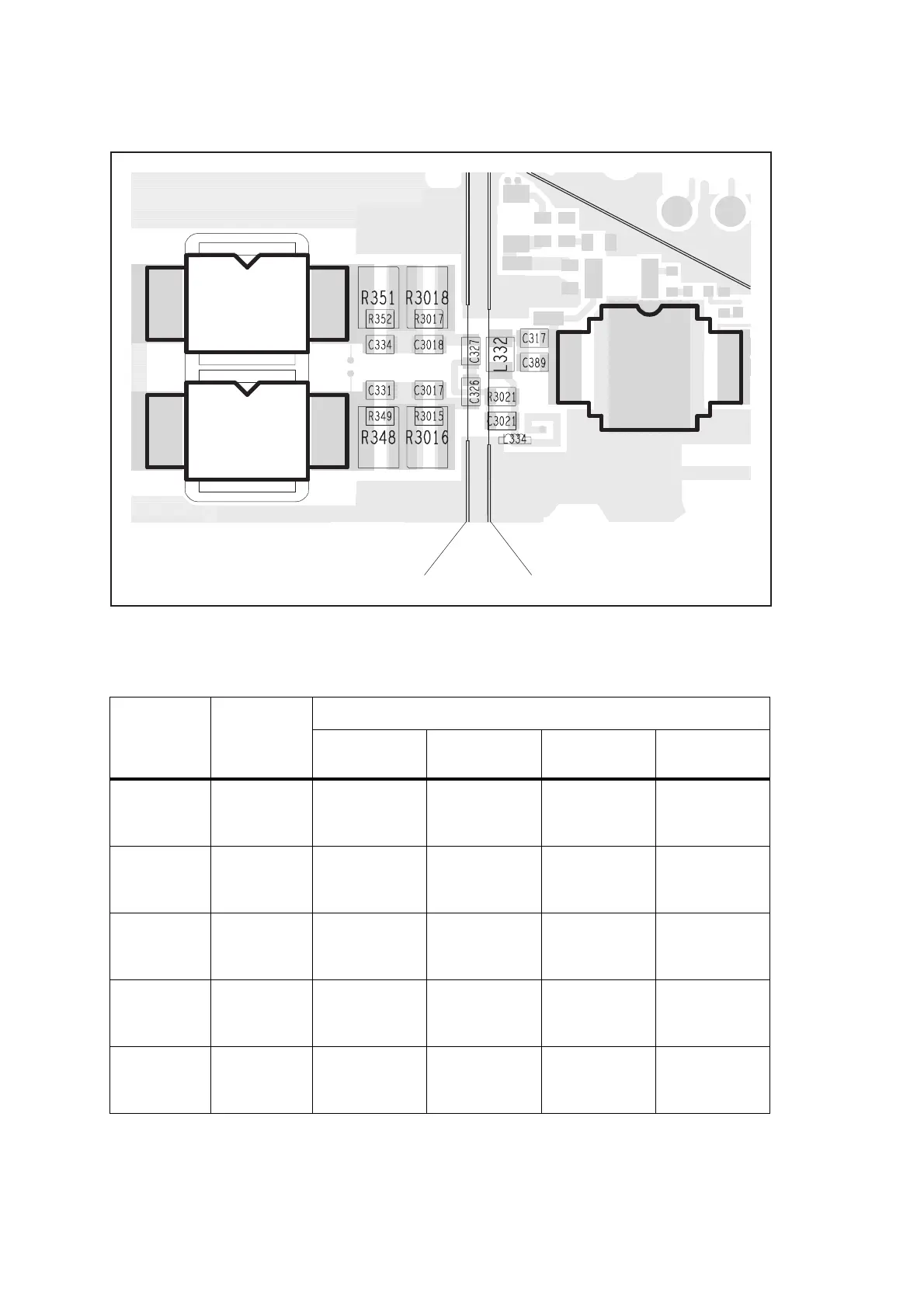

Figure 9.26 Components of the interstage matching circuitry between the PA driver Q306 and the
PAs Q309 and Q310 (D1 band)
Table 9.8 RF voltages along the initial RF signal path of the VHF radio (B1 band)
Power level
(W)
Frequency
(MHz)
RF voltages (V)
Synthesizer
output
Buffer
output
Exciter
output
Driver
output
1136
155
174
0.3 ± 0.1
0.3 ± 0.1
0.2 ± 0.1
0.2 ± 0.1
0.3 ± 0.1
0.2 ± 0.1
2.4 ± 0.5
2.5 ± 0.5
2.6 ± 0.5
1.8 ± 0.5
1.0 ± 0.5
1.5 ± 0.5
5 136
155
174
0.3 ± 0.1
0.2 ± 0.1
0.2 ± 0.1
0.2 ± 0.1
0.3 ± 0.1
0.2 ± 0.1
2.5 ± 0.5
2.6 ± 0.5
2.6 ± 0.5
3.0 ± 0.5
1.5 ± 0.5
2.6 ± 0.5
12 136
155
174
0.3 ± 0.1
0.2 ± 0.1
0.2 ± 0.1
0.2 ± 0.1
0.3 ± 0.1
0.3 ± 0.1
2.5 ± 0.5
2.6 ± 0.5
2.7 ± 0.5
4.2 ± 0.5
2.0 ± 0.5
3.8 ± 0.5
26 136
155
174
0.3 ± 0.1
0.2 ± 0.1
0.2 ± 0.1
0.2 ± 0.1
0.3 ± 0.1
0.3 ± 0.1
2.4 ± 0.5
2.4 ± 0.5
2.5 ± 0.5
3.3 ± 0.5
1.7 ± 0.5
4.5 ± 0.5
40 136
155
174
0.3 ± 0.1
0.2 ± 0.1
0.3 ± 0.1
0.4 ± 0.1
0.4 ± 0.1
0.3 ± 0.1
2.5 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
8.2 ± 0.5
5.5 ± 0.5
7.7 ± 0.5
Q306
Q309
Q310
D1 BAND
PAD TOP CANPAF TOP CAN
