232 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

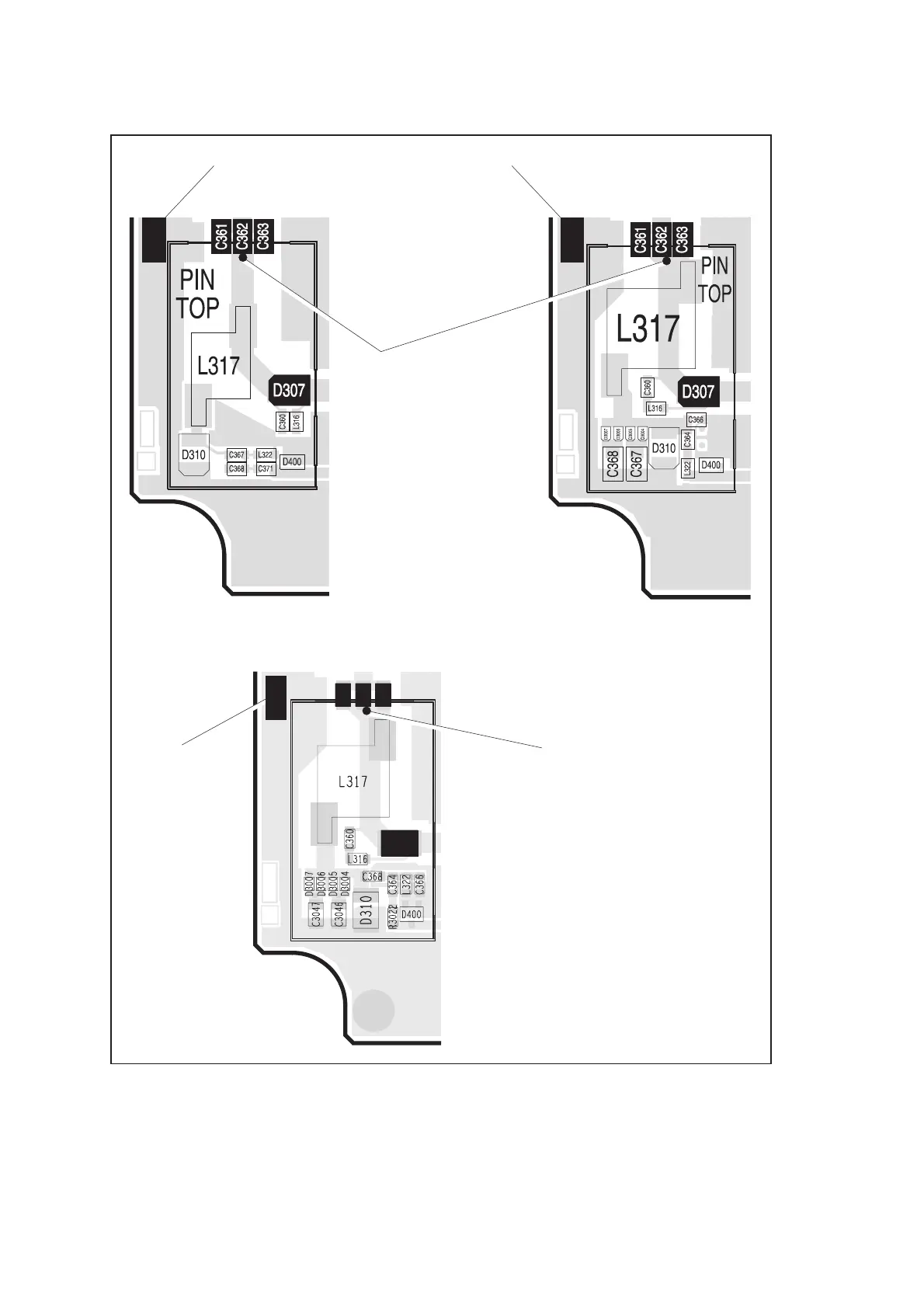

Figure 9.29 Circuitry under the PIN TOP can, and points for attaching the test lead and test capacitor
H5, H6 BANDS B1 BAND
MOUNTING POINT FOR
TEST CAPACITOR
TEST PAD TEST PAD
D307
PIN TOP
C361
C362
C363
TEST PAD
MOUNTING POINT FOR
TEST CAPACITOR
D1 BAND
