Radio Installation 23
Removing the Control Head
Caution: During this procedure, take care that
the chassis seal is not damaged. Damage to this
seal reduces environmental protection.

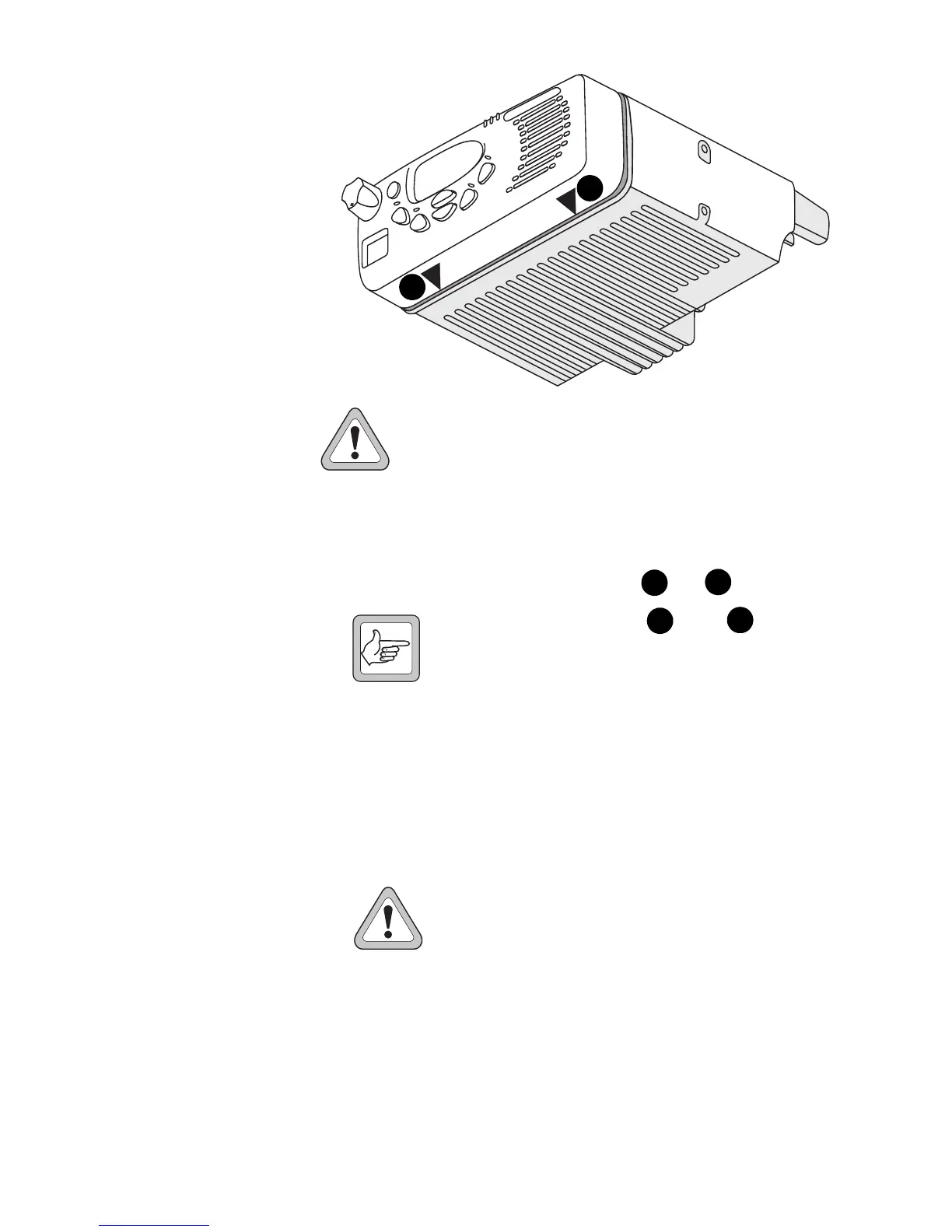

1. On the underside of the radio, insert a flat-bladed
screwdriver between the control head and the radio
chassis seal, in either position or .
Note: Insertion points and are indi-
cated on the radio chassis by a dot-dash-dot
pattern (•
–
•).
2. Use the screwdriver to lift the control head off the
chassis clip, then repeat in the other position.
The control head can now be removed from the
radio body.
Installing the
Microphone
Caution: The microphone grommet must be
installed whenever the microphone is
plugged into the microphone socket. When
installed, the grommet has two functions:
■ to prevent damage to the microphone socket when
there is movement of the microphone cord, and
■ to ensure that the control head is sealed against
water, dust and other environmental hazards.
2
1
1
2
1
2
