26 Radio Installation

3. Cut the negative and the positive wires where the in-

line fuse holders will be placed (as close to the

battery as possible).

Note: Do not install the fuses until the

installation is ready to be checked.

4. Insert each end of the negative wire into one of the

in-line fuse holders and crimp them to force the

metal contacts onto the wires.

5. Connect the negative wire to the battery ground.

6. Repeat step 4 for the positive wire and connect it to

the positive terminal of the battery.

Installing the

Radio in the

U-bracket

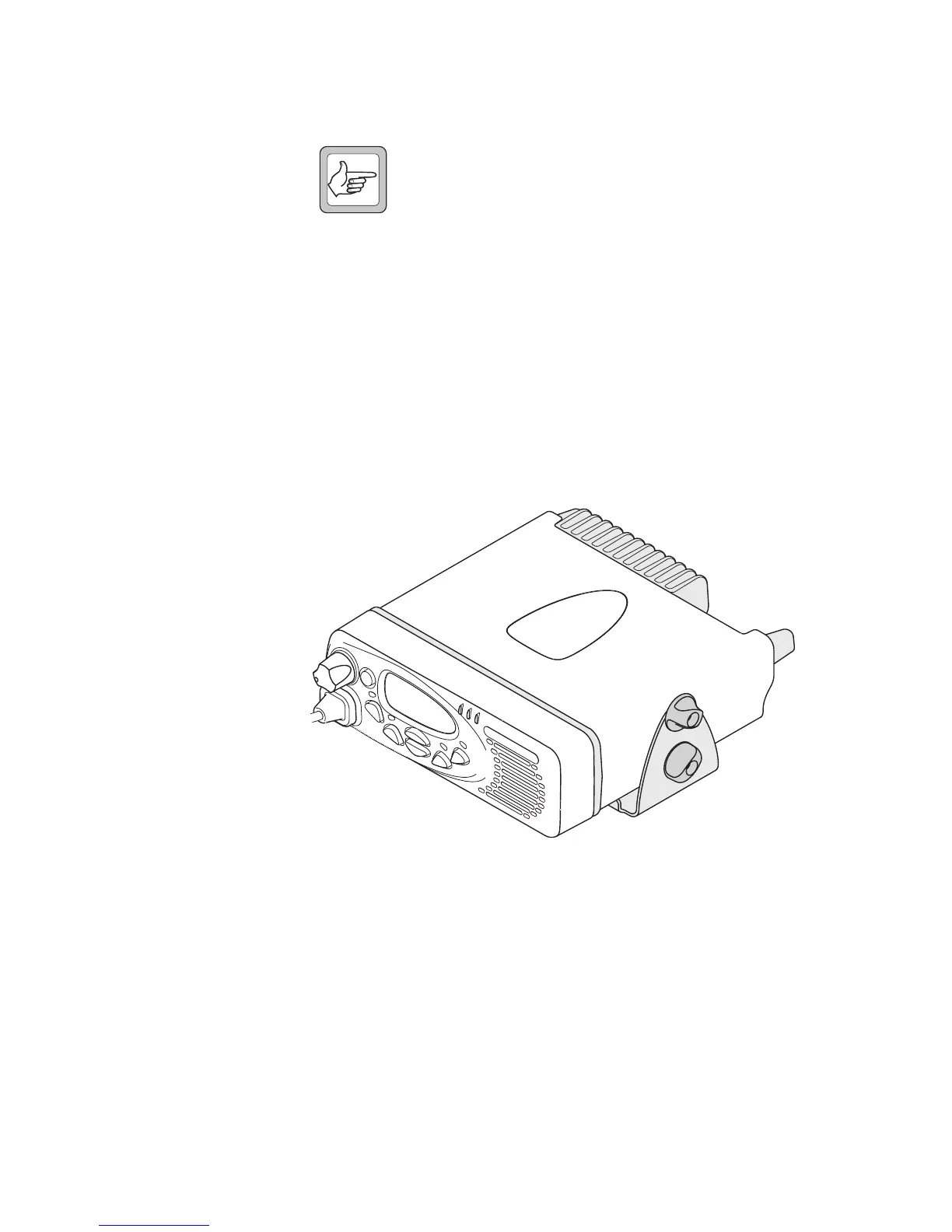

1. Connect the antenna and power cables to the rear of

the radio.

2. Position the radio in the U-bracket so that the

holes in the U-bracket line up with the holes in the

radio chassis.

3. Screw the radio into position using the four thumb

screws but without fully tightening the screws.

4. Position the radio in the U-bracket for best viewing

angle, then tighten the thumb screws.
