24 Radio Installation
1. Plug the microphone into the microphone socket on
the control head.
2. Slide the microphone grommet along the microphone
cord and push two adjacent corners of the grommet
into the microphone socket cavity.
3. Squeeze the grommet and push the remaining
corners into position.

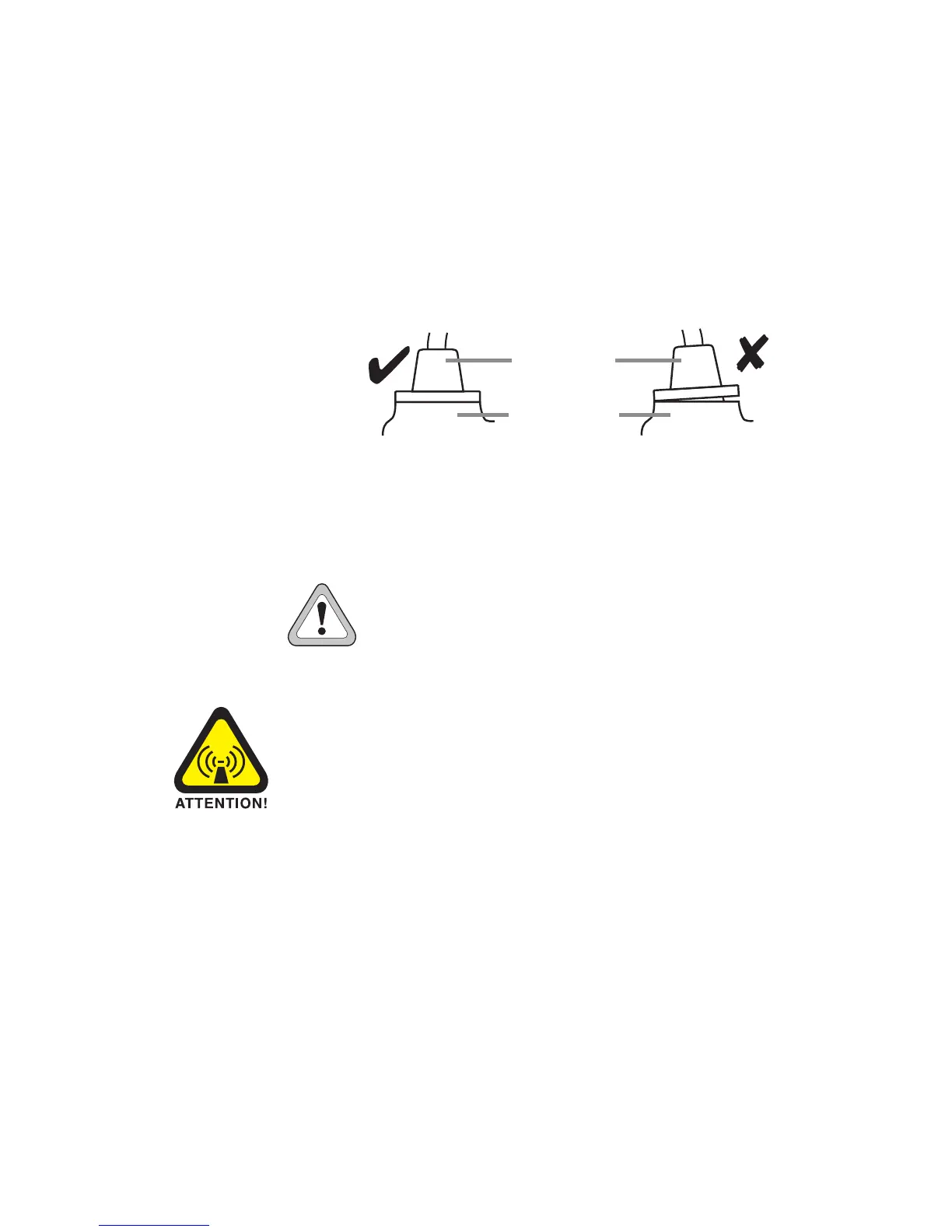

4. Check that the grommet is seated correctly in the cavity.
Installing the
Antenna
Install the external antenna according to the supplier’s
instructions. Good quality 50 ohm coaxial cable must be
used, such as RG58 or UR76.
Caution: The cable should be routed in a
manner that minimizes coupling into the
electronic control systems of the vehicle.
Warning: RF Exposure Hazard
To comply with FCC RF exposure limits, this product
must be installed using an externally mounted antenna
with either a 2.15dBi or 5.15dBi gain.
This antenna must not be mounted at a location such
that any person or persons can come closer than 0.9m
(35 inches) to the antenna.
Antenna Termination
1. Run the free end of the coaxial cable to the radio’s
mounting position and cut it to length, allowing 20 -
30cm (8 - 12 inches) excess.
2. Terminate the free end of the cable with the BNC
plug supplied.
microphone
grommet
control head
