Tait TN9275 - Single 50 W Base Station Connections

TB9400/TN9275 Installation and Operation Appendix B Inter-Module Connections 135
© Tait International Limited May 2023
Single 50W Base Station
The connections between modules at the front of a single 50W base station
are shown below.
DC Supply The PA is powered by a direct connection from the PMU. The reciter is
powered from the PMU via the subrack interconnect board and system
control bus ribbon cable.

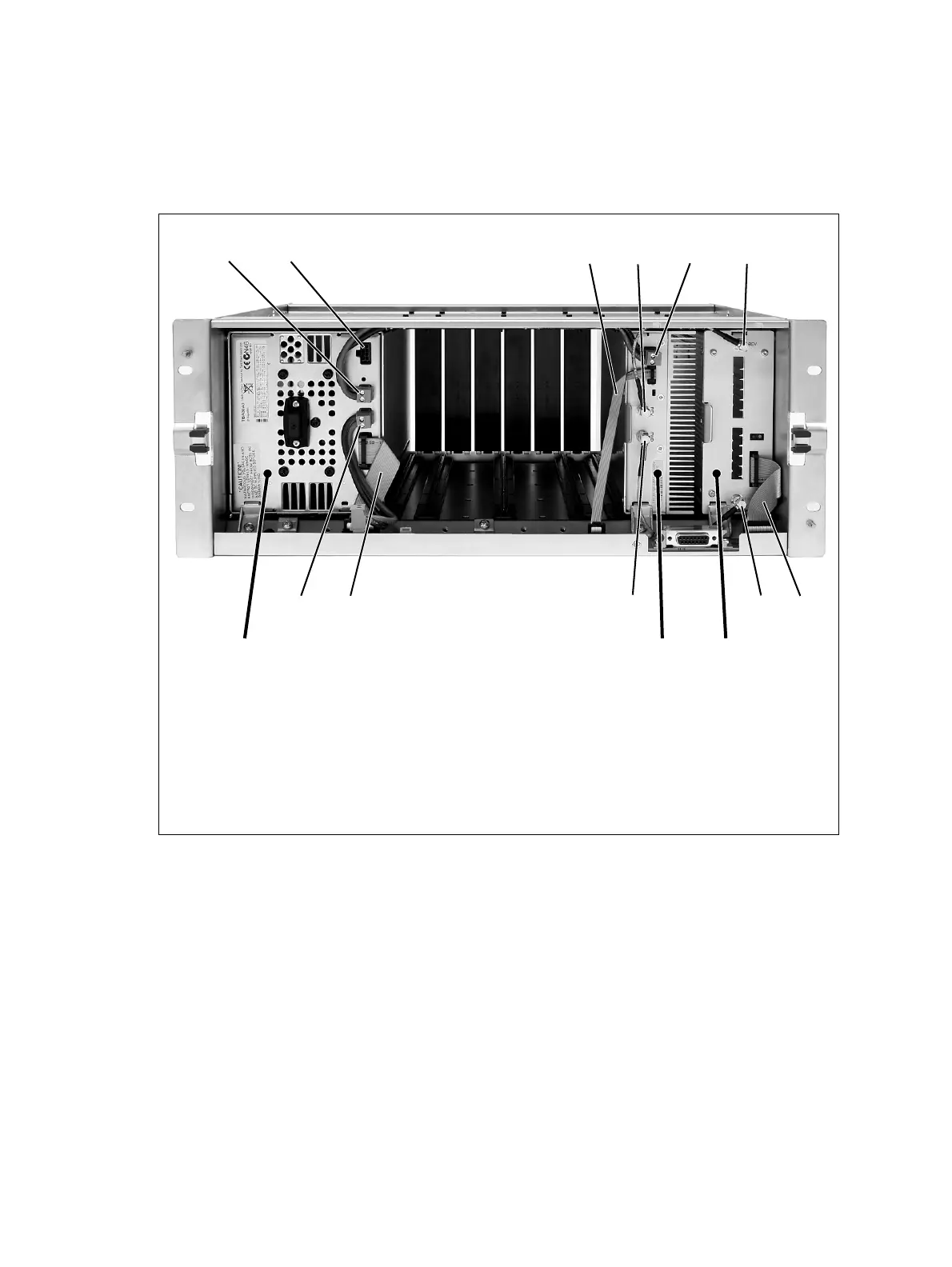

Single 50W base station inter-module connections
b
28VDC output for PA
g
transmit reverse input
c
not used
h
system control bus and 28VDC input
d
system control bus
i
transmit forward output
e
transmit reverse output
j
transmit forward input
f
28VDC input
1)
28VDC output to subrack interconnect board
PMU
reciter
PA
b defg
hijh1)
c
