Tait TOP Programming And Service Manual

M2259-00-200-812 Tait Orca Portable (TOP) Encryption 25
Copyright TEL Encrypted Radio Programming and Service Manual

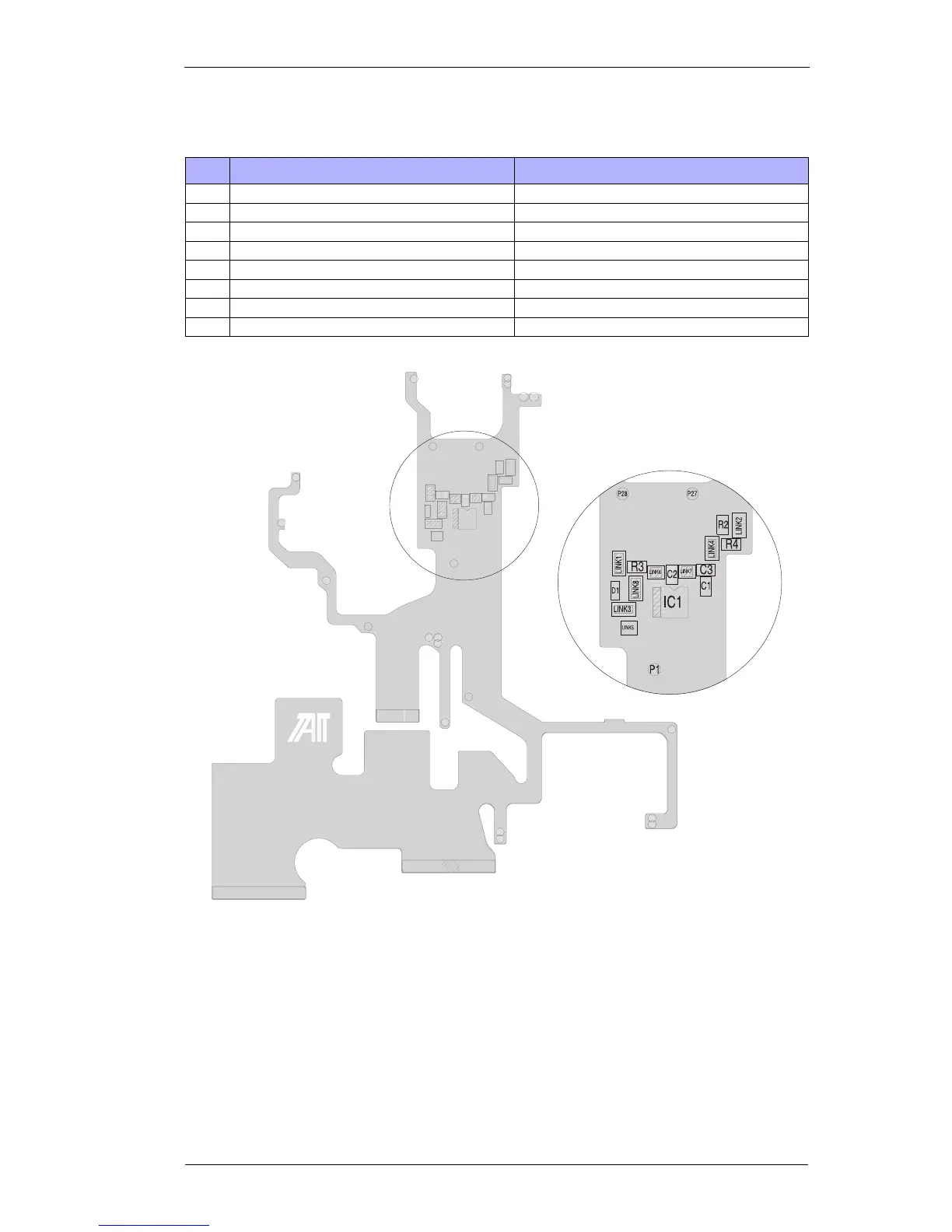

Link Information IPN 228-22592-06A
Factory standard flexes links fitted as follows::
Link Purpose Setting
1 Encryption mode to module Fitted - pads 2-3
2 Future development Not fitted
3 Encryption indicator output Fitted - pads 1-2
4 Future development Not fitted
5 Future development Not fitted
6 Link audio through flex Fitted only if no module factory fitted
7 Link audio through flex Fitted only if no module factory fitted
8 External PTT link Fitted - pads 2-3
228-22592-06
C1
C2
C3
D1
IC1
LINK1
LINK2
LINK3
LINK4
LINK5
LINK6
LINK7
LINK8
P1
P10
P11
P12
P13
P18
P19
P2
P20
P21
P22
P24
P25
P26
P27P28
P4
P5P6
P7
P8
PL1
PL2
R2
R3
R4
TP13
TS1
