M2259-00-200-812 Transcrypt Programming 75
Copyright TEL Encrypted Radio Programming and Service Manual
IPN 219-02128-00

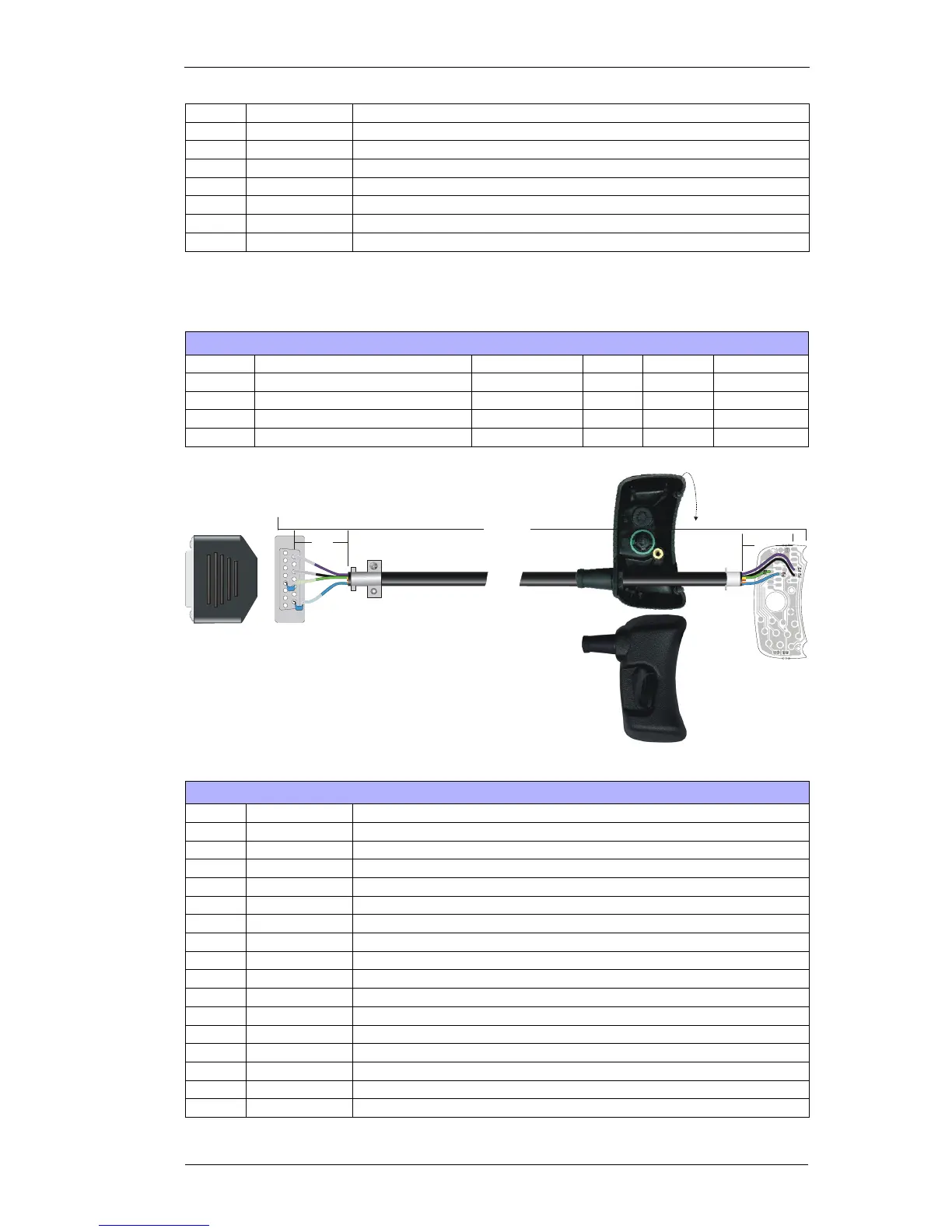

Cable Signal Specification
Parts List
1 357-01049-01 CRIMP CBL T3K AUX CONN
1 360-02007-00 GROMMET 6MM CBL AUX CONN
1 362-01097-00 SEAL SPKR MIC OPT T/ORCA
40 400-00020-05 SLEEVING 1.5MM SIL RUBBER
500 205-00010-47 CBL 6WAY 24AWG 7/0.2MM FS+DW
1 240-00020-55 PLG 15W DRNG 105 DEG PNL MTG
1 240-06010-16 CONN 15W HOOD/CVR DRNG
2 019-06100-00 CAP MONO CER 100N 20% 50VX7R
Signal TOP Signal Sense/Level TOP Wire TR30-306X
PTT PTT Active low pin 3 Violet pin 9
Ground GND pin 2 Black pin 11
Tx Out Mod-Audio (dc block in lead) 1V p-p pin 9 Blue pin 15
+13V8 (programmer requires power pack) - pin 1
Rx In Rx-Det-AF (dc block in lead) 0.5V p-p pin 8 Green pin 5
Qty IPN Description
1 OPA-AA-00XG T/ORCA ACC CONN SMT ASSY
1 303-20067-01 LOK SPRING RELEASE
1 345-00020-09 SCRW M2*5MM SS PAN TORX PATCH
1 354-01044-00 BUSH PSM SHK-B-M2-4.0 INS
1 357-01049-01 CRIMP CBL T3K AUX CONN
1 360-02007-00 GROMMET 6MM CBL AUX CONN
40 400-00020-05 SLEEVING 1.5MM SIL RUBBER
500 205-00010-47 CBL 6WAY 24AWG 7/0.2MM FS+DW
1 240-00020-55 PLG 15W DRNG 105 DEG PNL MTG
1 240-06010-18 CONN 15W HOOD/CVR DRNG MDJ15
2 019-06100-00 CAP MONO CER 100N 20% 50VX7R
1 308-01021-00 HSNG MIC ACC H/STMP GRN TOP5K
1 312-00001-00 LOK QTR TURN P TOP5K ACC 4GM
1 349-00010-24 SCRW 4-20X5/8 P/P TRILOBE-P BZ
1 362-01029-00 SEAL GENERIC ACC CONN 4GM
1 356-00022-00 TIP QTR TURN TOP5K ACC 4GRN
1 356-01076-00 SPRING PROBE TAPED T/ORCA ACC
9
1
5
1
1
5
530 mm
1
0
0
n
1
0
0
n
Grommet 6mm Cable
20mm
20mm
To Next Page
