Tait TOP Programming And Service Manual

76 Transcrypt Programming M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL
6.11.2 Top Encryption Direct Programming Cable

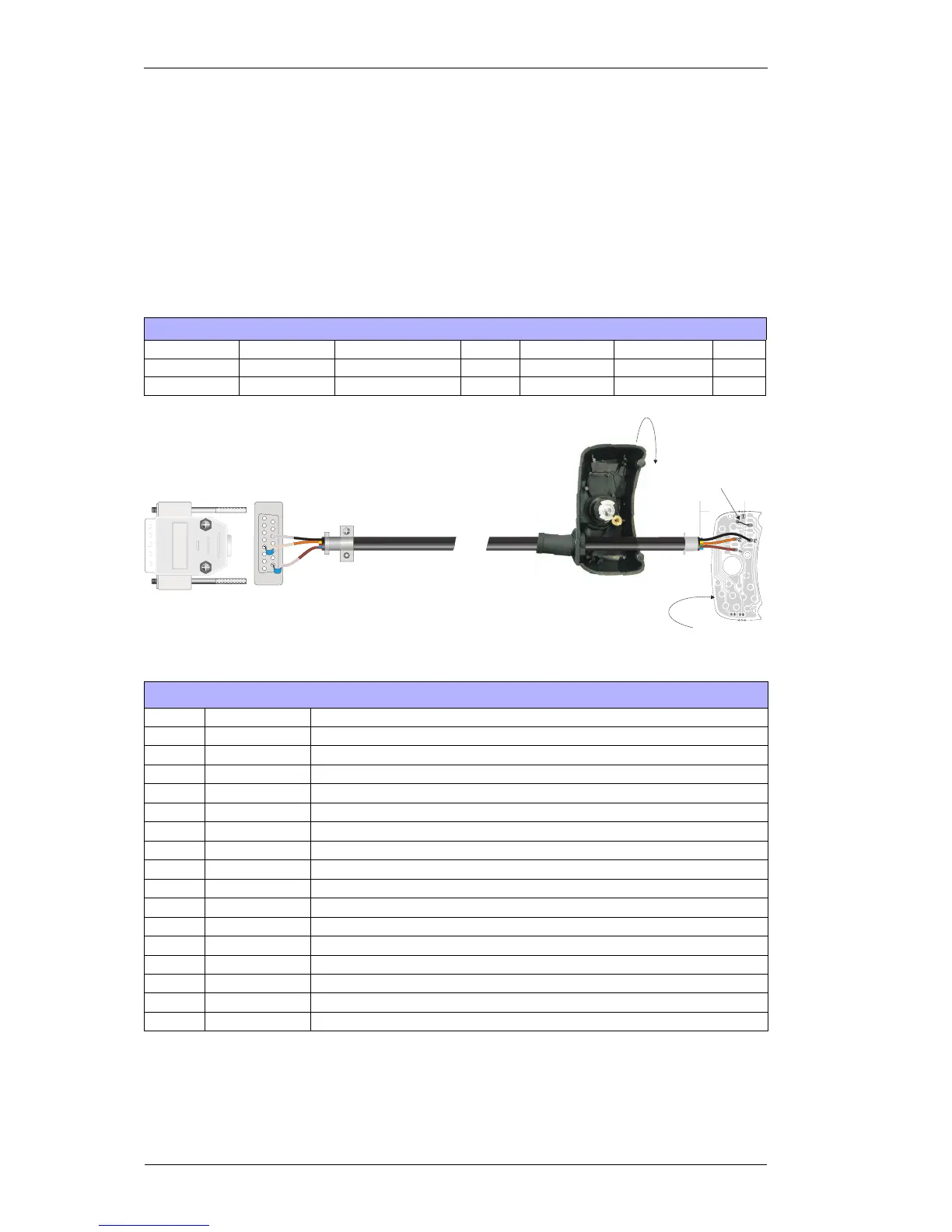

A TOP Encryption Direct Programming Cable is required for direct programming the radios. It
connects the TOP radio to be programmed, via its accessory connector, to the Transcrypt T306X
Programmer.
Note: This cable can be used with any Transcrypt Encryption module. It is not included in the
Programming and Service Kit but can be purchased separately through your Tait dealer.
IPN TOPA-EA-008G
Cable Signal Specification
Parts List
TR30-306X D-Range Function Wire Acc PCB TOP Signal TOP
Tx Out pin 15 Input to Module Brown pad 14 Rx-Det-AF pin 7
Rx In pin 5 Output from Module Orange pad 9 Mod-Audio pin 8
GND pin 11 Ground Black pad 2 GND pin 1
Qty IPN Description
2 019-06100-00 CAP MONO CER 100N 20% 50VX7R
500mm 205-00010-47 CBL 6WAY 24AWG 7/0.2MM FS+DW
1 240-00020-55 PLG 15W DRNG 105 DEG PNL MTG
1 240-06010-18 CONN 15W HOOD/CVR DRNG MDJ15
1 303-20067-01 LOK SPRING RELEASE
1 308-01021-00 HSNG MIC ACC H/STMP GRN TOP5K
1 312-00001-00 LOK QTR TURN P TOP5K ACC 4GM
1 345-00020-09 SCRW M2*5MM SS PAN TORX PATCH
1 349-00010-24 SCRW 4-20X5/8 P/P TRILOBE-P BZ
1 354-01044-00 BUSH PSM SHK-B-M2-4.0 INS
1 356-00022-00 TIP QTR TURN TOP5K ACC 4GRN
1 357-01049-01 CRIMP CBL T3K AUX CONN
1 360-02007-00 GROMMET 6MM CBL AUX CONN
1 362-01029-00 SEAL GENERIC ACC CONN 4GM
40 400-00020-05 SLEEVING 1.5MM SIL RUBBER
10mm 200-00010-03 WIRE T/C 0.9MM
1 OPA-EA-008G T/ORCA ACC CONN SMT ASSY
15
11
5
100
n
10
0n
Fit 56k resistor to
R2 on reverse.
14
P5
wire
link P5
to ground
P2 Black
P9 Orange
P14 Brown
Grommet 6mm Cable
20mm
Plg 15w Drng
240-00020-55
Pin 5 Orange (100n Cap)
Pin 11 Black
Pin 15 Brown (100n Cap)
All Pins 1.5mm Sleeving length 10mm
