Tait TOP Programming And Service Manual

M2259-00-200-812 Transcrypt Programming 77
Copyright TEL Encrypted Radio Programming and Service Manual

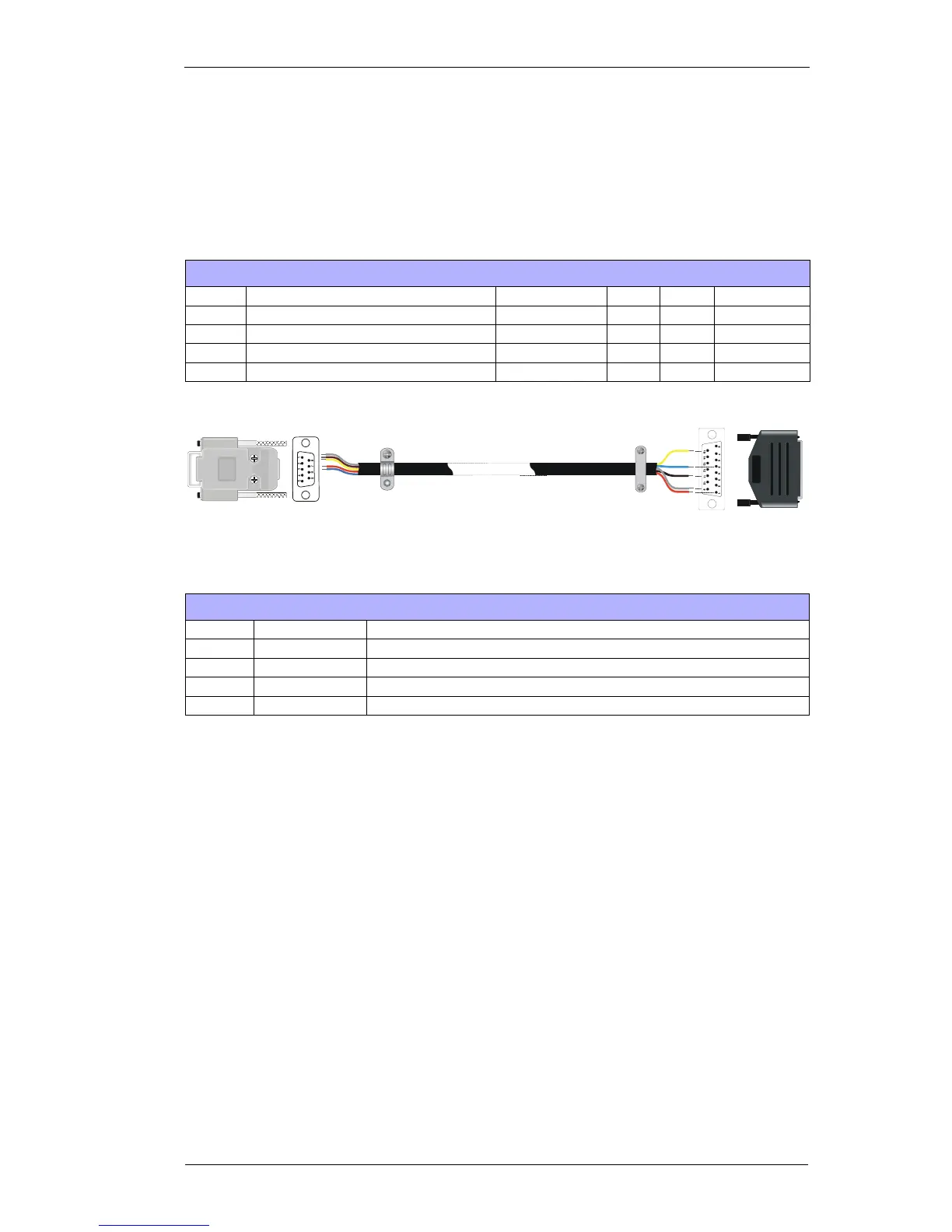

6.11.3 Tait T2000 Programming Cable
IPN 219-02835-00
This cable forms a part of the Tait Encrypted Radio Programming and Service Kit. It connects a
T2000 radio used as a transmitter to the Transcrypt OTAR Programmer.
Cable Signal Specification
Parts List
Signal T2000 Signal Sense/Level T2000 Wire TR30-306X
PTT PTT Active low pin 1 Grey pin 9
Ground GND pin 2 Brown pin 11
Tx Out Tx Line-in 1V p-p pin 3 Yellow pin 15
+13V8 +13V8 (programmer powered from radio) pin 6 Red pin 1
Rx In Rx Line-out 0.5V p-p pin 7 Blue pin 5
Qty IPN Description
1 240-06010-16 CONN 15W HOOD/CVR DRNG
1 240-06010-29 CONN 9W HOOD/CVR LETS
1 240-00010-40 PLG 9W DRNG SUBMINATURE
1 240-00020-55 PLG 15W DRNG 105 DEG PNL MTG
500mm 205-00010-38 CBL DATA 8CORE SHLD B2108CS
9W Drange
240-00010-40
15W Drange
240-00020-55
HOOD/COVER 9W
HOOD/COVER 15
W
500mm
P
i
n
1
t
h
i
s
s
i
d
e
