Takagi GS-2000W-AU - REMOTE CONTROLLER INSTALLATION

15
Connector base
WARNING
• DO NOT locate the remote controllers where they may come into contact with water.
• DO NOT posion the remote controllers in the vicinity of chemicals.
• DO NOT posion the remote controllers over a cooker, grill or toaster.
• DO NOT posion the remote controllers where materials may spill onto them.
• PLEASE NOTE IF THE CONTROLLERS ARE TO BE FITTED TO A METAL SURFACE, AN INSULA-
TION PLATE SHOULD BE PROVIDED BEHIND THE MOUNTING POSITION.

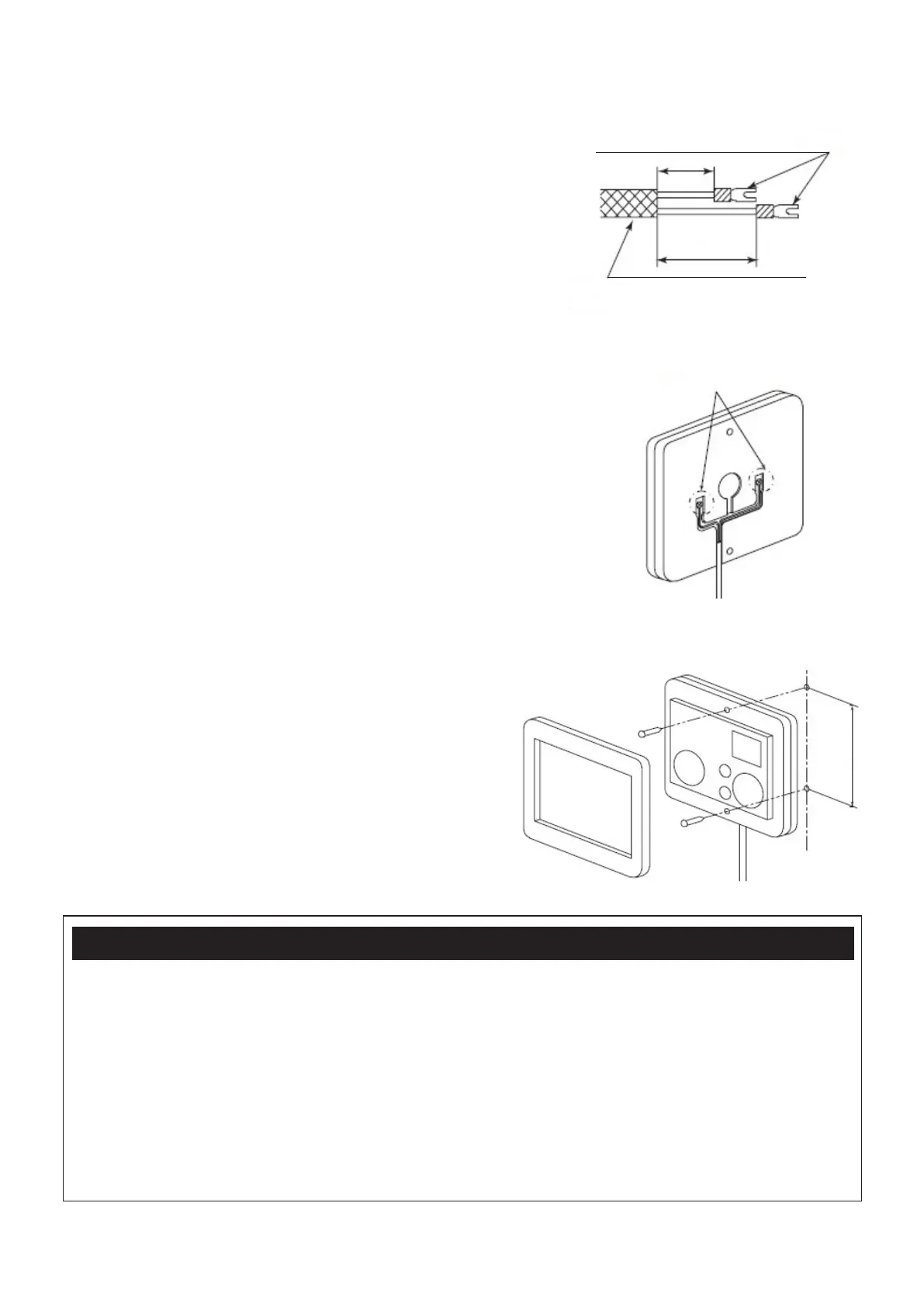

REMOTE CONTROLLER INSTALLATION
1. Crimp the fork terminals to the wires.
• Minimum 18AWG wire (No polarity)
• Maximum 100m long
2. ATTACH THE FORK TERMINAL TO THE CONNECTOR BASE AT
THE BACK OF THE UNIT BY TIGHTENING THE 2 SCREWS.
3. Draw the cable through the groove in the base plate.
4. Fix the remote controller to the wall using suitable screws
and wall anchors.
5. Connect the cable to the two terminals on the back
of the controller (connecons are not polarity sensive).
Ensure the connecng screws are seated ghtly.
Use the fork terminals
25 mm
45 mm
REMOTE CONTROL WIRING
83.5 mm
