T-M1 with Storage Tank
Hot Out Cold In
Relief Valve
Check valve
Hot Water
Recirculation
Recirc. Pump Pump

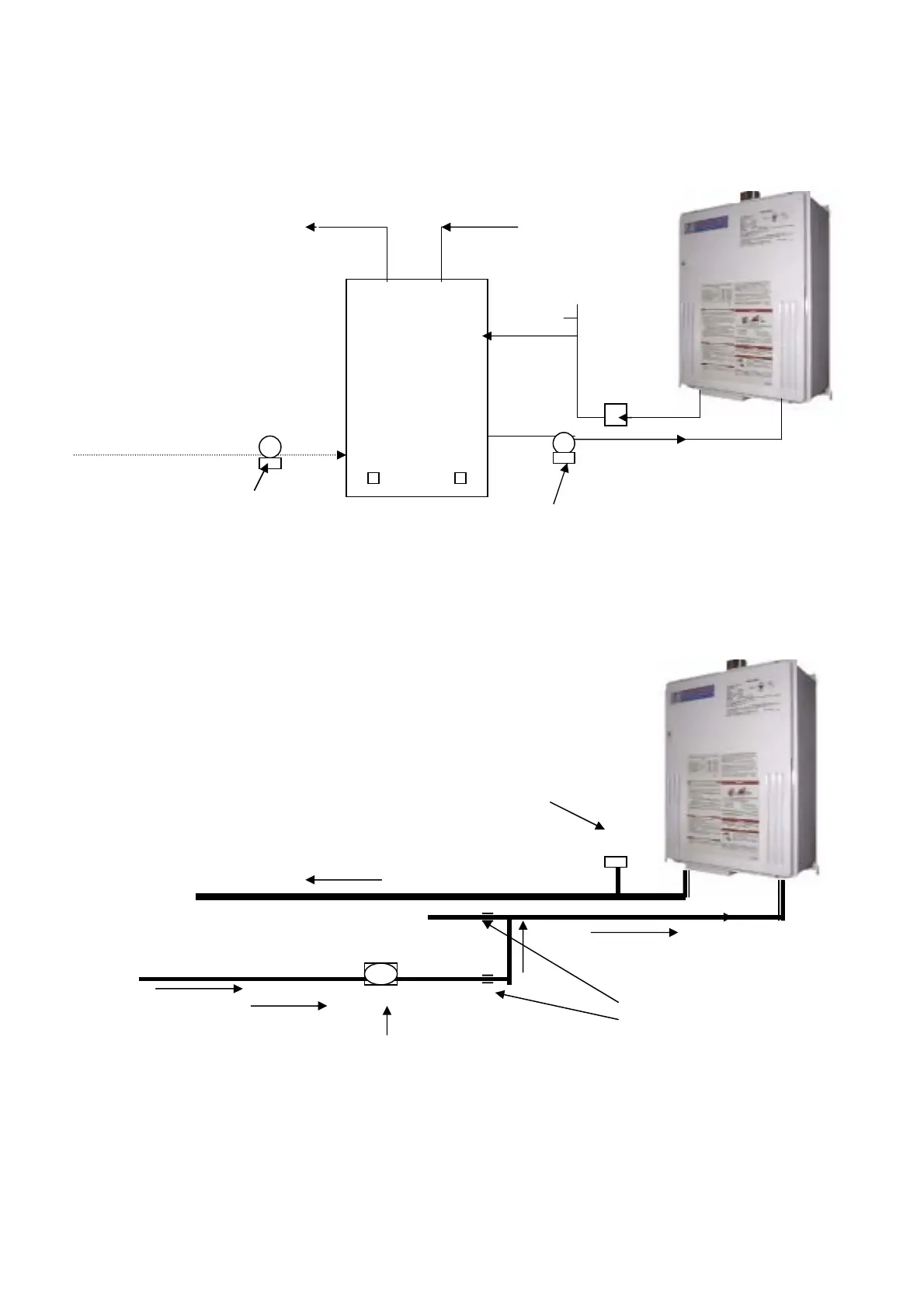

The maximum flow rate through the T-M1 is 9.6 GPM. If it is necessary to achieve higher flow
rates for longer periods of time, then it can be installed in conjunction with a storage tank. A pump will
be necessary to keep the water hot. We suggest a pump of 1/12 hp or greater depending on the
system.
Recirculation
Pressure Relief Valve
Hot Water to House
Cold inlet-------
Hot Water Return
Pump (with/without Timer) Check Valves
This system will also need a pump of 1/12 hp or greater, depending on the application situation. For
more details, contact Technical department at (888) 882-5244
