Installaon
Installaon Manual
<Forrooopterminaons>

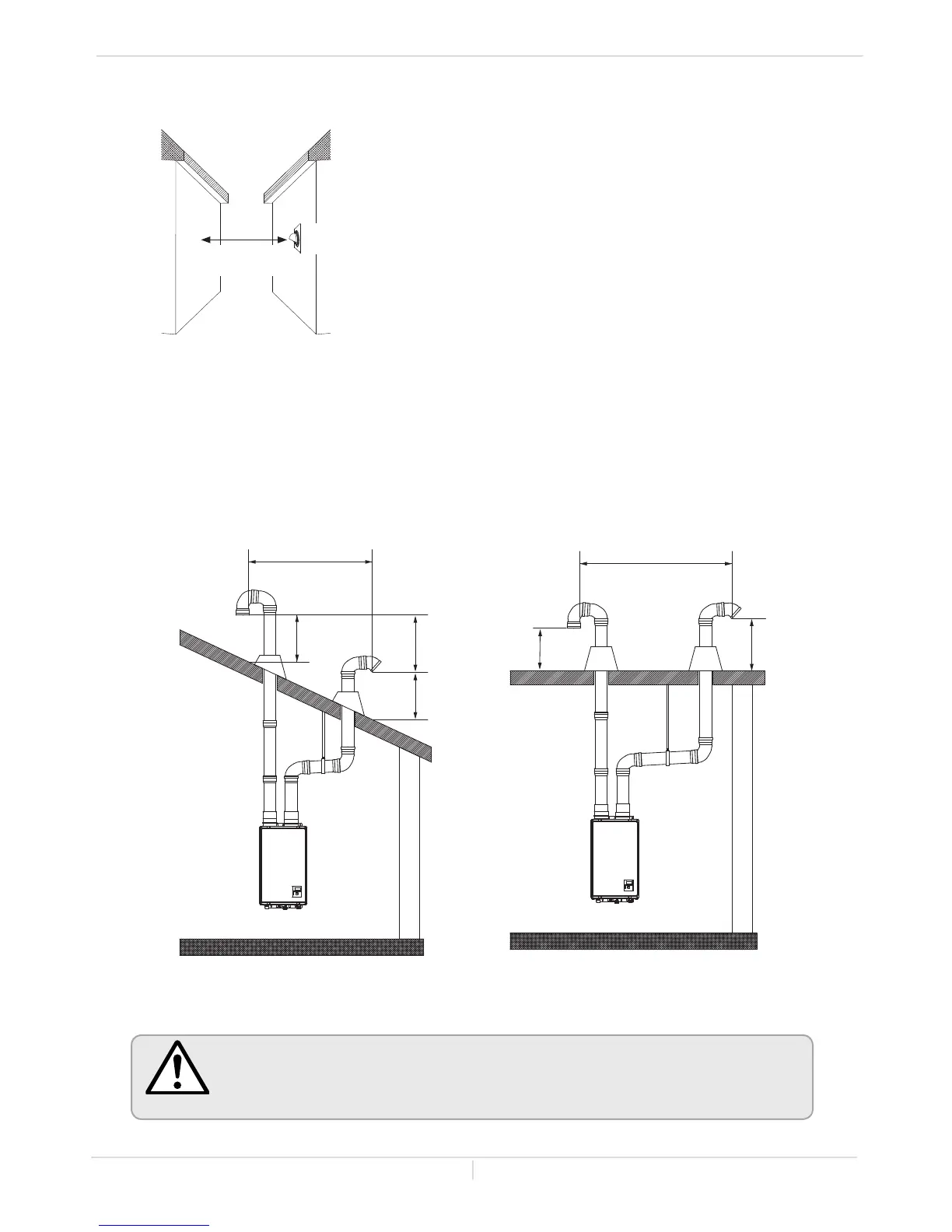

Exhaust and/or direct-vent sidewall terminations should
be at least 2 ft. (610 mm) away from an opposite surface/
wall. Do not place the termination directly in front of an
opening into a building.
Intake air
Exhaust gas
3  (914 mm) min.
B
A
2  (610 mm) min.
Intake air
B
B
A
Exhaust
Gas
A:Exhaust terminations must be at least 1 ft. (305 mm) away from any obstructions.
B:Intake terminations must be at least 1 ft. (305 mm) away from any obstructions.
Exhaust
termination
2 ft. (610 mm)
min
Please follow all local and national codes in regards to proper termination
clearances. In the absence of such codes, the clearances above can be used as
guidelines. Local codes supersede these guidelines.
CAUTION
