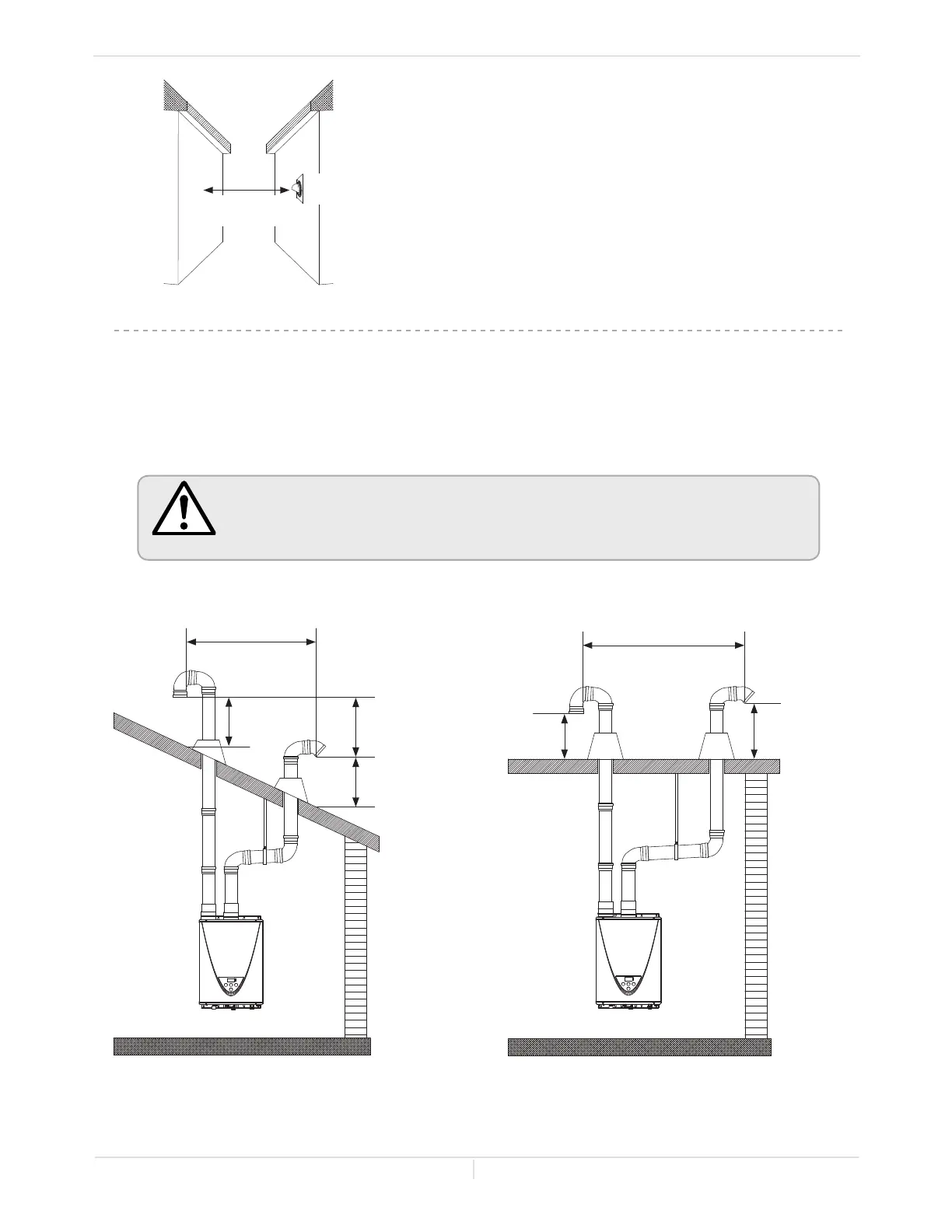

-For rooop terminaons-
3ft(914mm)min.
Exhaust gas
Intake air
1ft
(305mm)min.
1ft
(305mm)min.
2ft(610mm)min.
1ft
(305mm)min.
1ft
(305mm)min.
Intake air
Exhaust
gas
1ft
(305mm)min.
Exhaust and/or direct-vent sidewall terminations should
beatleast2ft.(610mm)awayfromanoppositesurface/
wall. Do not place the termination directly in front of an
opening into a building.
Please follow all local and national codes in regards to proper termination
clearances. In the absence of such codes, the clearances below can be used as
guidelines. Local codes supersede these guidelines.
CAUTION
Exhaustterminationsmustbeatleast1ft.(305mm)awayfromanyobstructions.
Exhaust
termination
2 ft. (610mm)
min.
Installaon Manual
Installaon
