OUTPUT TEMPERATURE CHART
Chart is based on properly sized gas line
240 (T-H3J) model
Output Temperature Chart
Owner's Guide
*Whenthesettemperatureis130°F (55°C)orhigher,maximumflowrateislimitedto8.0GPM.
Output Hot Water GPM

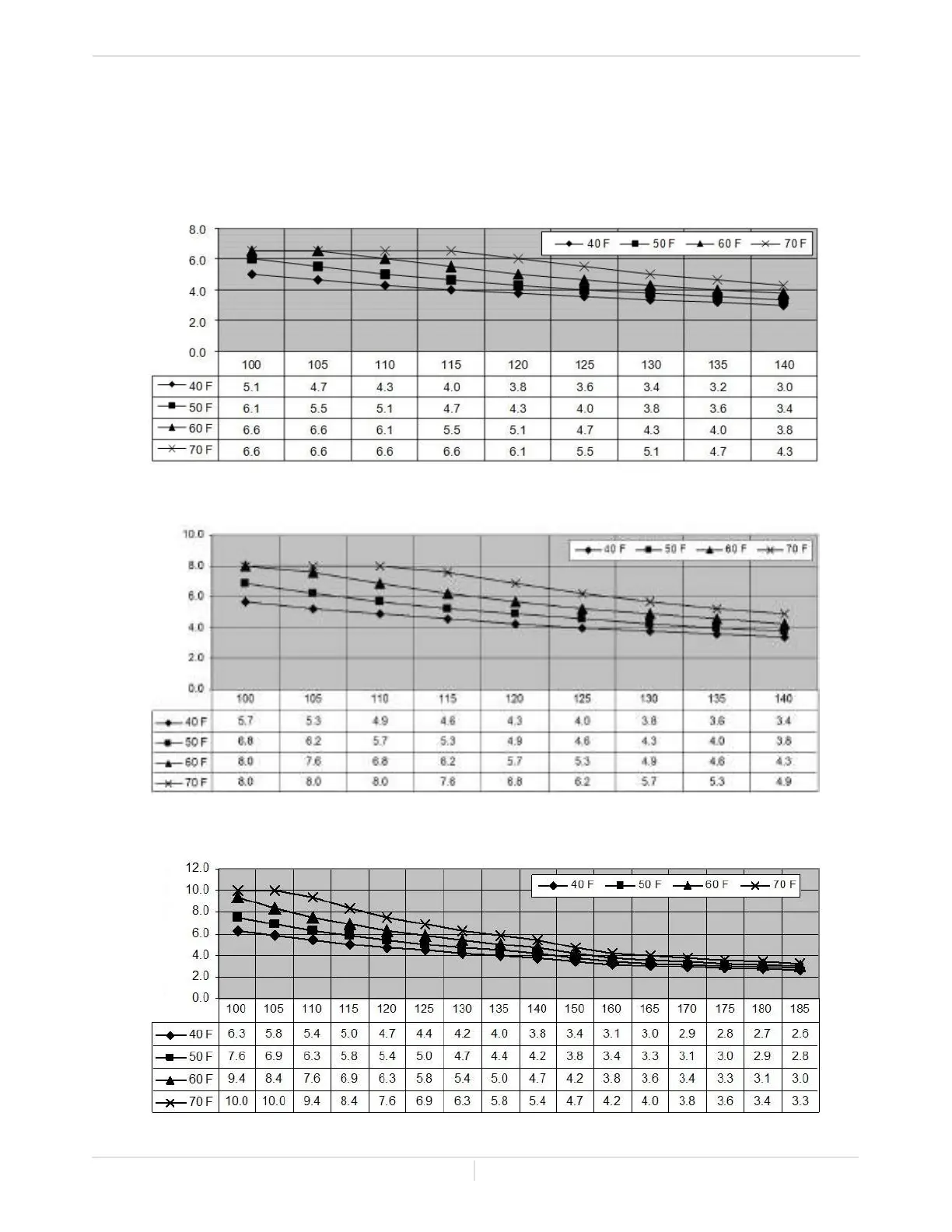

Output Temperature vs. GPM (Max. 6.6 GPM) with Various Inlet Water Temperature
Set Temp. (°F)
Incoming Temp. (°F)
540 (T-H3) model
Output Temperature vs. GPM (Max. 10.0 GPM) with Various Inlet Water Temperature
Output Hot Water GPM
Set Temp. (°F)
Incoming Temp. (°F)
340 (T-H3S) model
Output Temperature vs. GPM (Max. 8.0 GPM) with Various Inlet Water Temperature
Output Hot Water GPM
Incoming Temp. (°F)
Set Temp. (°F)
