TEMPERATURE REMOTE CONTROLLER
-Outdoor models only-
-INSTALLATION-

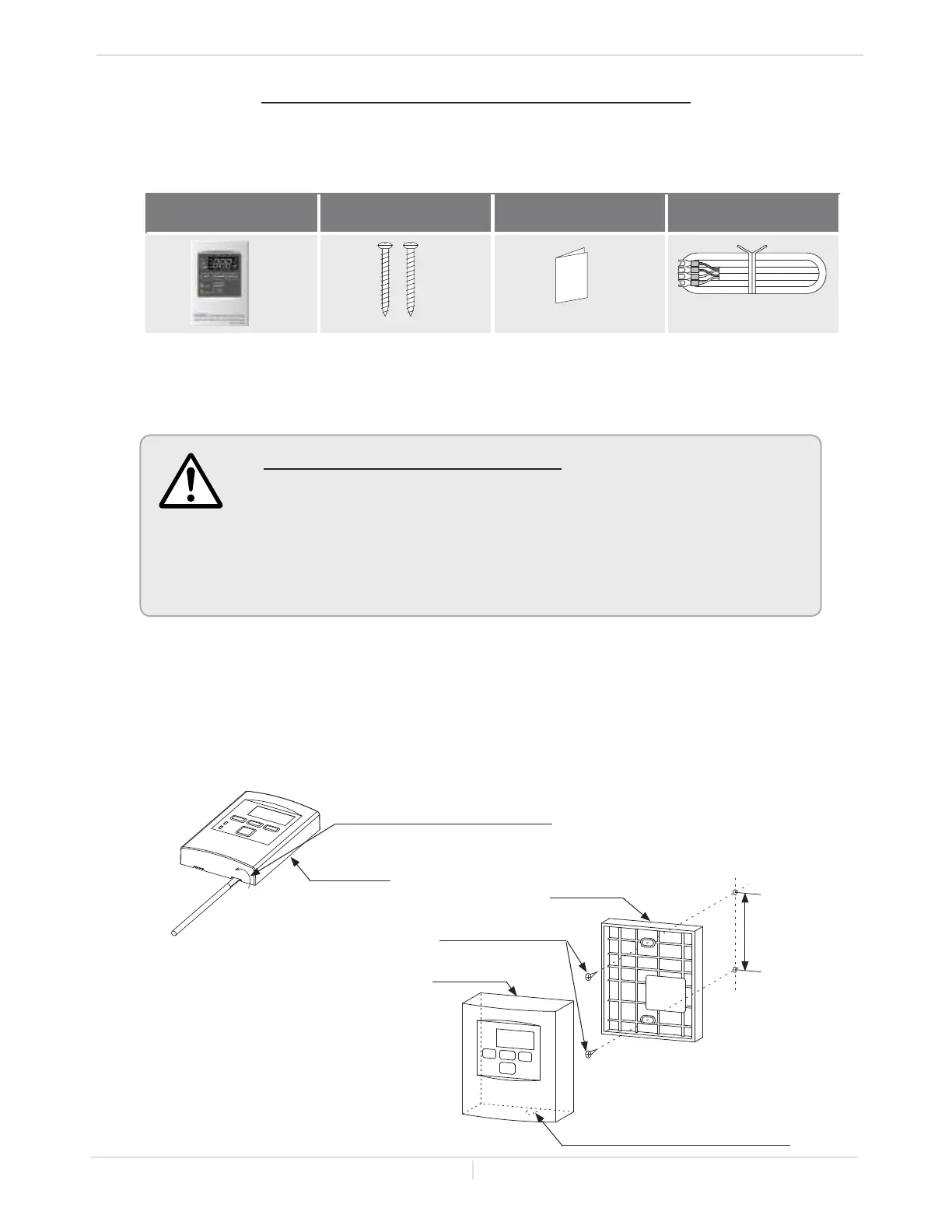

<Mounting and Wiring the Remote Controller>
1. Takeoffthe“Back plate” from the remote controller with a flat head screwdriver. (Fig. A and B)
2. Attachthe“Back plate” on the wall with the two provided screws. (Fig. B)
Installaon
Installaon Manual
Fig. B
Back plate
3-1/4inches
Attach the screws
Cut out the partition with pliers
Main body
Fig. A
Main body
Twist
Press and twist flat head
screwdriver against the cutout.
• This remote controller is NOT waterproof
Do not install in high temperature environments, steamy conditions (such as a
bathroom), outdoors, in direct sunlight, or within the reach of children.
Make sure the remote controller does not come into contact with water or oil.
• Do not place the remote control wiring close to other wires from other
products.
• Donotextendtheremotecontrolwiringmorethan400ft.(122m).
CAUTION
Check that these items below are included with the remote controller.
Temperature
remote controller
Screws Manual Remote controller cable
Qty:1 Qty: 2 Qty:1
Qty:1
