Takeuchi TB260 User Manual

2-40
CONTROLS
INSTRUMENT CLUSTER
Initial
condition
A/B common,
standard flow
Variable
range
Auxiliary 1st
No. 1
100%=57L/min
(15.1 US gpm)
10 to 100%
Auxiliary 1st
No. 2
75%=43L/min
(11.4 US gpm)
10 to 100%
Auxiliary 1st
No. 3
50%=28L/min
(7.4 US gpm)
10 to 100%
Maximum
flow rate
A/B common,
high-flow
Variable
range
Auxiliary 1st
Nos. 1, 2 and 3
180%=102L/min
(26.9 US gpm)
101 to
180%
The table shows the 1-way flow rate when
there is no load.
c. When the selection bar is at a symbol of
attachment, press the (B) key to change it
to the desired symbol.
Select the symbol representing the
attachment to be used.
d. The setting for Auxiliary 1 No. 2 and
Auxiliary 1 No. 3 can be done using the
same procedure as above.
e. Press and hold the (A) key for three
seconds or more to complete the setting
and return to the setting selection screen.
f. Press the (C) key to cancel editing and to
return to the setting selection screen.

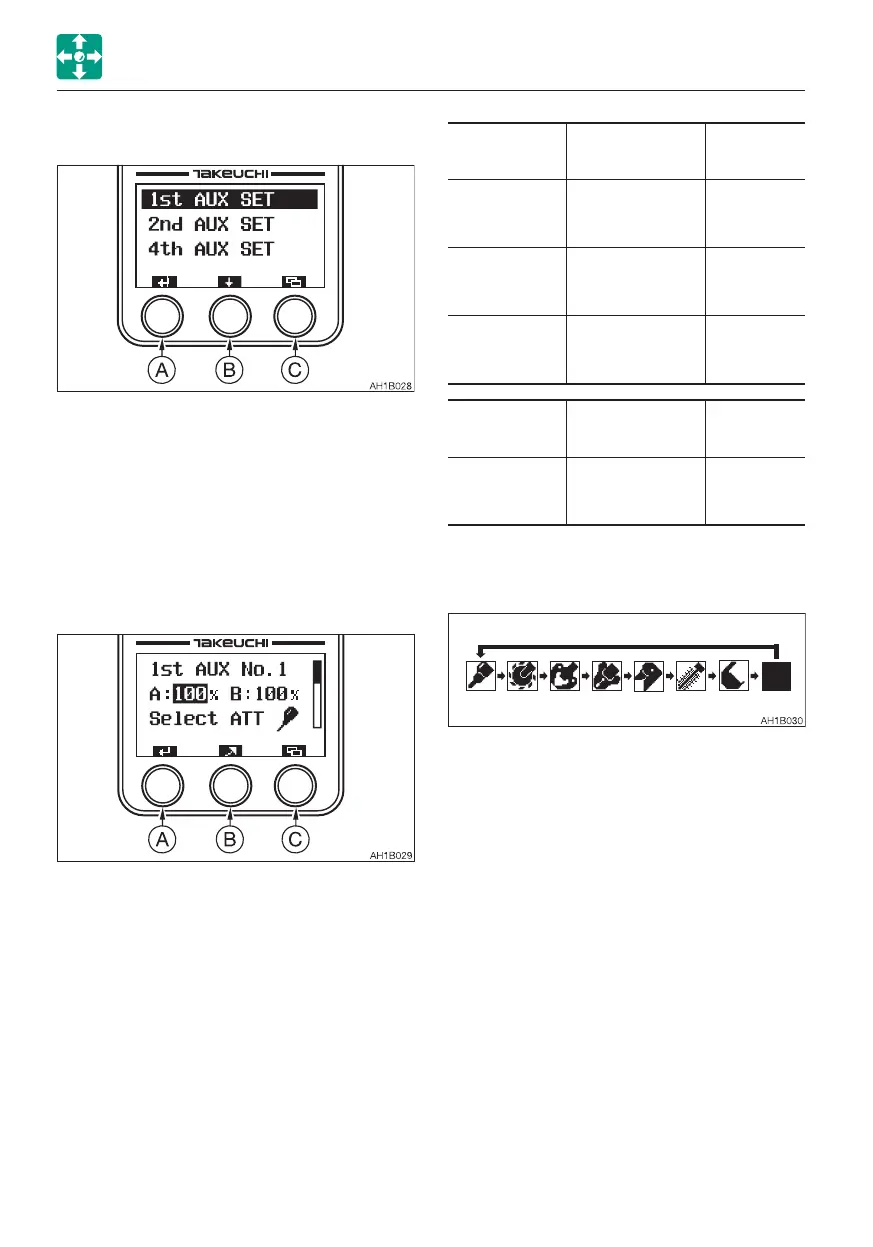

SETTING SELECTION SCREEN (SETTING)
Press the (A) key to proceed to the screen
selected by the bar.
Press the (B) key to move the selection bar.
Press the (C) key to return to the side menu
screen.
• Auxiliary 1st flow rate setting
(1st AUX SET)
Set the flow rate ratio for the No. 1, No. 2
and No. 3rd in the Auxiliary 1 circuit.
a. Pressing the (A) key in this screen moves
the selection bar and flashes the figures
on the bar.
b. Press the (B) key to increase the number
value selected.
Press and hold the (B) key for at least one
second to rapidly increase the number
value selected.
