2-19
CONTROLS

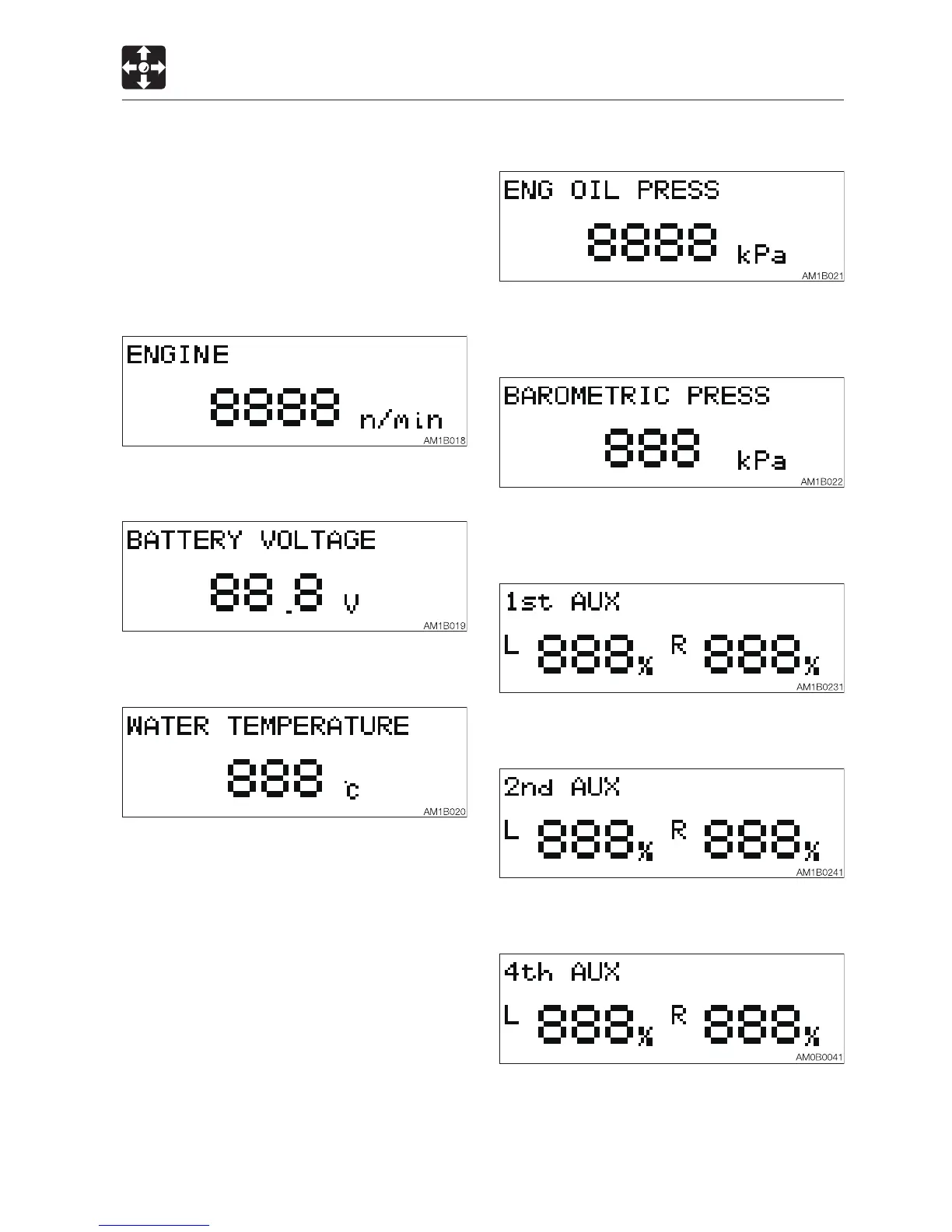

DATA MODE DISPLAY
The display changes each time the DATA (2)
side is pressed as follows:
Note that for TB285, “4. Engine oil pressure”
and “5. Atmospheric pressure” will not be
displayed.
1. Engine RPM
2.
Battery voltage
3.
Coolant temperature
4.
Engine oil pressure
Displays when the machine is TB290.
5.
Atmospheric pressure
Displays when the machine is TB290.
6.
Auxiliary 1st flow rate
7.
Auxiliary 2nd flow rate
8.
Auxiliary 4th flow rate
INSTRUMENT CLUSTER
9. Returns to the engine RPM page.
