CONTROLS

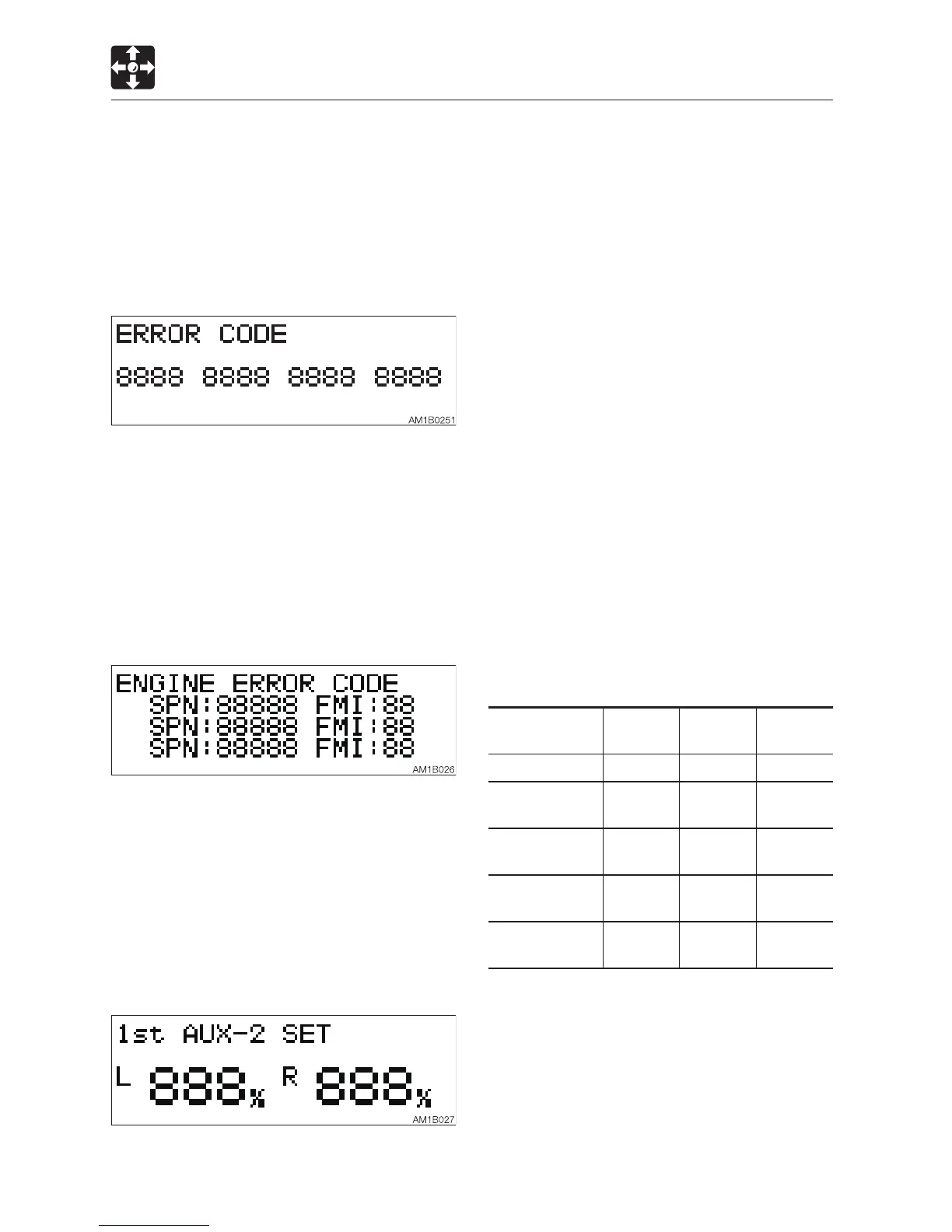

MAINTENANCE MODE DISPLAY
While in the data mode, press and hold the
DATA (2) side for three seconds to enter the
maintenance mode.The display changes
each time the DATA (2) side is pressed as
follows:
1. Vehicle error code
INSTRUMENT CLUSTER
IMPORTANT: If an error code appears,
immediately stop the operation and
contact your sales or service dealer for
help.
Displays two three or four-digit error codes,
with the latest code in the left.
Refer to “Vehicle error code list” on page
6-12.
2. Engine error code
IMPORTANT: If an error code appears,
immediately stop the operation and
contact your sales or service dealer for
help.
Displays three error codes, with the latest
code at the top.
Refer to “Engine error code list” on page
6-14.
3.
Auxiliary 1st-2 setting information
The electric current value in the solenoid
that controls the auxiliary flow rate is
displayed.
The flow rate, except the flow rate of the
auxiliary 1st-1, can be changed when the
engine is at rest and the starter switch is
set to ON.
 Theactualowrateisnotinconjunction
with the value expressed in percent.
For setting the auxiliary piping flow rate,
ask your service or sales dealer.
Changing flow rate
a. Raise the safety lock lever to the lock
position.
b. Press and hold the auxiliary flow rate
select switch for approximately three
seconds to cause the values displayed
ontheLsidetoash.
c. Pressing the TRIP side of the Trip/Data
switch decreases the flow rate by 5%.
Pressing and holding it for one second
decreases the flow rate by 5%.
Pressing the DATA side of the Trip/Data
switch increases the flow rate by 5%.
Pressing and holding it for one second
increases the flow rate by 5%.
Initial
condition
L R
Variable
range
Auxiliary 1st-1 100% 100% —
Auxiliary 1st-2 75% 75%
10 to
100%
Auxiliary 1st-3 50% 50%
10 to
100%
Auxiliary 2nd 100% 100%
10 to
100%
Auxiliary 4th 100% 100%
10 to
100%
The table shows the electric current values.
d.
Press the auxiliary flow rate select
switch to confirm. At this time, the
values on the R side start flashing.
Perform
thesameoperationasfortheL
side. The section to be set changes
each time the auxiliary flow rate select
switch is pressed.
