CONTROLS
OTHER DISPLAY

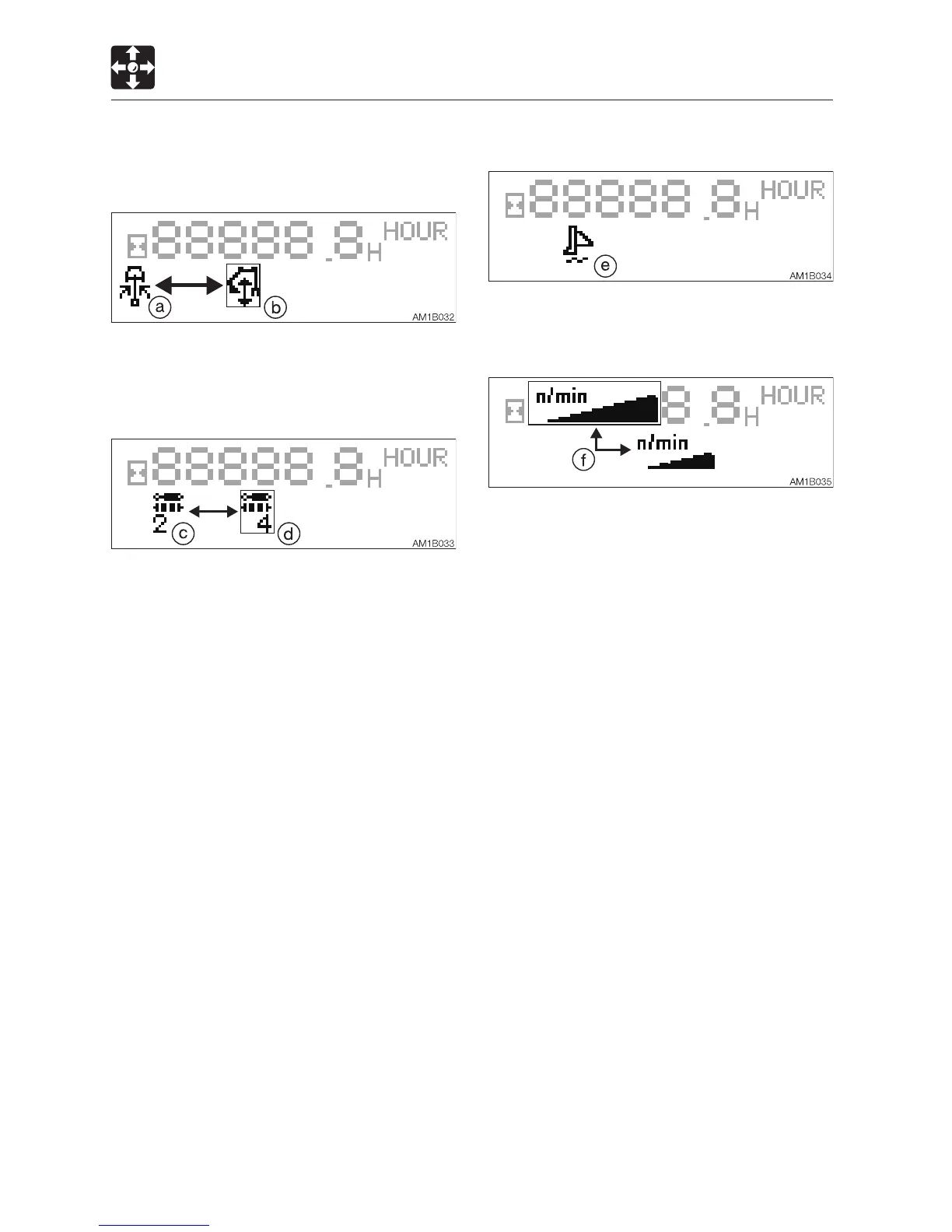

1. Swing/Second boom display
INSTRUMENT CLUSTER
a: Swing is selected.
b: Second boom is selected.
2. Auxiliary 2/4 display
c: Auxiliary 2nd is selected.
d: Auxiliary 4th is selected.
Note: If there is no setting for the auxiliary
4th, the auxiliary 2nd will not be displayed.
3. Blade float display
e: Blade float is selected.
4. Engine RPM display
f: The graph changes as the engine RPM
changes.
