3-16
OPERATION

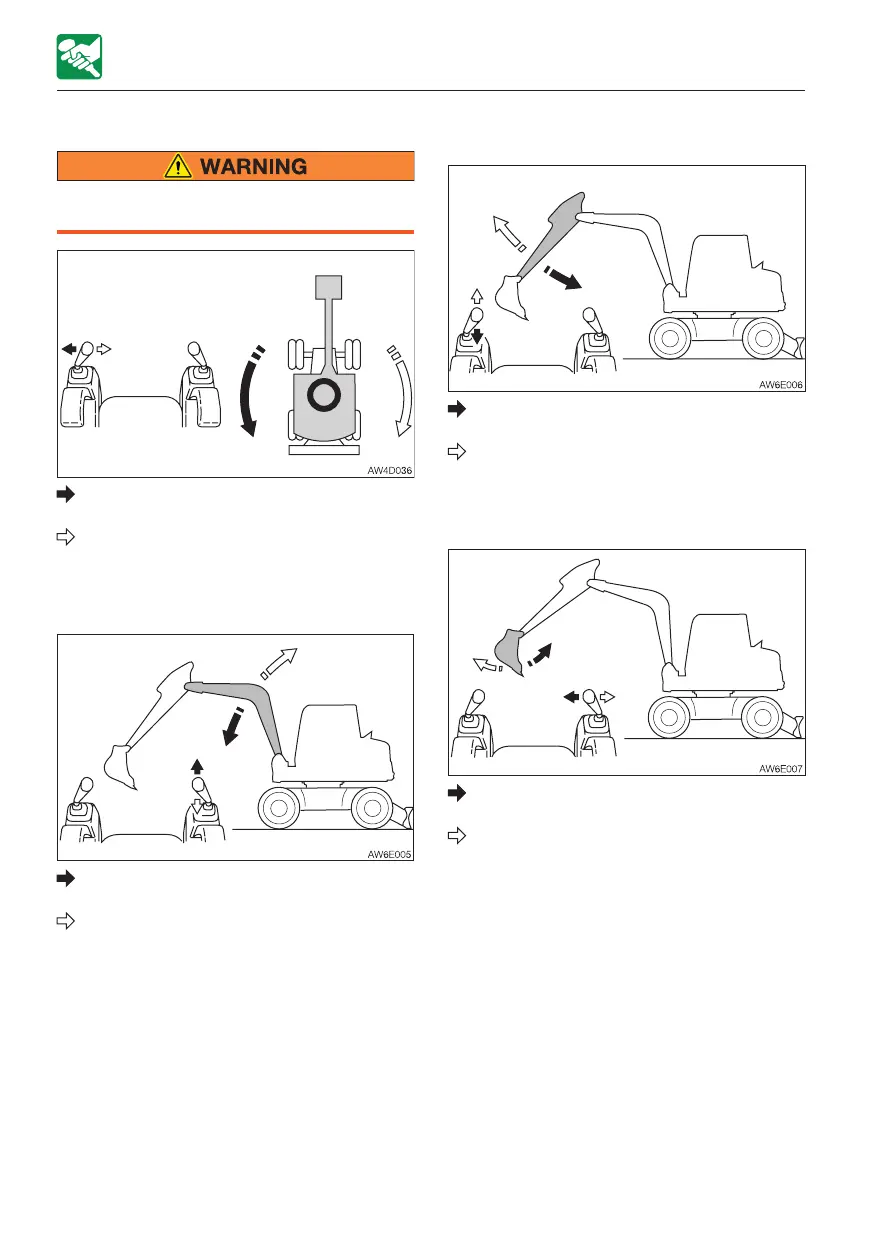

OPERATING THE MACHINE
Upperstructure slew left:
Tilt the left operating lever to the left.
Upperstructure slew right:
Tilt the left operating lever to the right.
Operating the boom
Boom lower:
Tilt the right operating lever forward.
Boom raise:
Tilt the right operating lever backward.
Bucket load:
Tilt the right operating lever to the left.
Bucket dump:
Tilt the right operating lever to the right.
Arm in:
Tilt the left operating lever backward.
Arm out:
Tilt the left operating lever forward.
Operating the bucket
Slewing
Check the surrounding area for safety
before slewing.
Operating the arm
